276 Rockwell Automation Publication 2080-UM002K-EN-E - March 2019
Appendix C Quickstarts
1. Start a new project following the same steps and values as the previous
project. Set the values for the following variables as follows:
• HSCAPP.PlsEnable variable should be set to TRUE
• Set a value only for UFSetting and OFSetting (OutputMask is optional
depending if an output is to be set or not). Your new values should

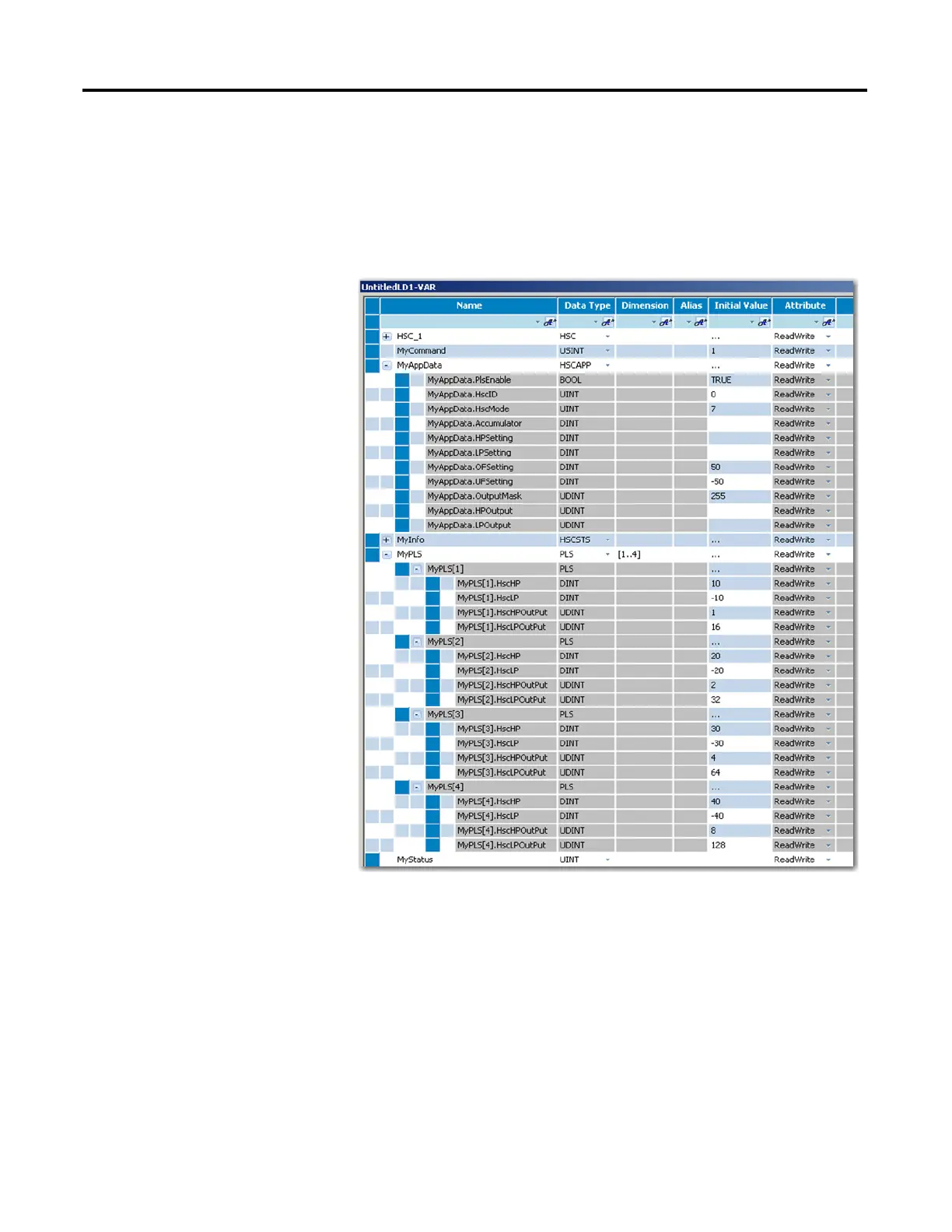

follow the example below:
In this example, the PLS variable is given a dimension of [1..4]. This means
that the HSC can have four pairs of High and Low Presets.
Once again, your High Presets should be set lower than the OFSetting and
the Low Preset should be greater than the UFSetting. The HscHPOutPut
and HscLPOutPut values will determine which outputs will be turned on
when a High Preset or Low Preset is reached.
2. You can now build and download the program into the controller then
debug and test it following the instructions for the last project.
