280 Rockwell Automation Publication 2080-UM002K-EN-E - March 2019

Appendix C Quickstarts

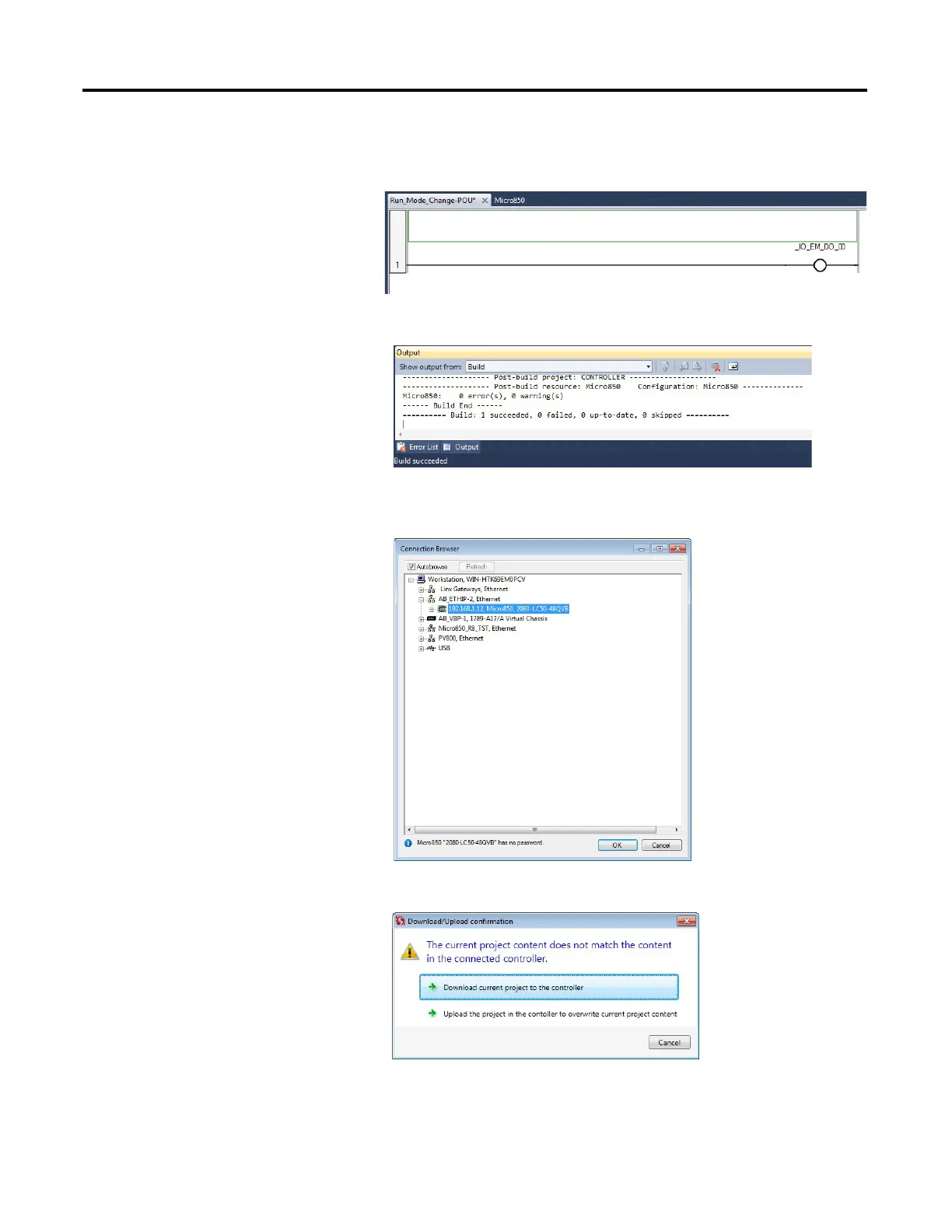

4. Double -click the newly added Direct Coil to bring up the Variable

Selector dialog and select “_IO_EM_DO_00”.

5. Build the project.

6. Download the project to the controller.

In the Connection Browser dialog, select the Micro850 controller.

7. Select Download current project to the controller.
