Chapter 3 Install Your Controller

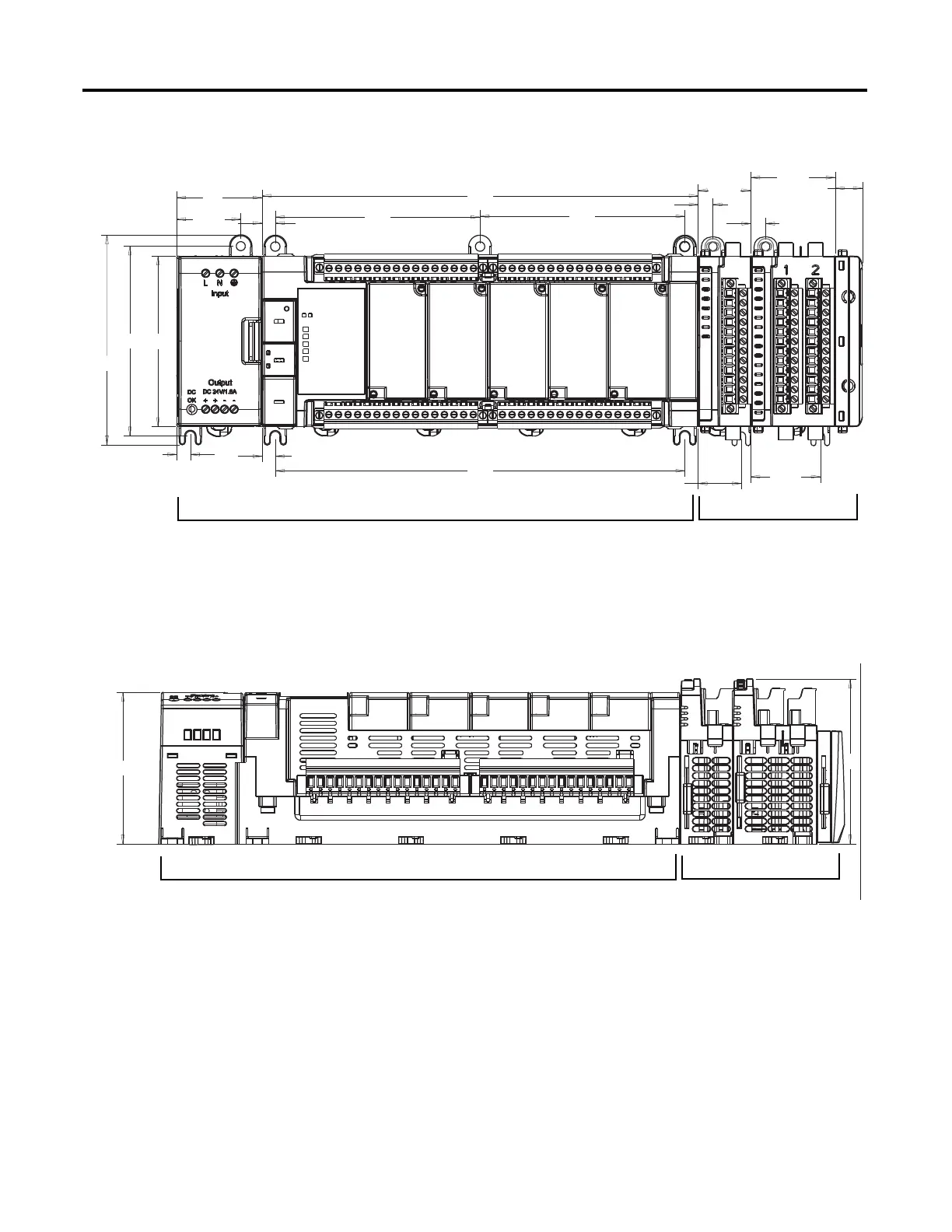

Micro830 and Micro850 48-point Controllers (Front)
Micro830 and Micro850 48-point Controllers (Side)
45
33.8
7.2
7
108
108
230
7.8
27.8
7.8
44.4
14.4
216
7
22.8
36.6
90
100.1
110.8
Expansion I/O Slots
(Applicable to Micro850 only)
Single-width (1st slot)
Double-width (2nd slot)
2085-ECR (terminator)
Micro830/Micro850 48pt Controller with Micro800 Power Supply
Measurements in millimeters
80
87
Expansion I/O Slots
(Applicable to Micro850 only)
Single-width (1st slot)
Double-width (2nd slot)
2085-ECR (terminator)
Micro830/Micro850 48pt Controller with Micro800 Power Supply
Measurements in millimeters
