RJ45 DSI Splitter Cable D-3
PowerFlex 4M Adjustable Frequency Drive FRN 1.xx - 2.xx User Manual
Publication 22F-UM001D-EN-E

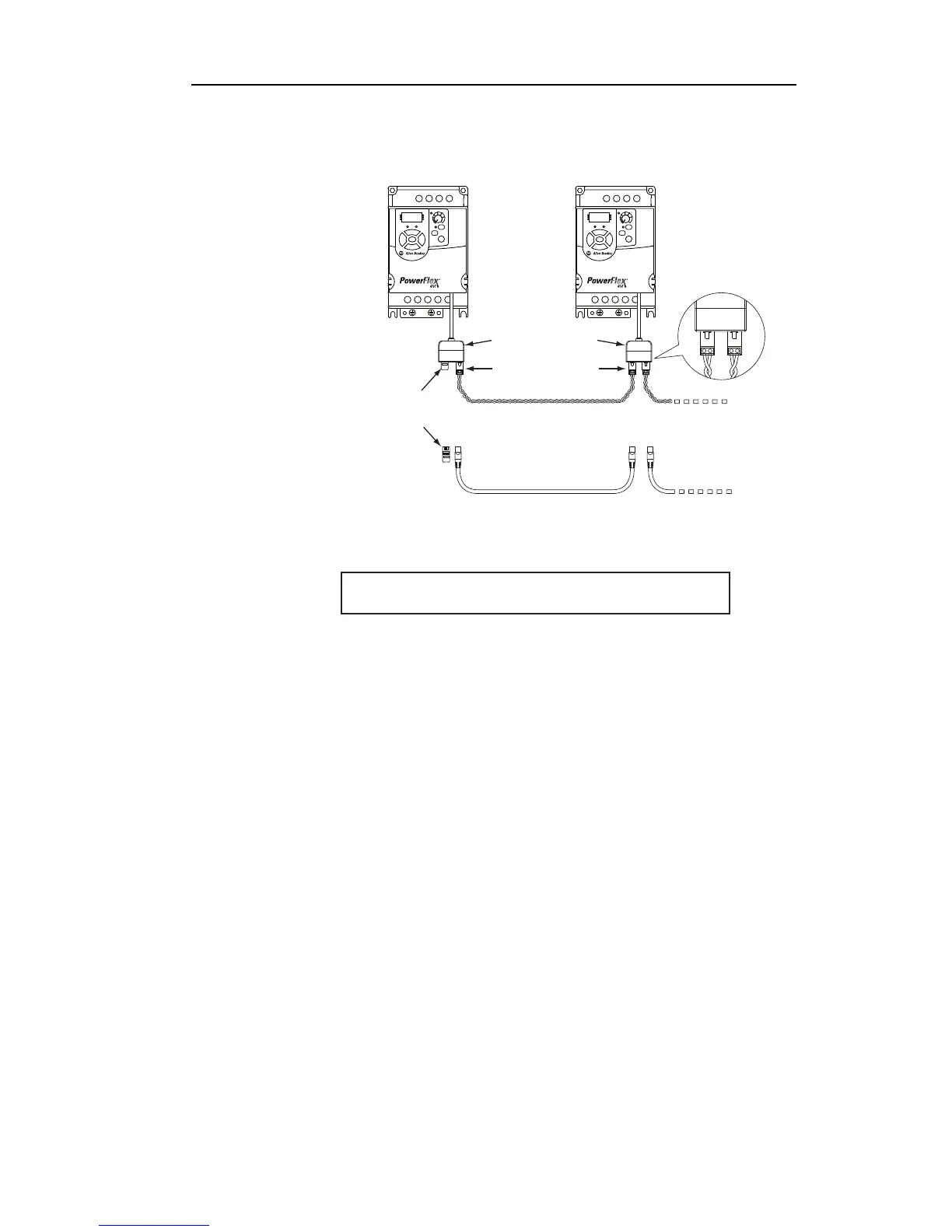

Connecting an RS-485 Network
AK-U0-RJ45-TR1
Terminating Resistor
(end of network)
DSI Drives
or
or
Customer supplied RJ45 male-to-RJ45 male
cables with wires connected at pins 4 and 5 only.
Both the Master (M) and Slave (S) ports on the RJ45 Splitter
Cable operate as standard RS-485 ports in this configuration.
AK-U0-RJ45-TB2P
Two-position Terminal Block
AK-U0-RJ45-SC1

Allen-Bradley PowerFlex 4M Specifications

General

Input Voltage	200…240V AC, 380…480V AC, 500…600V AC
Output Voltage	0-Input Voltage
Control Method	Sensorless Vector
Communications	RS-485
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Enclosure	IP20
Operating Temperature	-10°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	5-95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
