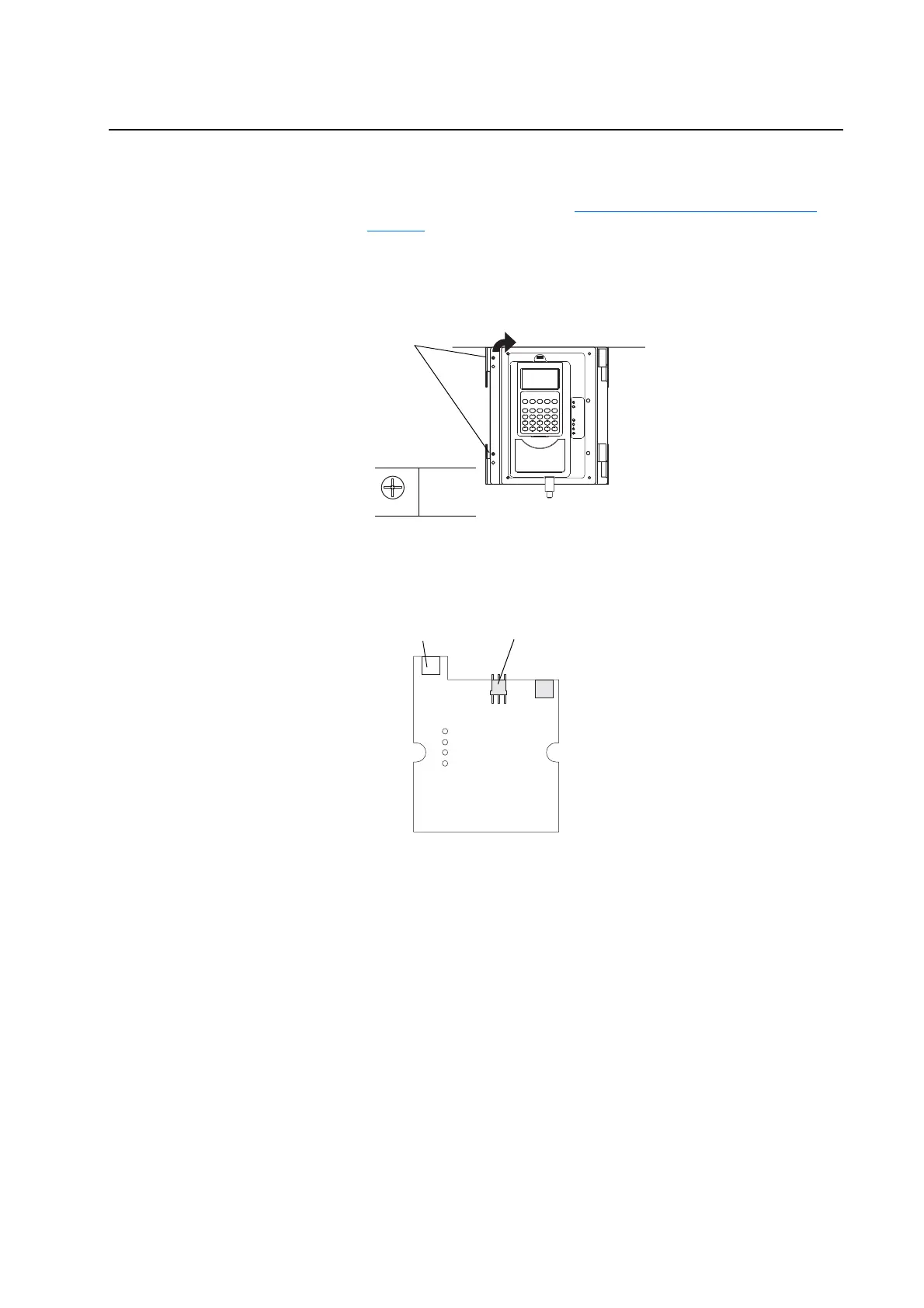

Access Procedures 3-5
Removing the DPI / HIM
Assembly
Removal
1. Remove power from the drive (Removing Power from the Drive on
page 3-3).
Important: Before removing connections and wires, mark the connections
and wires to avoid incorrect wiring during assembly.
2. Remove the two screws from front of DPI / HIM assembly.
3. Open the door, which holds the DPI interface and HIM.
4. Unplug the DPI cable from X2 connector on the DPI Interface Circuit
Board.
5. On 700S drives only, unplug the cable from X4 connector on the circuit
board.
6. Remove the four mounting screws and the assembly from the Control
Screws
P1
0.9 N-m
(8 lb.-in.)
Back view of DPI
X4
X2
Circuit Board which
should remain mounted
on the back of
the assembly
