Access Procedures 3-35

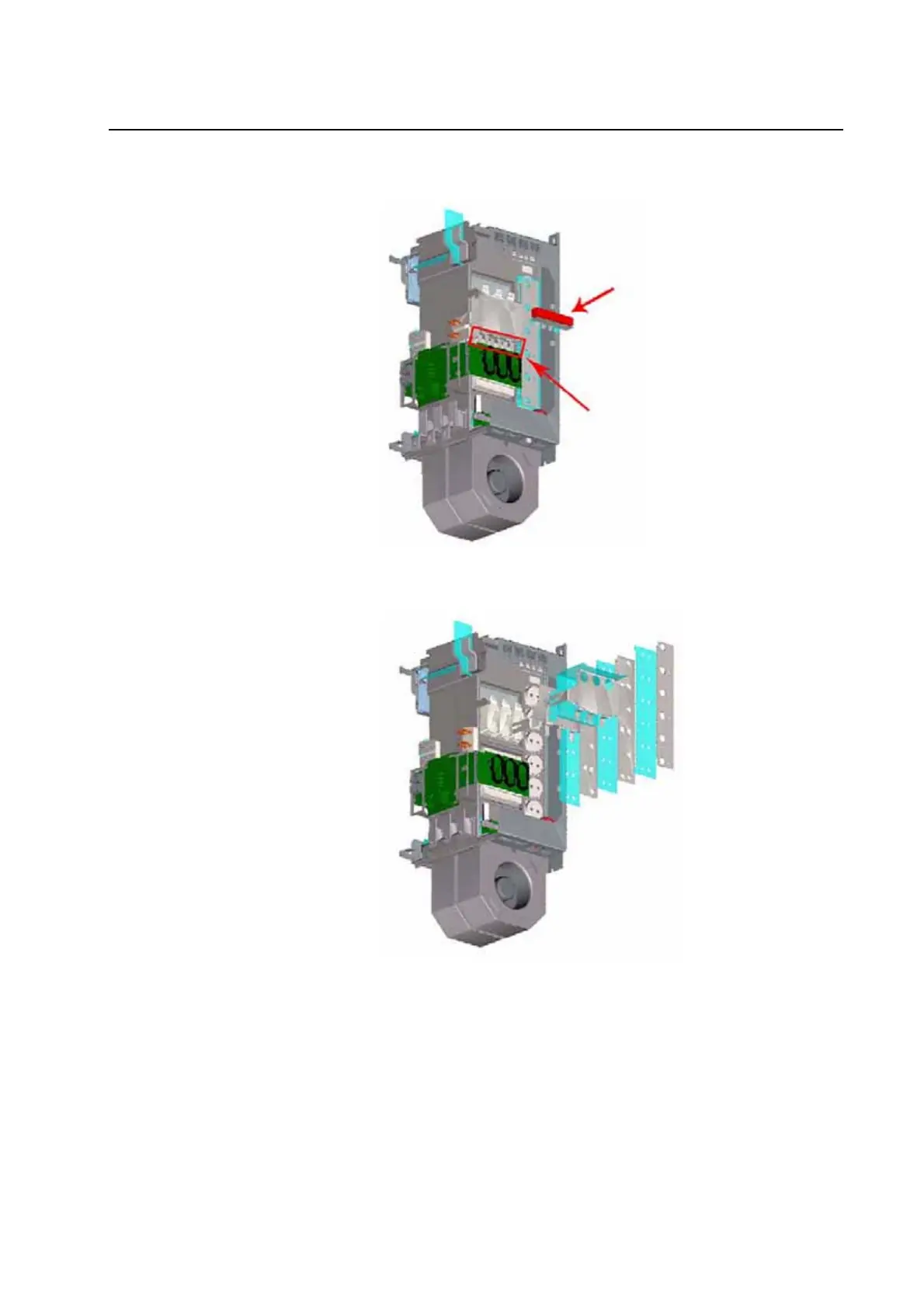

13. Remove the screws that secure the Snubber Capacitors, and remove the
Snubber Capacitors.
14. Remove the screws that secure DC Bus Bars to right side of power
structure, and remove the DC Bus Bars.
Snubber Capacitors
Snubber Capacitor
Fastening Screws
