Allen-Bradley PowerFlex 755 Reference Manual

Integrated Motion on the EtherNet/IP Network
Chapter 1
Rockwell Automation Publication MOTION-RM003I-EN-P - February 2018 17
The Control Modes are:
• B - Bus Power Converters (No Control Mode, No Control Method)
• E - Encoder, Feedback Only (No Control Mode, No Control Method)
• P - Position Control Mode
• V - Velocity Control Mode
• T - Torque Control Mode
• F - Velocity Control Mode
Control Nomenclature
Linear and rotary control applications can affect the control nomenclature. While
rotary applications speak of torque and inertia, linear applications speak of force
and mass. When we refer to rotary nomenclature, the defined behavior can
generally be applied to linear applications by substituting the terms, force for
torque and mass for inertia. With that understanding, we use torque rather than
force in the control mode diagrams without loss of generality.
See also
Position Control Mode on page 17
Velocity Control Mode on page 18
Torque Control Mode on page 20
No Control Mode on page 21

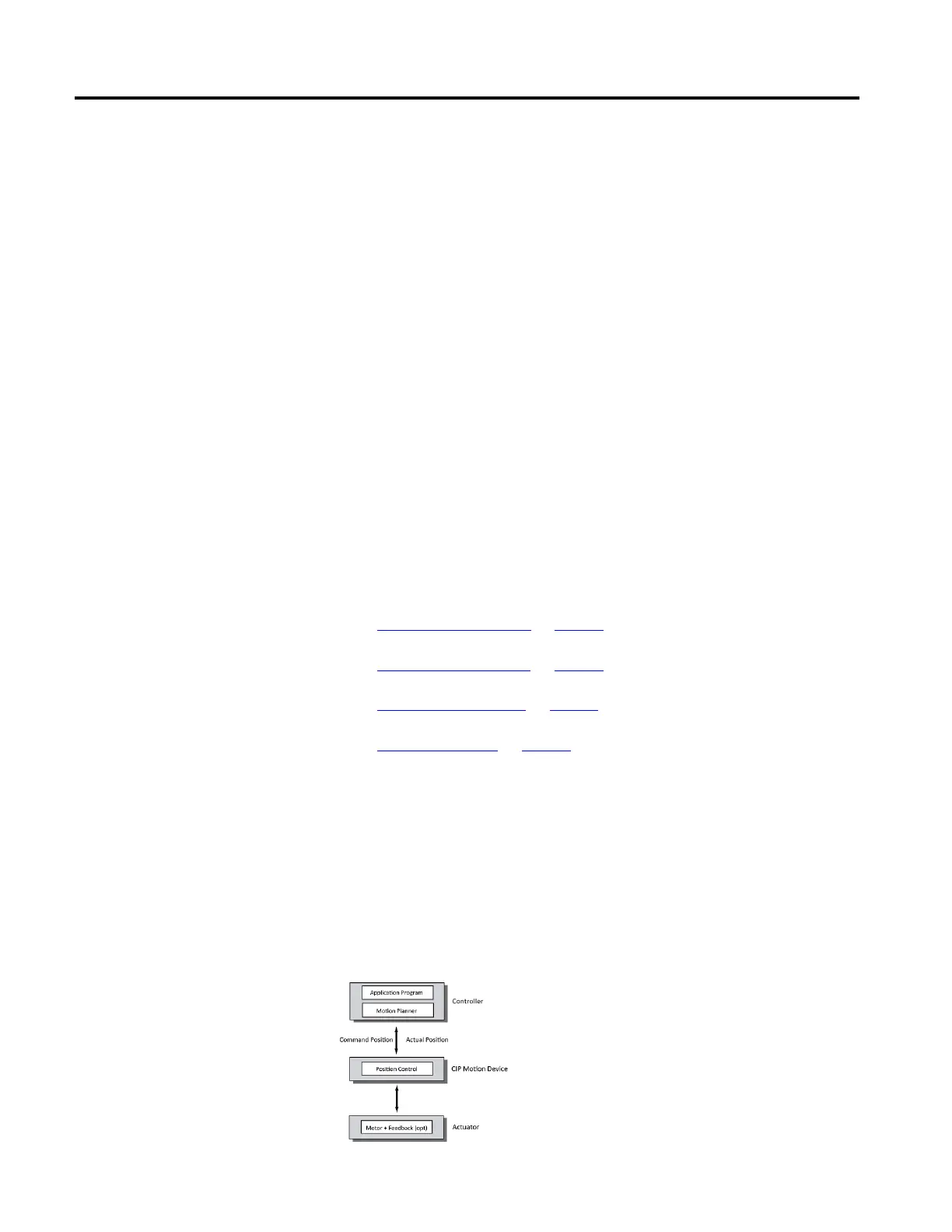

In Position Control application mode either the application control program
(command execution function) or the motion planner (move trajectory control
function) provide a setpoint value to the CIP Motion device using the cyclic data
connection. The Position Control method can be either open loop or closed loop.
Open Loop Position Control Method
A device configured for open loop position control applies to a class of drive
devices called stepper drives. This type of drive is illustrated below.
Position Control Mode

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
