Behavior models used in CIP Motion
26 Rockwell Automation Publication MOTION-RM003I-EN-P - February 2018

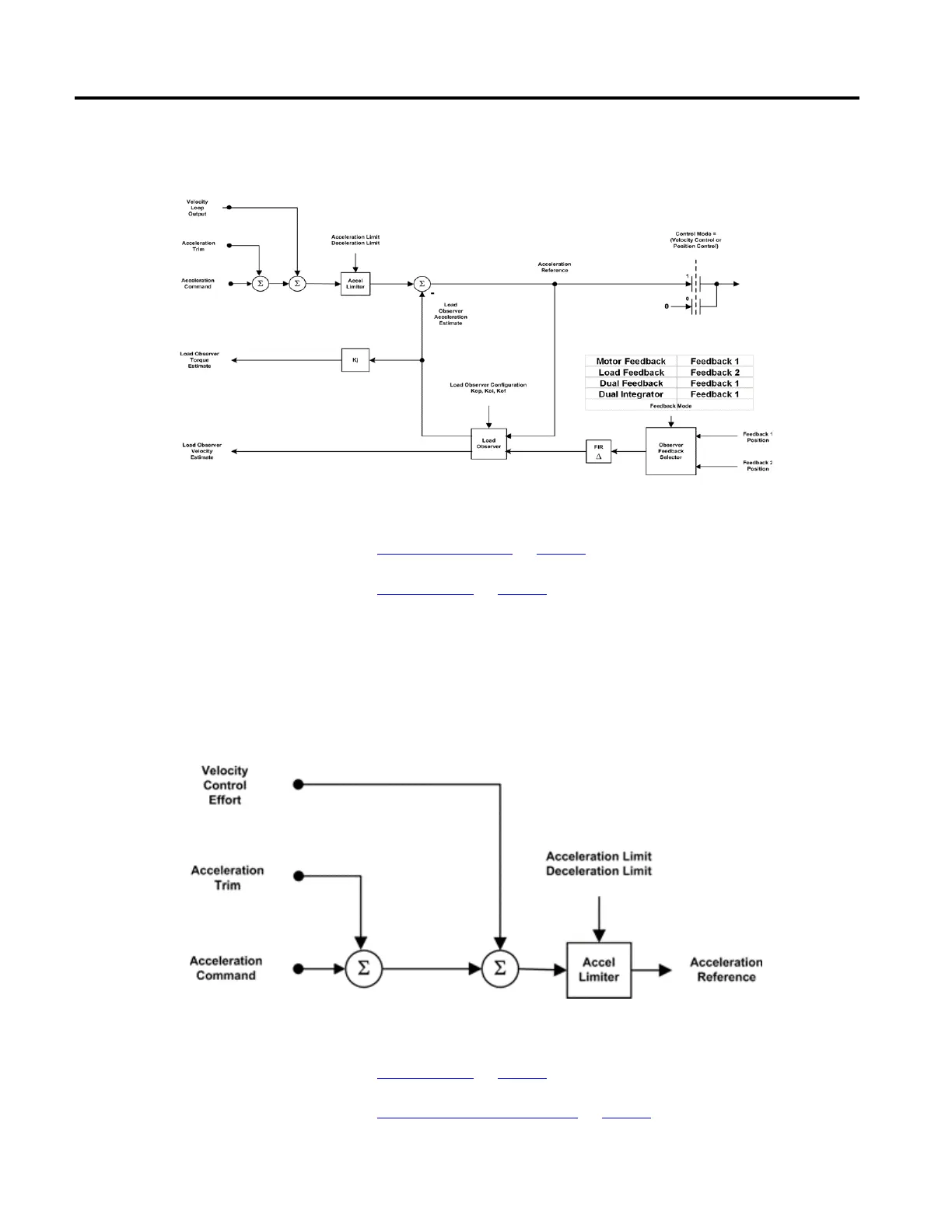

The following diagram provides an overview of the Acceleration Control behavior
model, including the Load Observer.
See also
Acceleration Limiter on page 26
Load Observer on page 27
The output of the acceleration command summing junction signal passes through
a limiter to produce the Acceleration Reference signal. The Accel Limiter applies a
directional acceleration limit, either the Acceleration Limit or the Deceleration
Limit, to the input command signal based on the sign of the signal.
The following diagram illustrates this process.
See also
Load Observer on page 27
Acceleration Control Behavior on page 25
Acceleration Limiter

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
