Multi-Axis Coordinated Motion Instructions

Chapter 6

Rockwell Automation Publication MOTION-RM002H-EN-P-February 2018 479

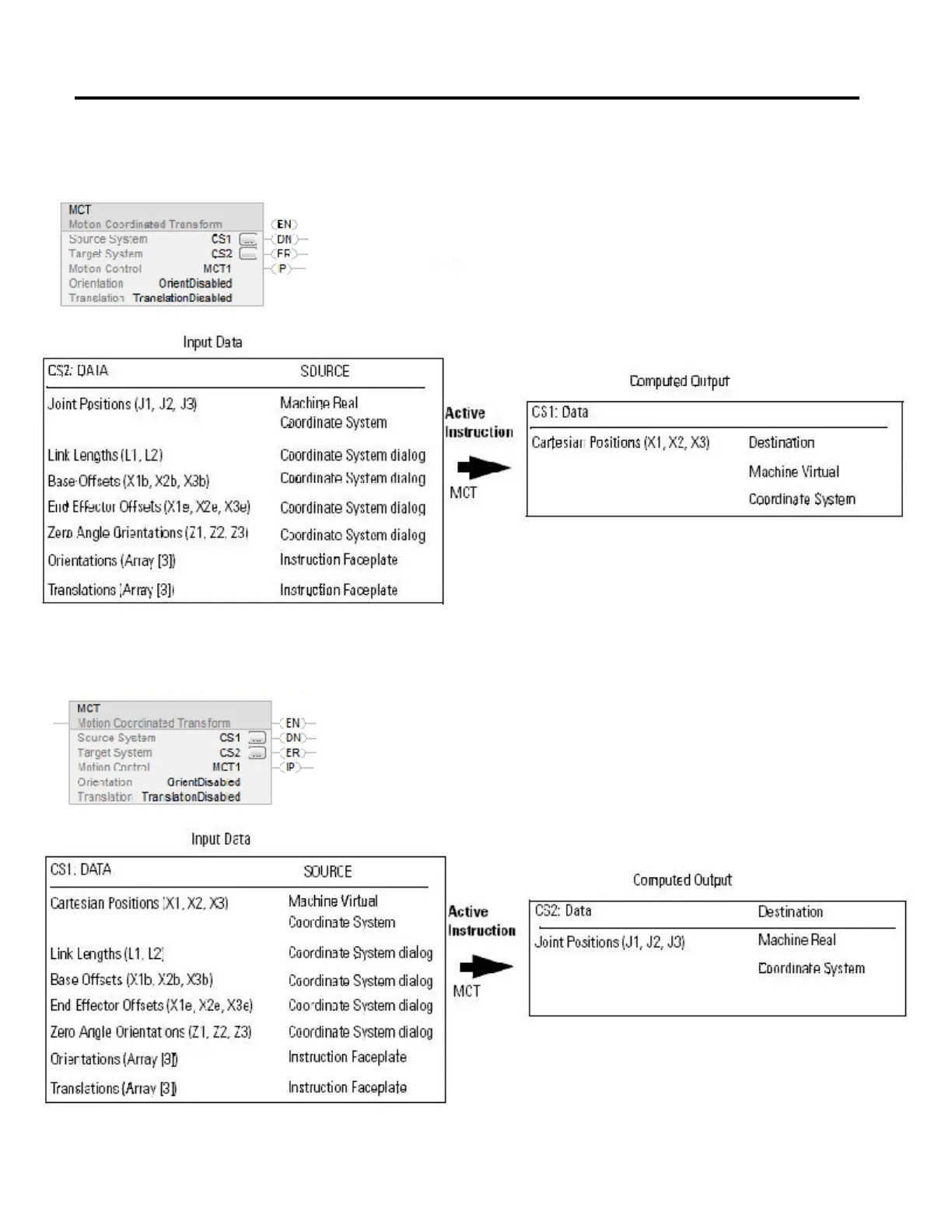

Data Flow When a Move is executed with an MCT Instruction - Forward

Transform

Data Flow When a Move is Executed with an MCT Instruction - Inverse

Transform
