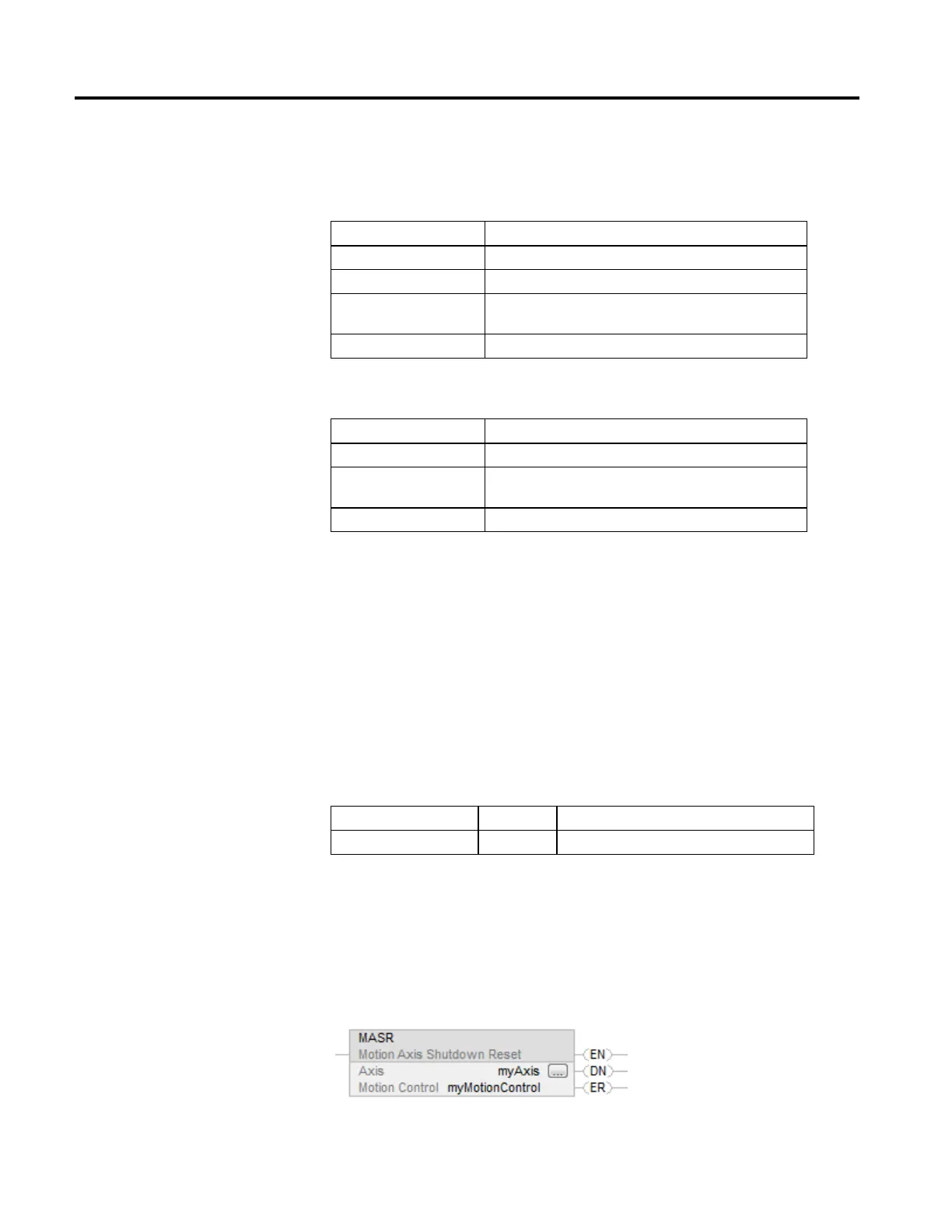

Motion State Instructions
48 Rockwell Automation Publication MOTION-RM002H-EN-P-February 2018
Execution
Ladder Diagram
Condition/State Action Taken
Prescan The .EN, .DN, and .ER are cleared to false.
Rung-condition-in is false The .EN bit is cleared to false if the .DN or .ER bit is true.
Rung-condition-in is true The .EN bit is set to true and the instruction executes. If the .EN bit is set
to false, no action is taken.
Postscan N/A
Structured Text
Condition/State Action Taken
Prescan See Prescan in the Ladder Diagram table
Normal execution See Rung-condition-in is false, followed by rung is true in the Ladder
Diagram table.
Postscan See Postscan in Ladder Diagram table.
Error Codes
See Motion Error Codes (.ERR) for Motion Instructions.
Extended Error Codes
Extended Error Codes provide additional instruction specific information for the
Error Codes that are generic to many instructions. See Motion Error Codes (.ERR)
for Motion Instructions.
Status Bits
Bit Name State Meaning
ShutdownStatus FALSE The axis is not in the shutdown state.
Examples
When the input conditions are true, the controller resets axis1 from a previous
shutdown operating state into an axis ready operating state.
Ladder Diagram
