Floor Mounting Layout

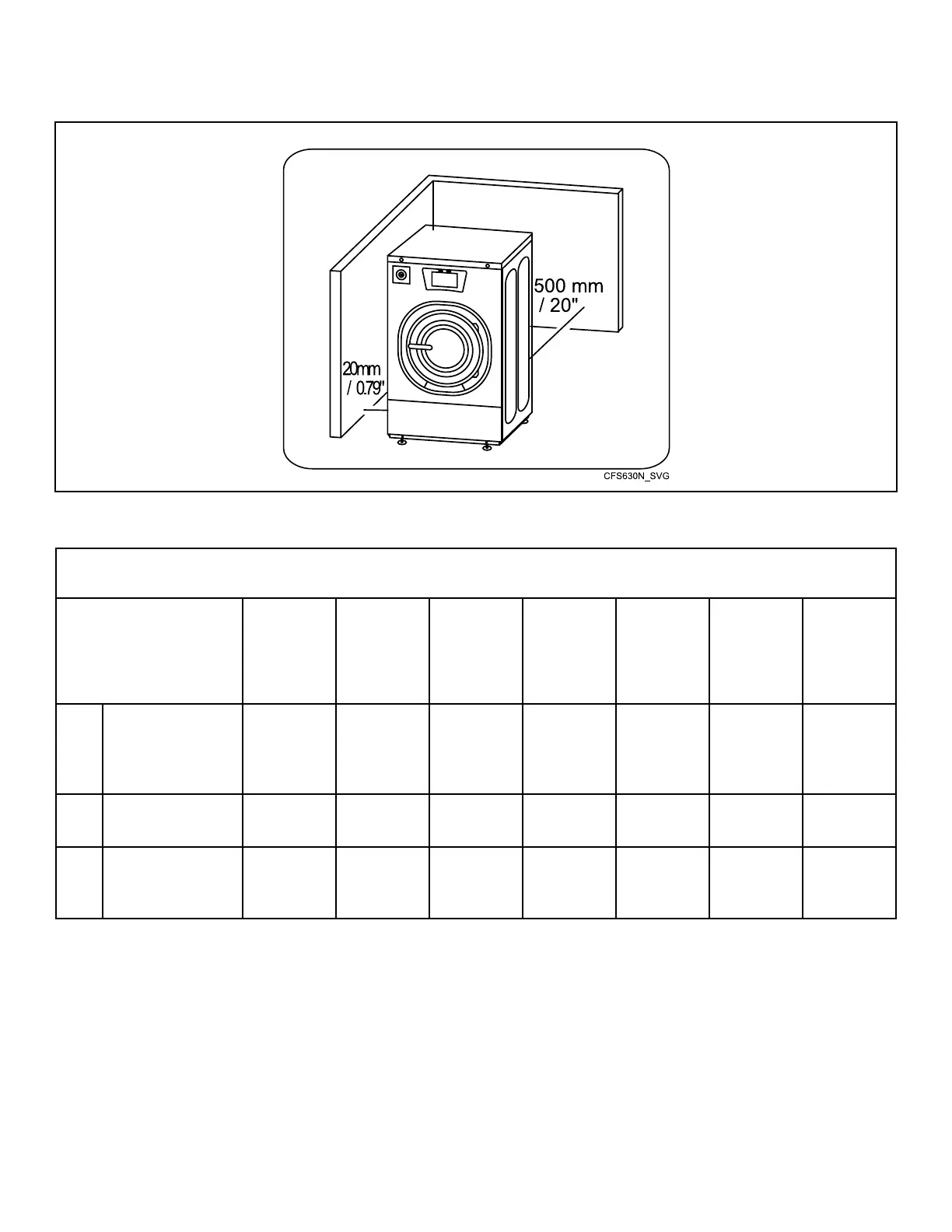

Dimensional Clearances
Figure 9
Dimensional Clearances, in. [mm]
Models
6.5 kg/
14 lb./
65 L
7.5 kg/
20 lb./
10.5 kg/
25 lb./
105 L
13.5 kg/
30 lb./
135 L
18 kg/
40 lb./
180 L
24 kg/
55 lb./
240 L
28 kg/
70 lb./
280 L
A Distance of ma-
chine to side wall
or other machine
(minimum)
0.79 [20] 0.79 [20] 0.79 [20] 0.79 [20] 0.79 [20] 0.79 [20] 0.79 [20]
B Distance to wall
(minimum)
20 [500] 20 [500] 20 [500] 20 [500] 20 [500] 20 [500] 20 [500]
C Dimensional clear-
ance above ma-
chine (minimum)
35.43 [900] 35.43 [900] 35.43 [900] 35.43 [900] 43.31 [1100] 43.31 [1100] 43.31 [1100]
Table 9
Specifications and Dimensions
©
