Alliance Laundry Systems WF065B - Drain Connection; Drain Valve

Drain Connection
1. Drain connection

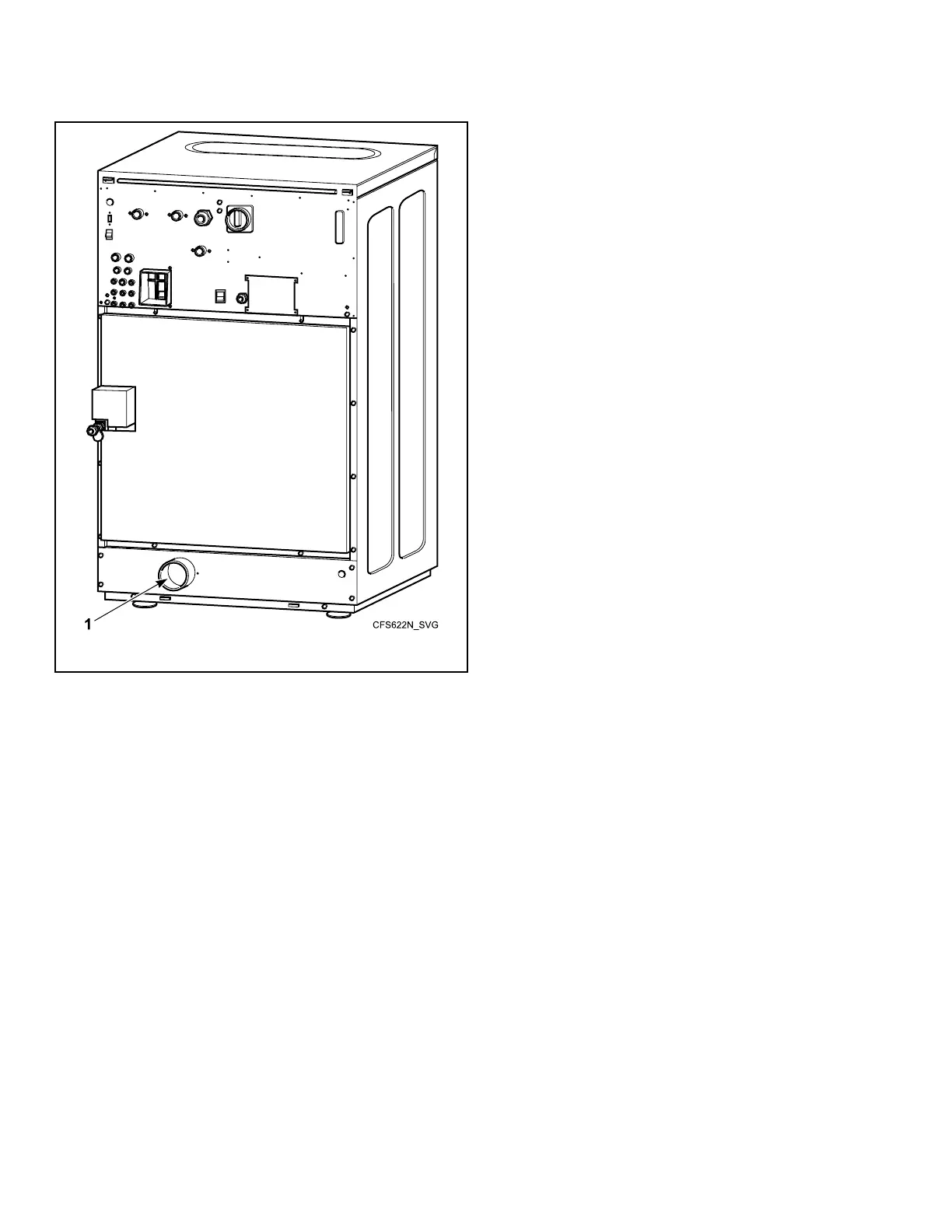

Figure 17
Drain Valve
All drain systems must be vented to prevent an air lock or siphon-
ing.
Connect a 3 inch [76 mm] pipe or rubber hose to the machine's
drain pipe, ensuring a downward flow from the machine. Avoid
sharp bends which may prevent proper draining.
The drainage pipe should be located over a floor drain, drainage
channel.
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
41 Part No. D2418ENR6
