Drain Pump 6.5 kg / 14 lb. / 65 L and 7.5 kg / 20
lb. / Models outside of North America
Connect a flexible hose to a drain pipe so that the hose bend must
not be located lower than the water level to provide sufficient si-
phon ef
fect. In order to achieve good draining, the hose must not
bend at a sharp angle. Refer to Figure 20 .

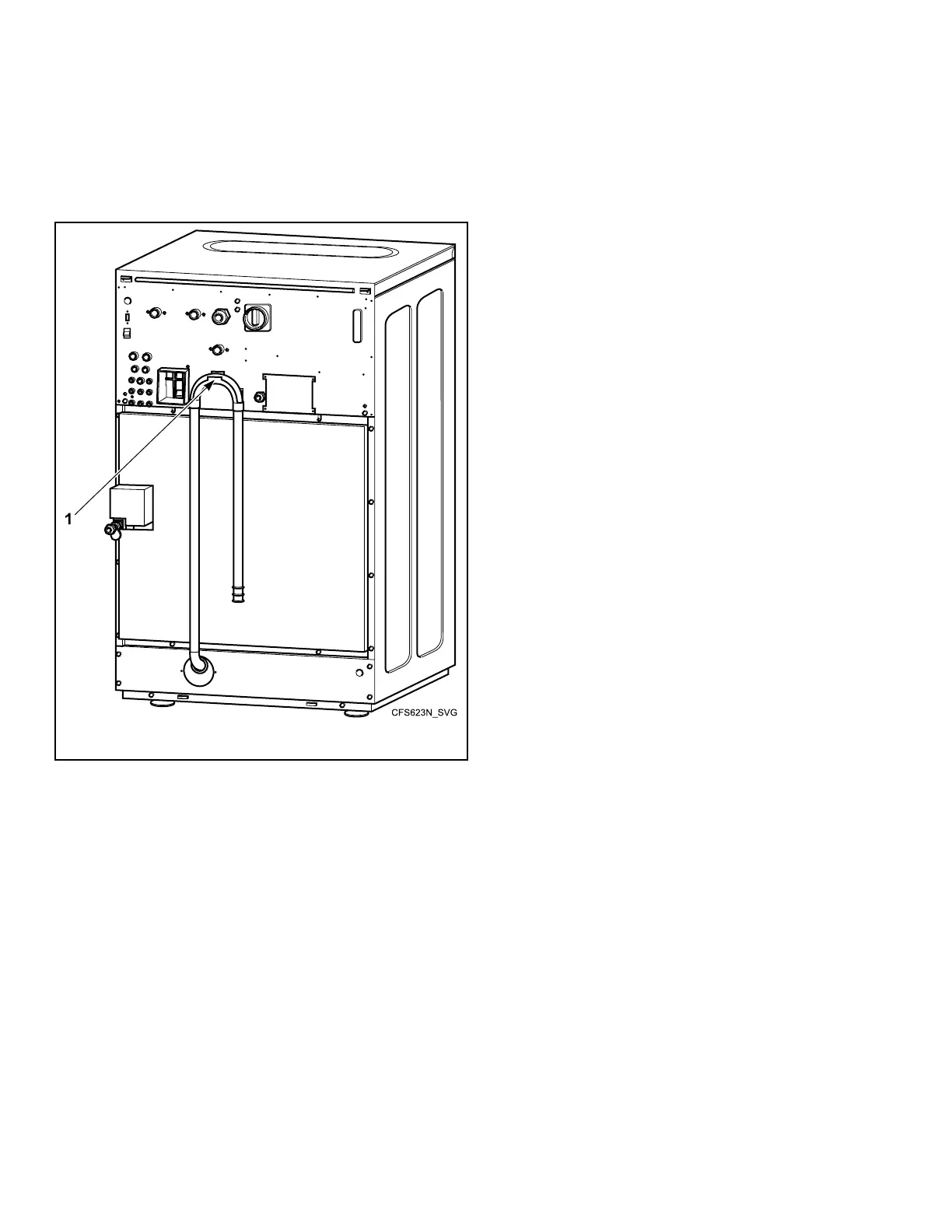

1. Drain hose bend
Figure 20
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
44 Part No. D2418ENR6
