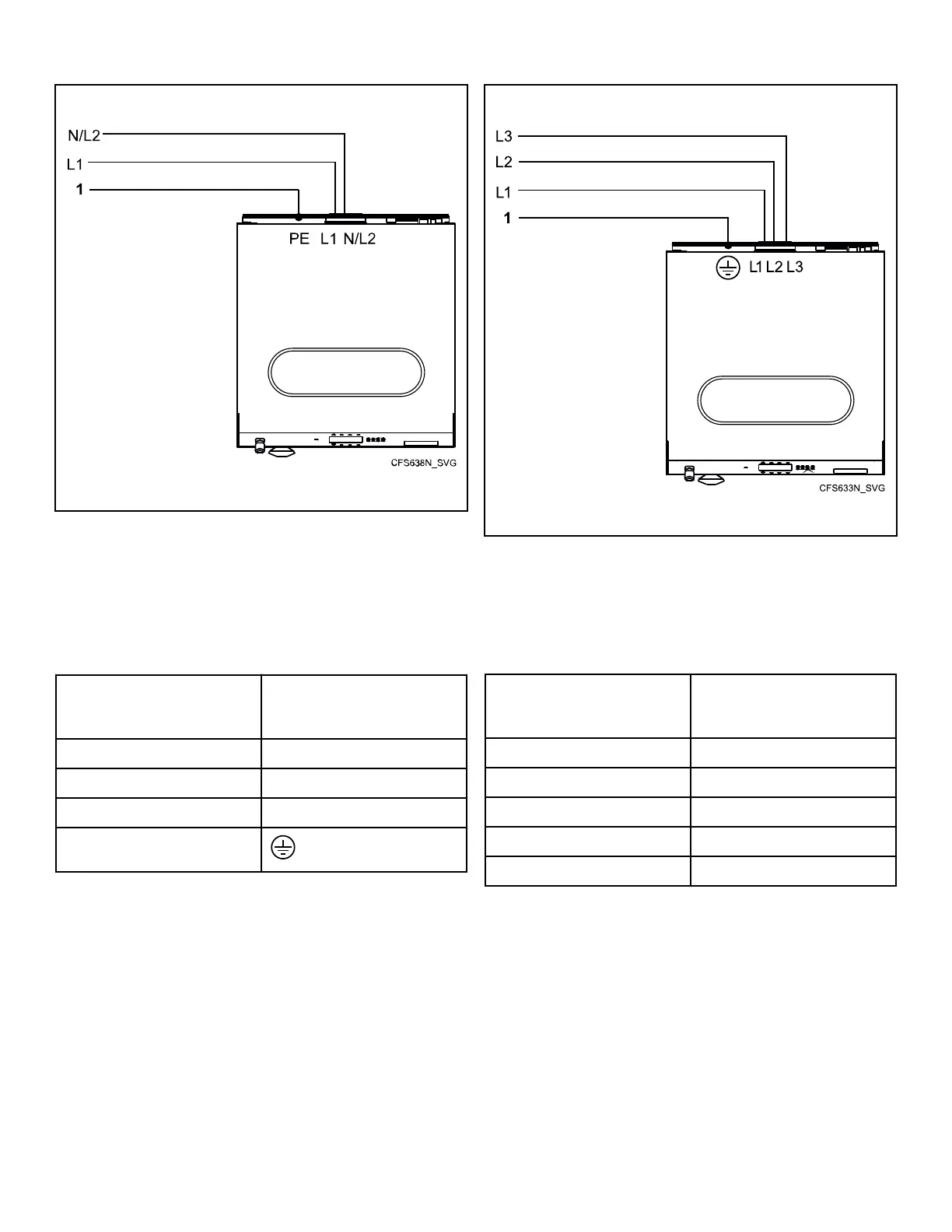

Alliance Laundry Systems WF065B - Three-Phase Connections

Models outside of North America with Single-Phase
Connection
1. Supply Ground
Figure 35
Three-Phase Connections
Three Phase Connection - North American Models
Connect the electrical service's wires to the machine's electrical
connection terminal as shown.
Electrical Service Wire
Machine's Electrical
Connection Terminal
L1 L1
L2 L2
L3 L3
Supply Ground
Table 20
North American Models with Three-Phase Connec-
tion
1. Supply Ground
Figure 36
Three Phase Connection - Models Outside of North
America
Connect the electrical service's wires to the machine's electrical
connection terminal as shown.
Electrical Service Wire
Machine's Electrical
Connection Terminal
L1 L1
L2 L2
L3 L3
Neutral N
Supply Ground PE
Table 21
Installation
©
