Chemical Soap Supply System
NOTE: Read Important Safety Instruction first.
Undiluted chemical dripping can damage the washerextractor.
Therefore, all chemical supply dispenser pumps should be moun-
ted below the washerextractor
’s injection point. All dispenser
tubing should also run below the injection point. Loops do not
prevent drips if these instructions are not followed. Failure to fol-
low these instructions could damage the machine and void the
warranty. Figure 41 shows a typical chemical injection supply
system.

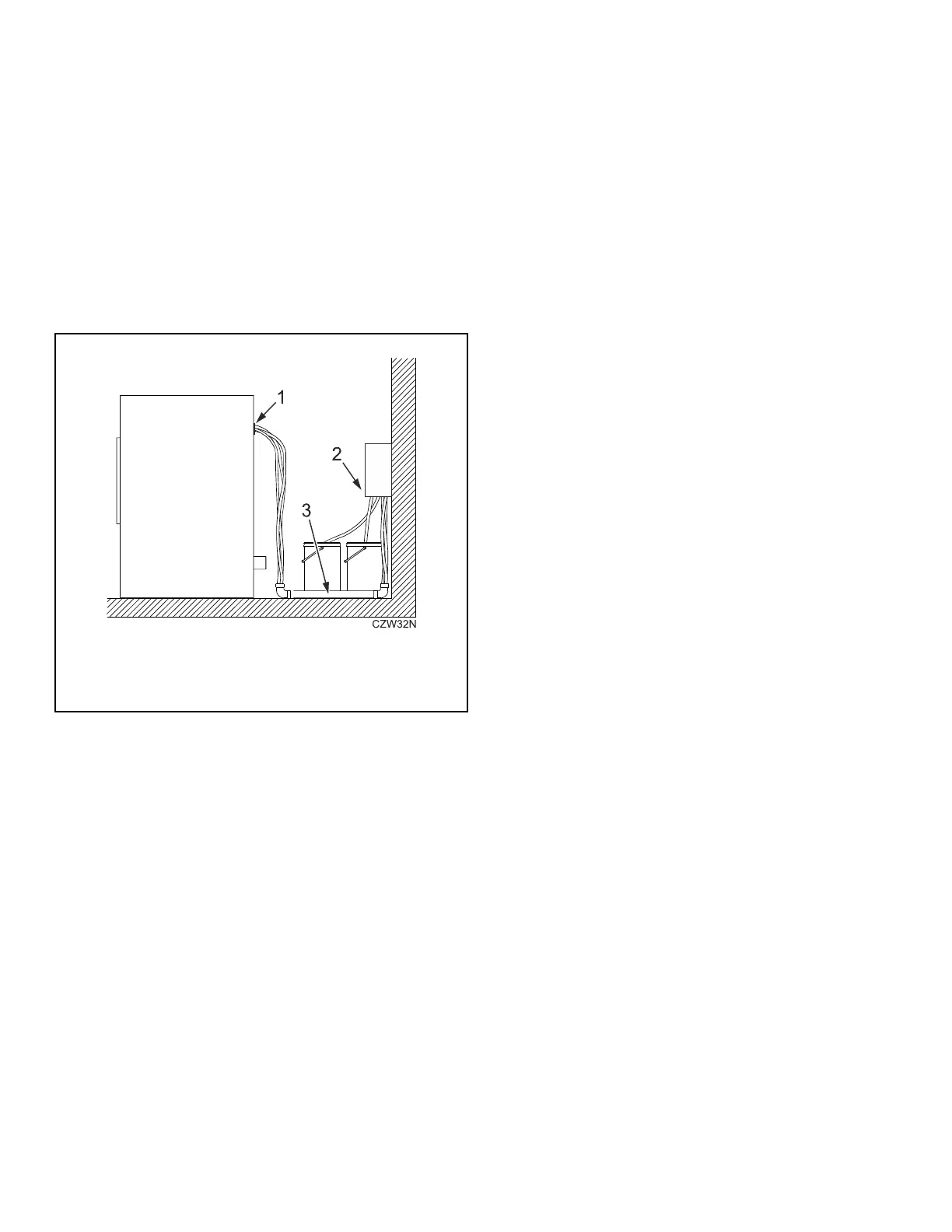

Chemical Injection Supply System
1. Injection Point
2. Chemical Dispenser Pump Outlet
3. PVC Pipe
Figure 41
Chemical Soap Supply System
©
