Repairs
4 - 50

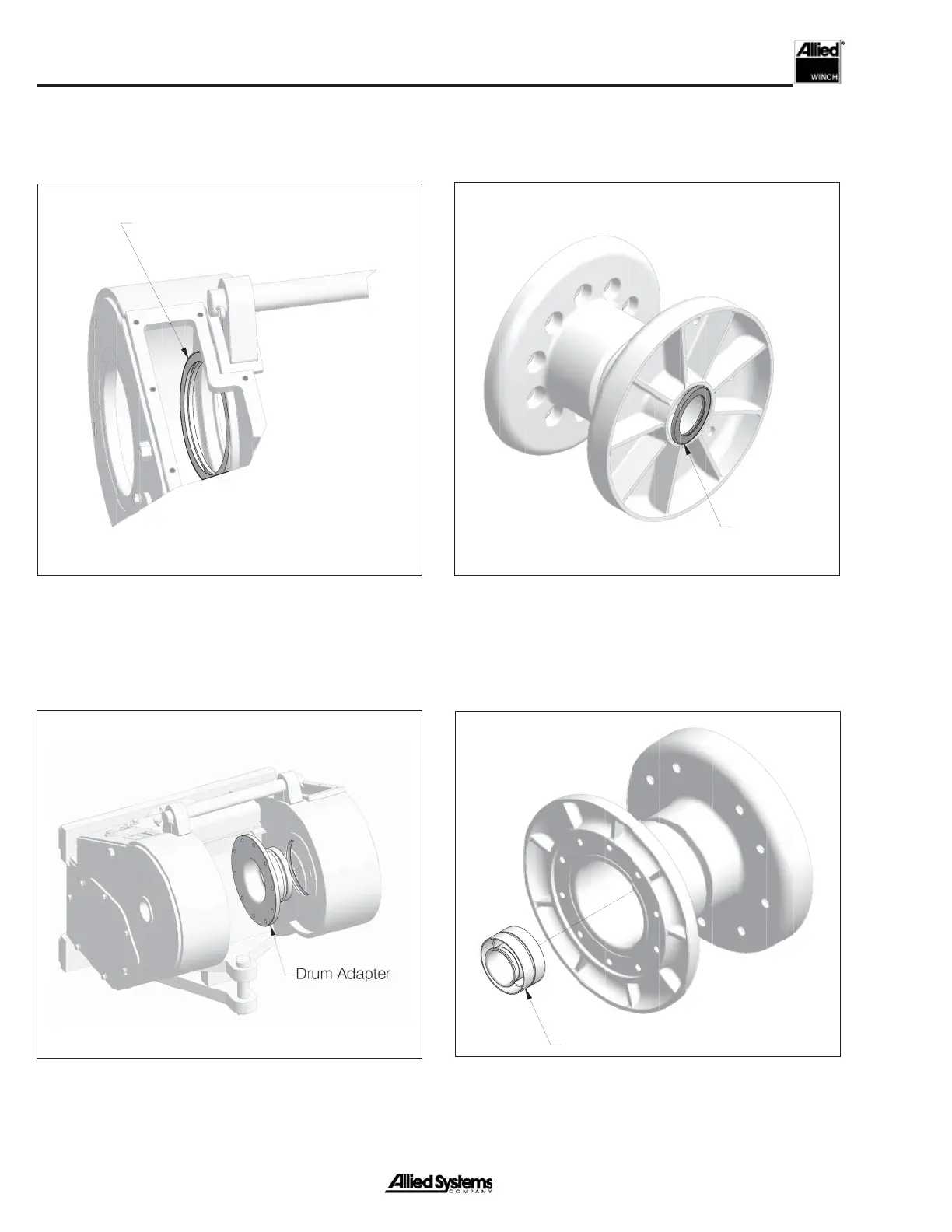

1. Coat seal bore with sealant. Install double-lip seal
with smooth side toward the drum in the right hand
side of the frame.
2. Install drum adapter by pushing it through the double-
lip seal.
3. Install drum seal.
Double-Lip Seal
NOTE: To prevent drum adapter from falling out, insert
eyebolt on marked hole, then slip metal bar through
eyebolt.
Drum Seal
Roller Bearing Assembly
- Drum & Drum Shaft Installation
NOTE: Smooth side of seal must face outboard.
4. Lubricate the left-hand drum bore with Lubriplate or
other light lube grease, then install double tapered
roller bearing assembly.
To Next Page
