Section 3
3 - 1
®
Service
General
This section provides the instructions for performing main-
tenance and making checks and adjustments. Standard
shop tools are used in doing the work described in this
section.
Maintenance
The Maintenance Schedule is a program that includes
periodic inspection and lubrication. Use the operating
time on the hour meter of the tractor to determine the
maintenance time for the winch.

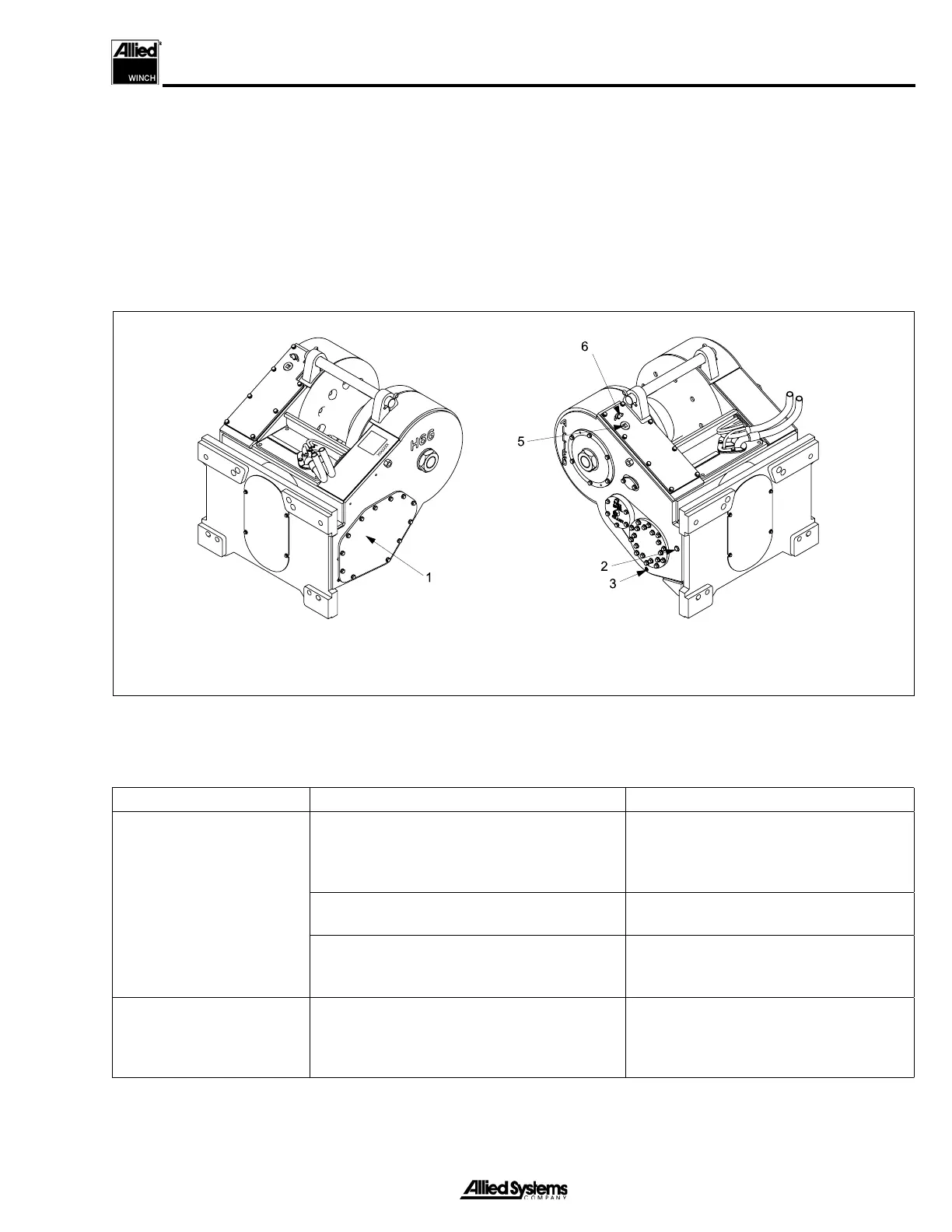

Figure 3-2 H6G Winch Maintenance Schedule
1. Access Cover for Motor and Winch Hydraulics
2. Plug to Check Oil Level
3. Plug to Drain Oil
5. Fill Plug
6. Breather
Figure 3-1 H6G Winch Maintenance Points
INTERVAL PROCEDURE OR QUANTITY SPECIFICATION
50 hours or weekly Check oil level at plug (item 2). Add oil as
necessary through fill plug (item 5). Do not
operate tractor when checking the oil
level.
See Oil Specifications in Section 1.
Clean the breather (item 6). Remove debris around breather. Clean
the breather with solvent if necessary.
Lubricate the rollers on the integral arch or
the fairlead assembly, if the winch is equipped
with either of these options.
Use multi-purpose grease with 2-4%
molybdenum disulfide.
2000 hours or every 12
months
Change the gear oil. Drain oil from plug (item
3). Add 8 liters (8.5 quarts) through fill plug
(item 5). Check the oil level at oil level check
plug (item 2).
See Oil Specifications in Section 1.
