Allied Systems Allied H6G Series User Manual

Repairs
4 - 54
1
2
3
4
5
67
89 10
11,12
11,12
13
14
1516
17 17
18
19
20
23
22
21
1. Capscrew
2. Freespool Piston
3. O-ring
4. Cover
5. Intermediate Shaft
6. Drum Pinion Gear
7. Dental Clutch
8. Washer
9. Setscrew
10. Nut
11. Bearing Cup
12. Bearing Cone
13. Freespool Shaft
14. Spring
15. Freespool Piston
16. Freespool Shifter Fork
17. O-Ring
18. O-Ring
19. Intermediate Gear
20. Spacer
21. Capscrew
22. Shifter Shaft Cover
23. Gasket

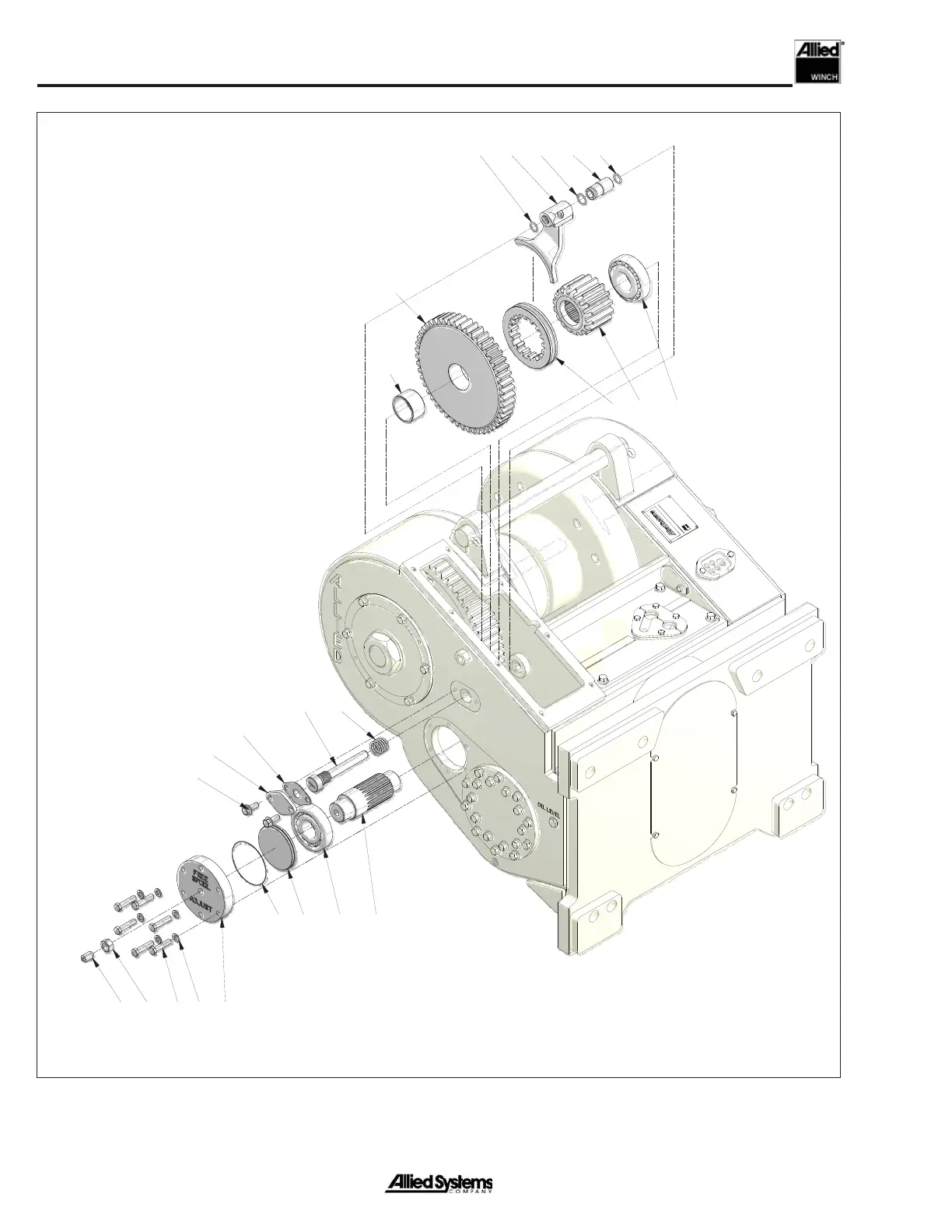

Figure 4-17 Location of Intermediate and Freespool Shaft Components
- Intermediate & FREESPOOL Shaft Installation
