Allied Systems Allied H6G Series User Manual

Section 4
4 - 55

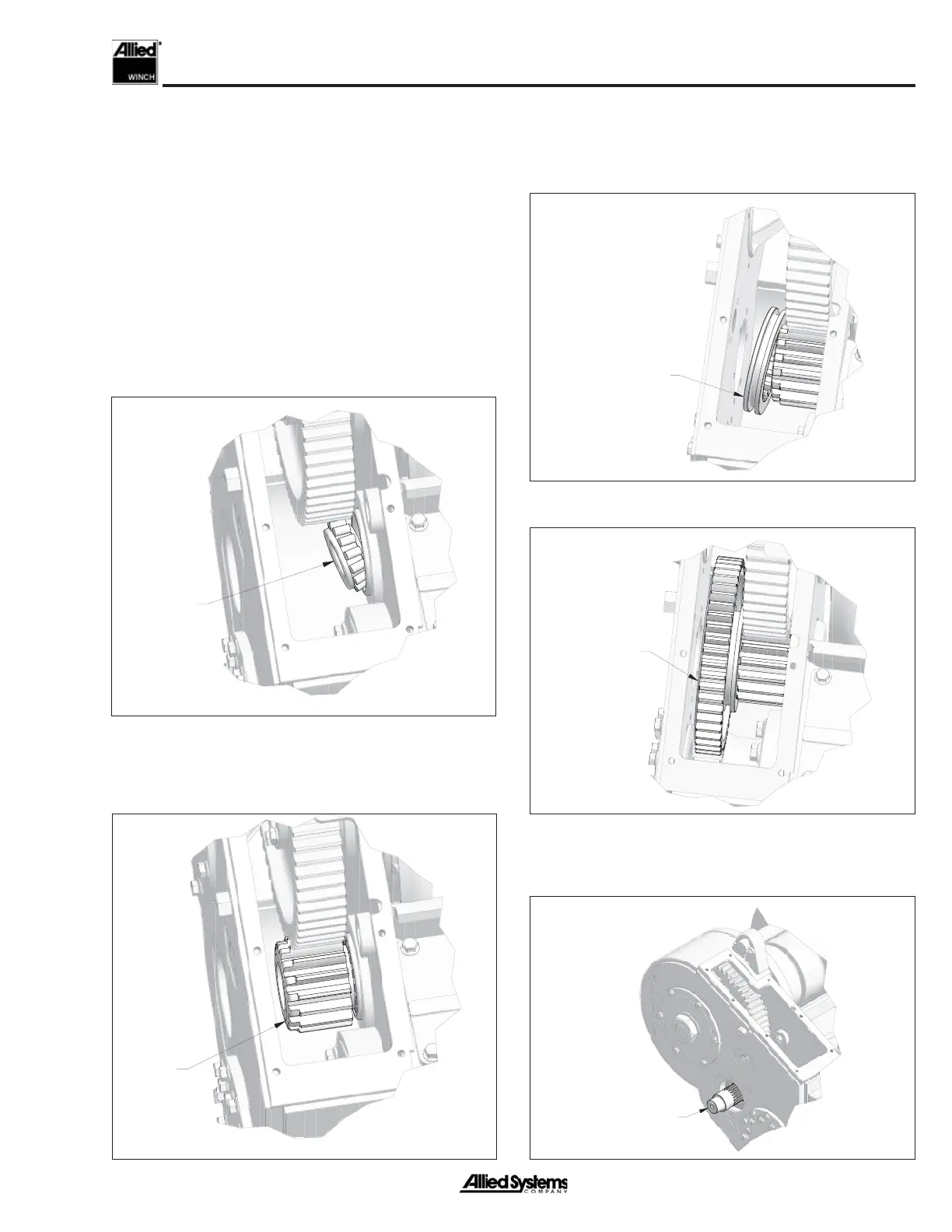

Intermediate Shaft Installation,FREESPOOL
These fi gures show the winch removed from the tractor
with the clutch shaft and brake shaft removed.
2. Position the FREESPOOL drum pinion in the hous-
ing.
1. Install inner bearing assembly if previously removed.
Use a liberal amount of lubriplate or other light lube
grease to hold the inner bearing cone in place.
3. Place dental clutch on pinion gear. Ensure chamfered
ramp faces pinion.
4. Position intermediate gear in housing.
NOTE: Install intermediate gear with high shoulder
down.
5. Install intermediate shaft.
Inner
Bearing
Cone
Drum
Pinion
Gear
Dental Clutch
Intermediate
Gear
Intermediate Shaft
