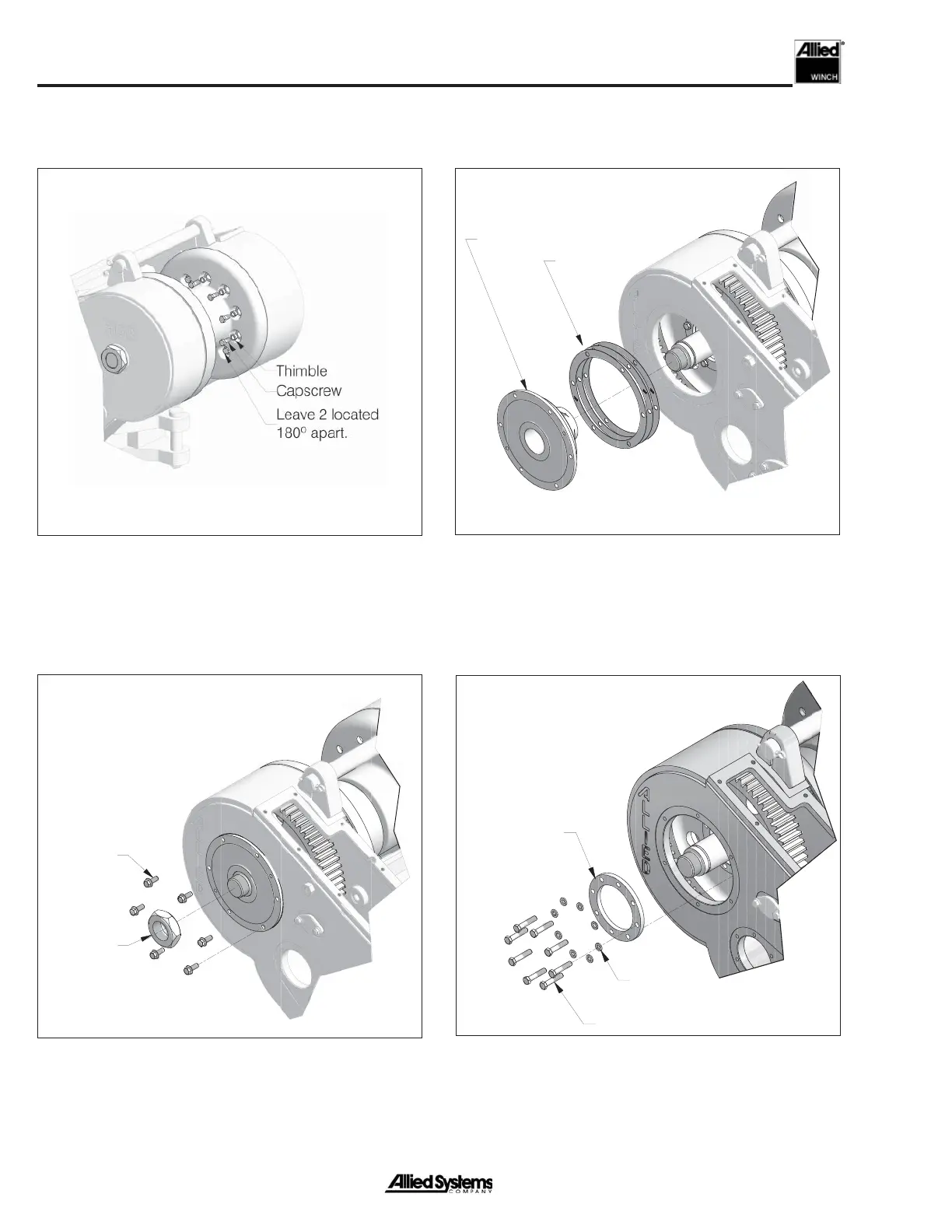

Repairs
4 - 6
1. Loosen the drum capscrews, then remove capscrews
with thimbles, leaving two located 180° apart.
2. Remove both drum shaft locknut and the retainer
capscrews.
3. Remove bearing retainer and shim pack.
NOTE: Tag shim pack for reference during reassem-
bly.
4. Remove retainer ring by removing retainer cap-
screws.
Locknut
Capscrew
Bearing Retainer
Shim Pack
Retainer Plate
Capscrews
Washers
- Drum Shaft & Drum Removal
