Allied Systems Allied H6G Series User Manual

Section 4
4 - 7

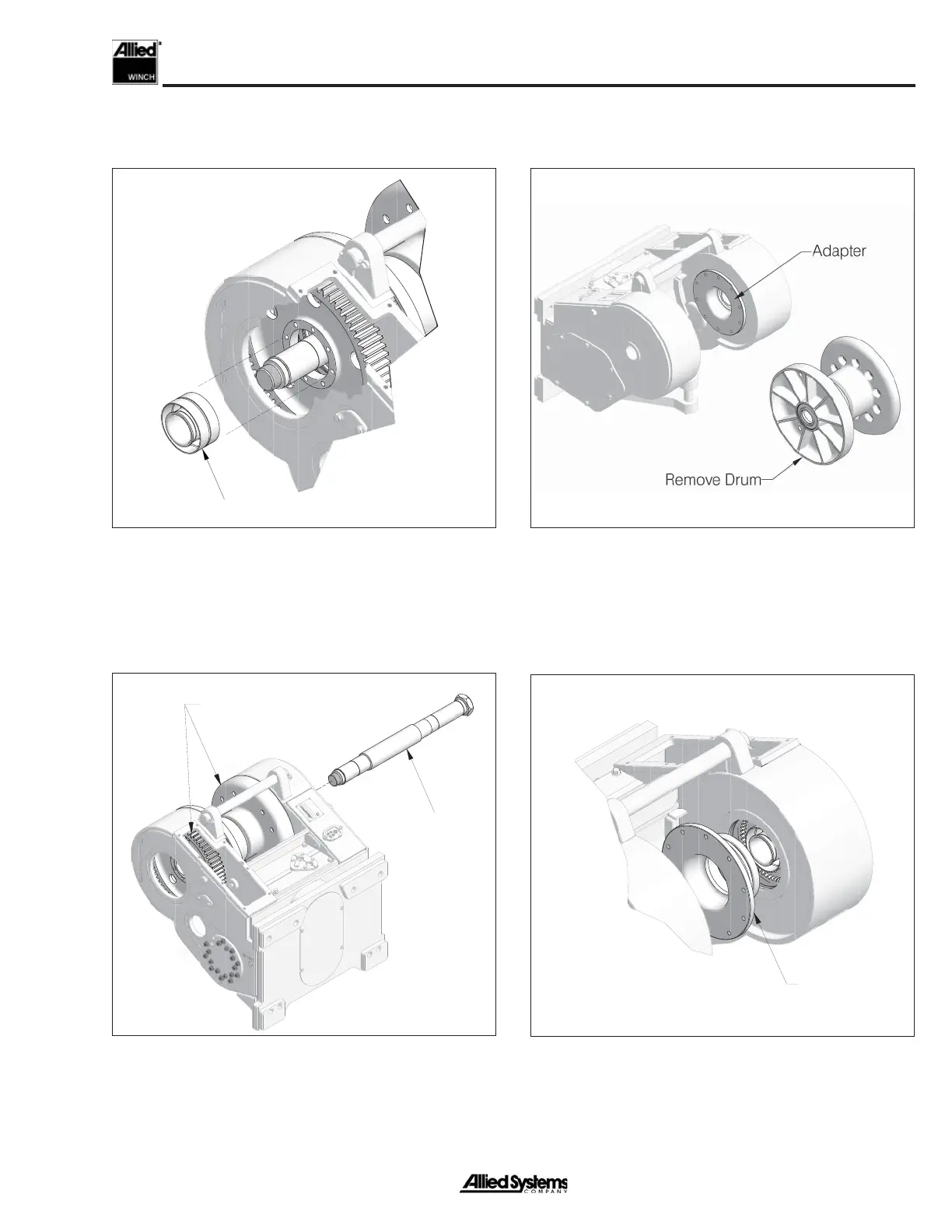

5. Remove roller bearing.
6. Attach a sling around the drum and hoist until there
is no slack, then drive the shaft out the right hand
side.
NOTE: Support or sling the drum gear so that it
does not fall during shaft removal.
7. Remove two remaining drum capscrews.
8. Carefully remove the drum from winch frame. Ensure
that the adapter does not fall.
9. Remove adapter.
Note: Part of
frame shown
removed for
clarity
Roller Bearing
Support Drum and
Drum Gear Before
Drum Shaft Removal
Drum Shaft
Remove
Adapter
