Repairs
4 - 8

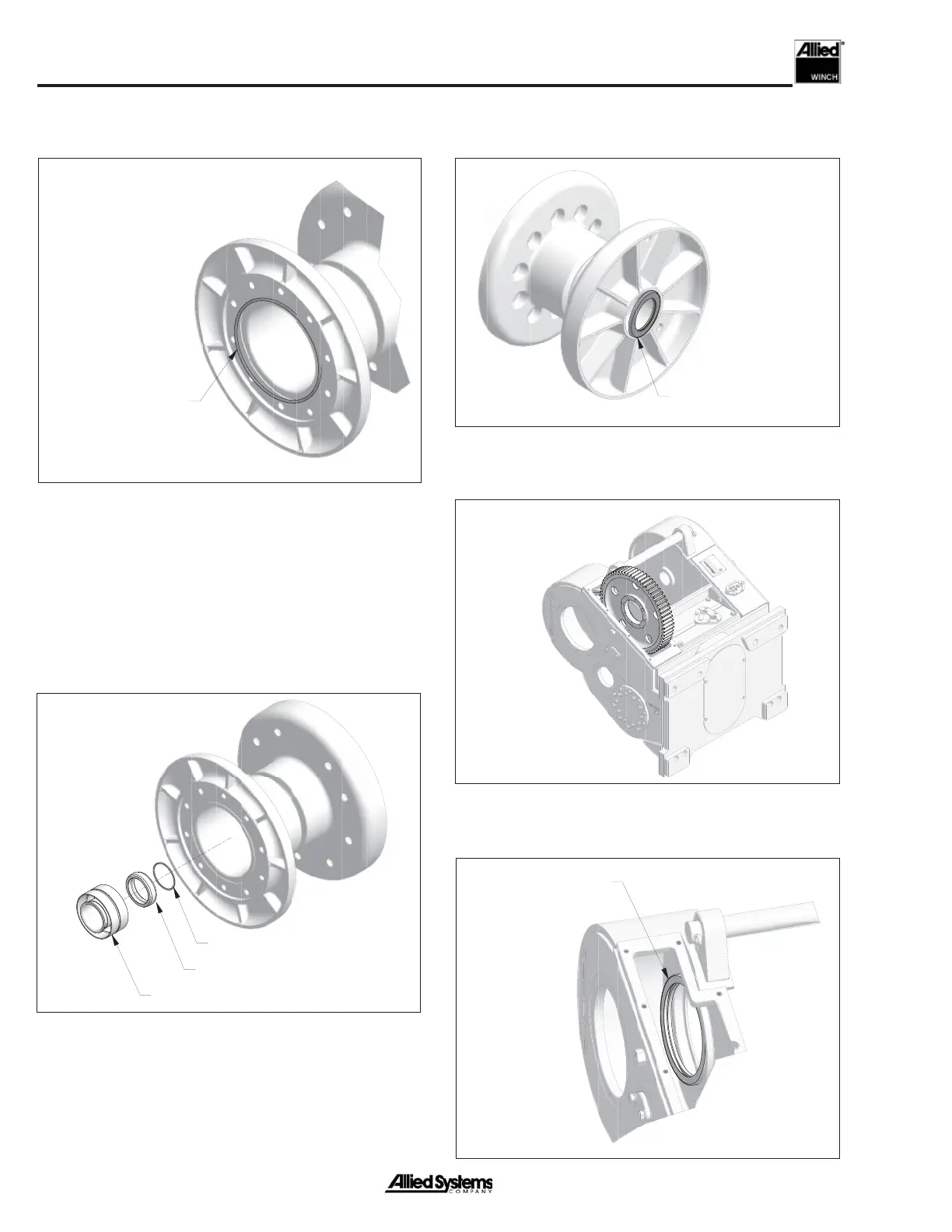

10. Remove and discard adapter seal.
NOTE: This seal must be replaced with a new Allied
Systems Company-approved seal during reassem-
bly.
11. Remove double tapered roller bearing assembly
and drum seal spacer from the left-hand end of the
drum.
Adapter Seal
Remove and Discard
Roller Bearing Assembly
Drum Seal Spacer
Spacer O-Ring
NOTE: Refer to Figure 4-2 on page 4-5 for location
of components.
12. Remove and discard shaft seal from drum. (Seal lip
should be pointed in.)
Remove and Discard
13. Using a suitable lifting device, the drum gear can
now be removed.
Remove and Discard
14. Remove and discard adapter seal from winch hous-
ing.
- Drum Shaft & Drum Removal
