Allied Systems Allied H6G Series User Manual

Section 4
4 - 11

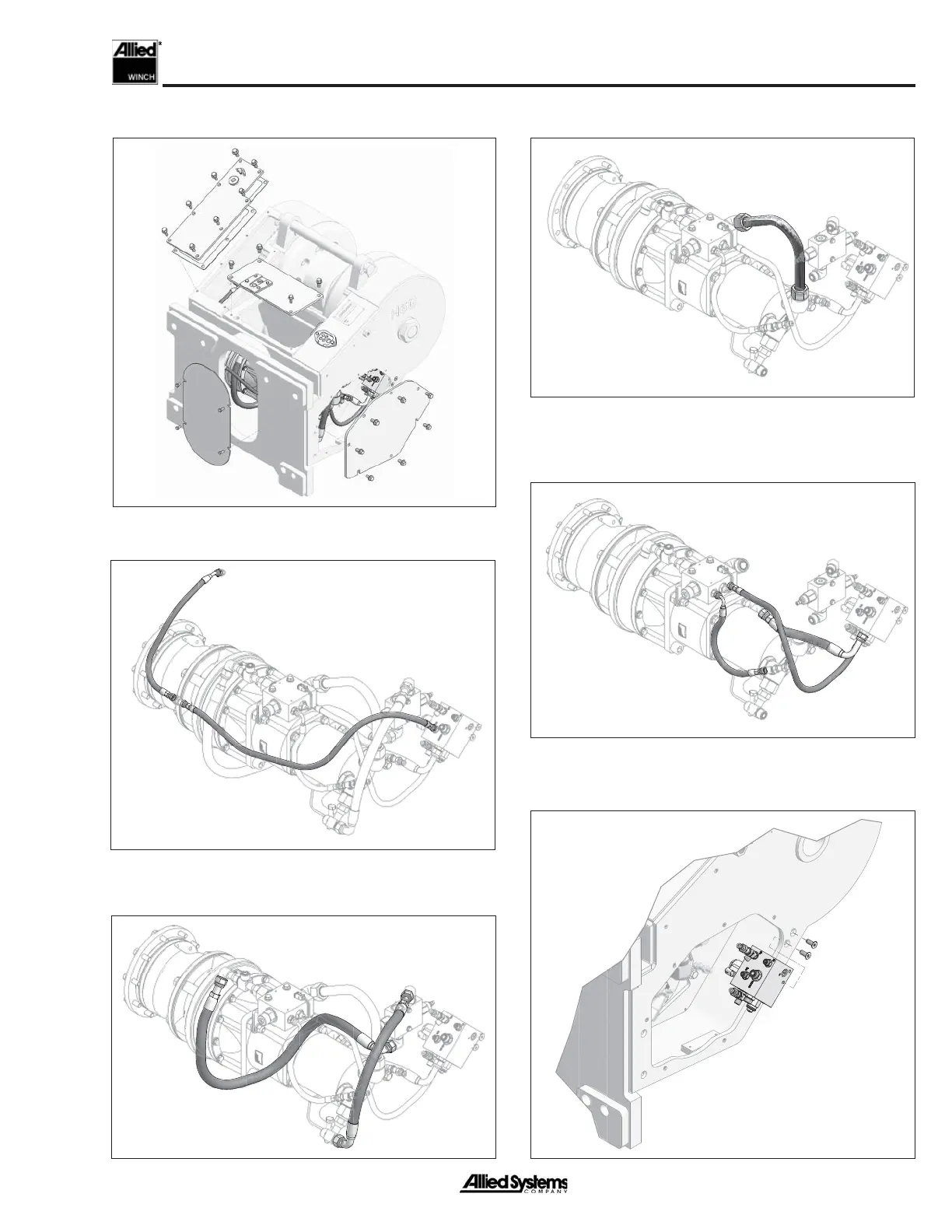

1. Drain oil from winch and remove covers as shown.
3. Remove the two hoses at the Cross Port Relief
Manifold.
4. Remove tube assembly at Port A on the motor.
5. Remove three remaining hoses.
6. Remove the control manifold.
2. Remove the two freespool hoses.
