AT-GS900MX Series Installation Guide for VCStack
105

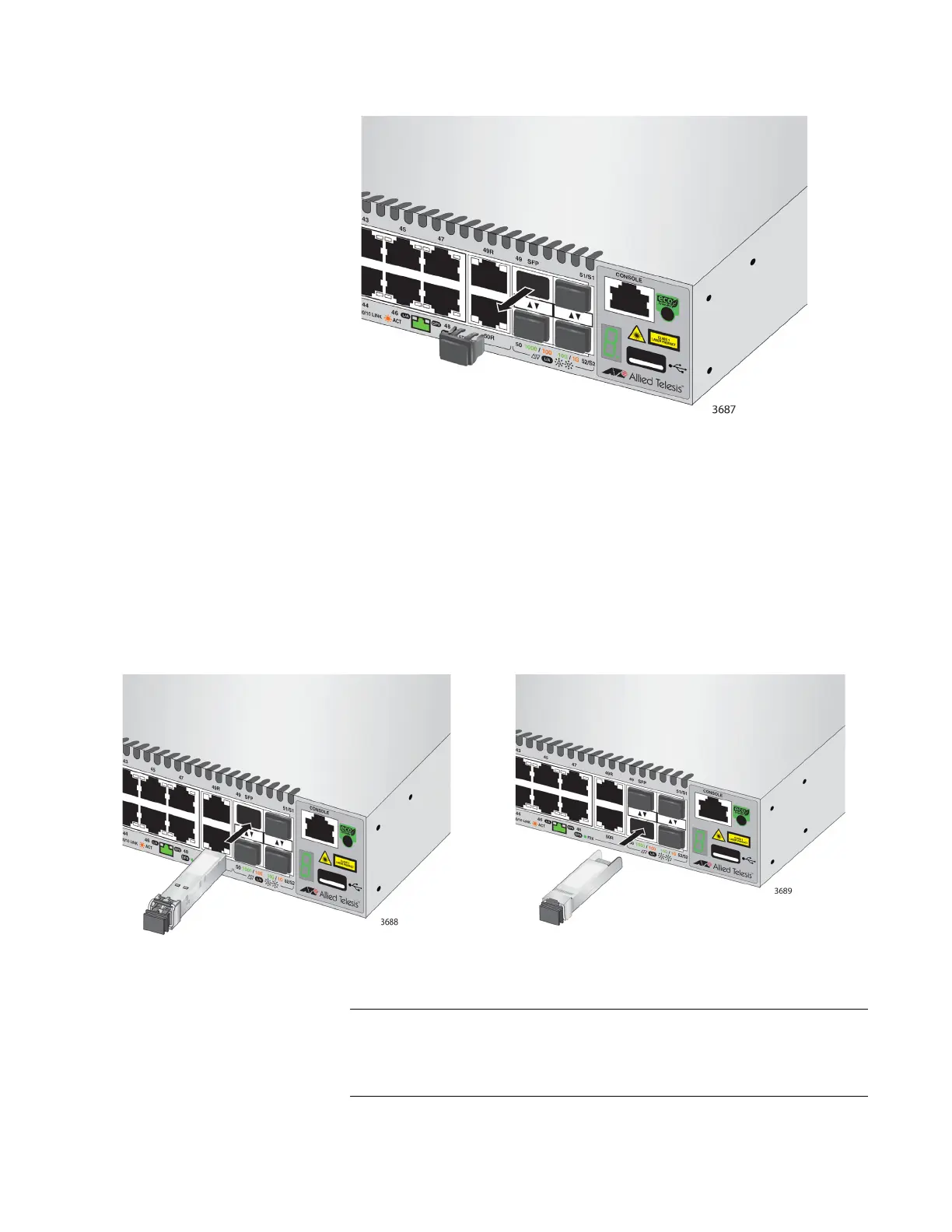

Figure 52. Removing the Dust Plug from an SFP Slot
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. If you are installing the transceiver in a top slot, position the transceiver
with the handle on top. If you are installing the transceiver in a bottom
slot, position the transceiver with the handle beneath the module.
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 53.
Figure 53. Installing an SFP Transceiver
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat Step 1 to Step 4 to
install another SFP transceiver in the switch.
