Switch ID LED The Switch ID LED, shown in Figure 12, displays the ID number of the
switch. A stand-alone switch has the ID number 0. Switches in a VCStack
have the numbers 1 to 4.

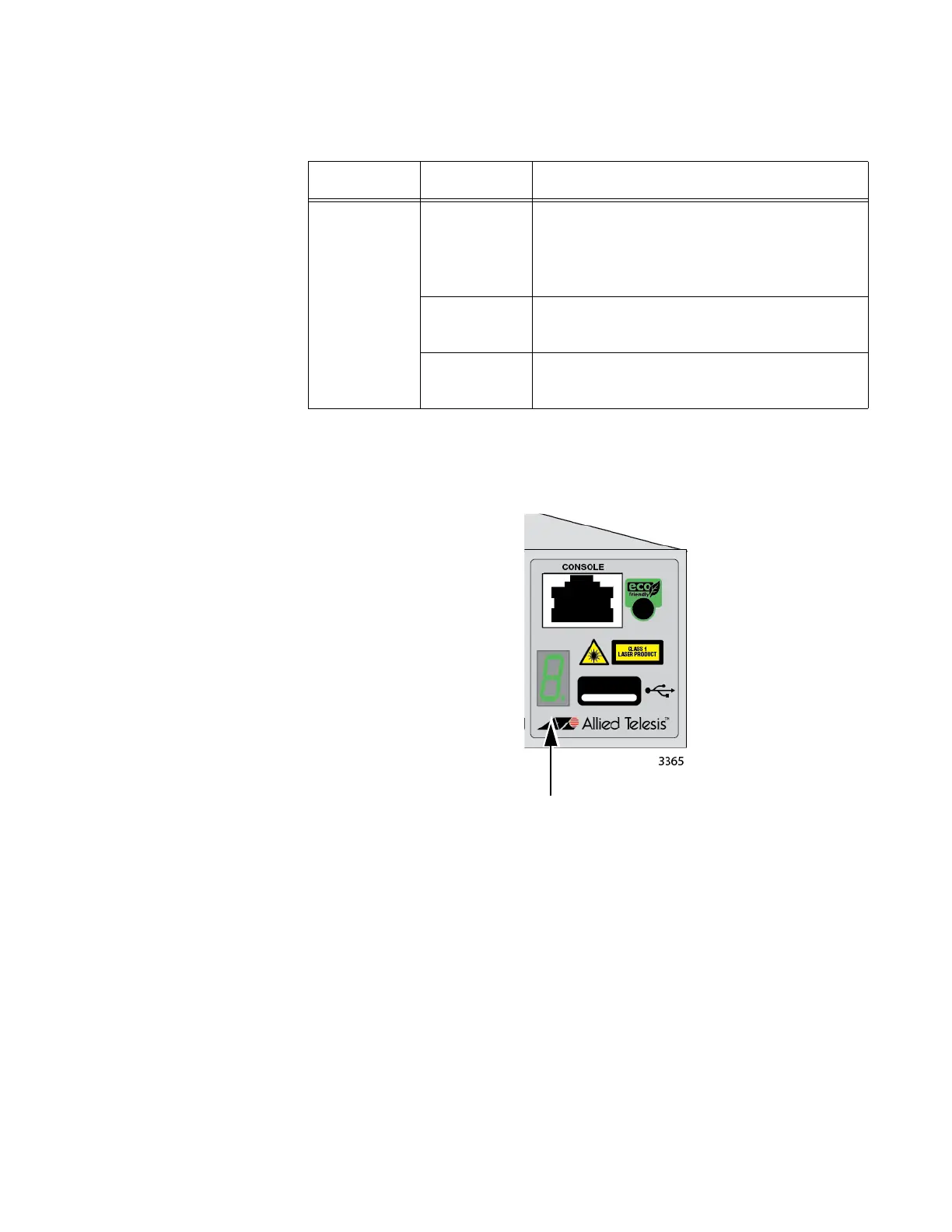

Figure 12. Switch ID LED
The states of the LED when the switch is not operating in the low power
mode are shown in Figure 13 on page 42.
Table 10. S1 and S2 Slot LEDs
LED State Description
Link/Activity Off The slot is empty, the stacking transceiver
has not established a link to a network
device, or the LEDs are turned off. To turn
on the LEDs, use the eco-friendly button.
Solid green The stacking transceiver has established
a link to another switch in the stack.
Flashing
green
The stacking transceiver is receiving or
transmitting packets.
