Copyright © 1998 General Motors Corp. D–13
WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
APPENDIX D — WIRE/CONNECTOR CHART

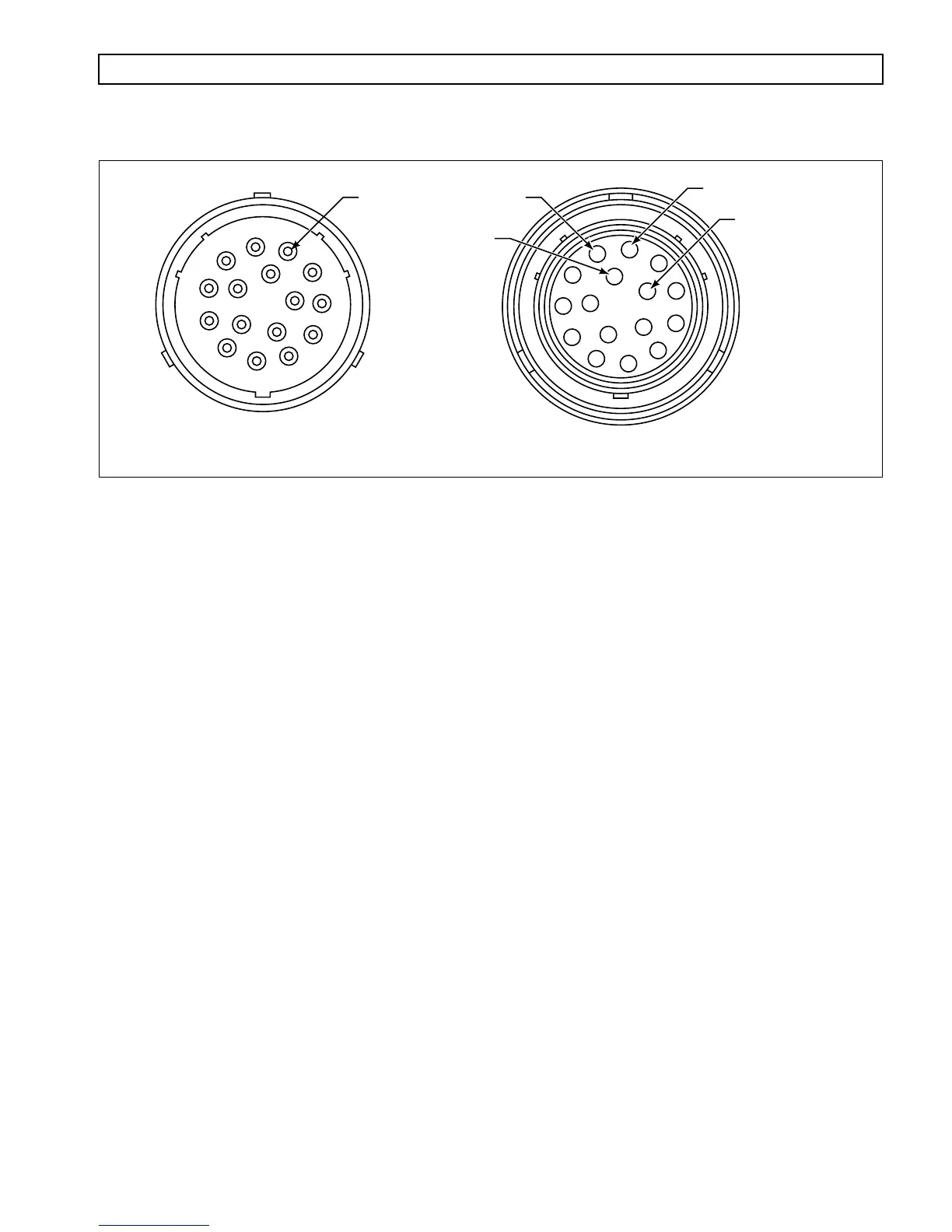

Figure D–9. Optional Deutsch Sensor Harness Connector
OPTIONAL DEUTSCH SENSOR HARNESS CONNECTOR
Terminal No. Color Wire No. Description Termination Point(s)
C Green 135C TPLO ECU, B1
D Orange 138 RETT ECU, B4
E Blue 109 KSLO ECU, A9
F Yellow 134 KSHI ECU, A34
G Violet 122 SGD4 ECU, A22
H White 127 HSOL ECU, A27
L Blue 140B NTLO ECU, B6
M Orange 149B NTHI ECU, B15
N Orange 150 NELO ECU, B16
P Violet 141 NEHI ECU, B7
R Green 148 NOLO ECU, B14
S Yellow 139 NOHI ECU, B5
V01674
L
R
AA
M
PLUGRECEPTACLE
