Copyright © 1998 General Motors Corp. D–23
WTEC II ELECTRONIC CONTROLS TROUBLESHOOTING MANUAL
APPENDIX D WIRE/CONNECTOR CHART

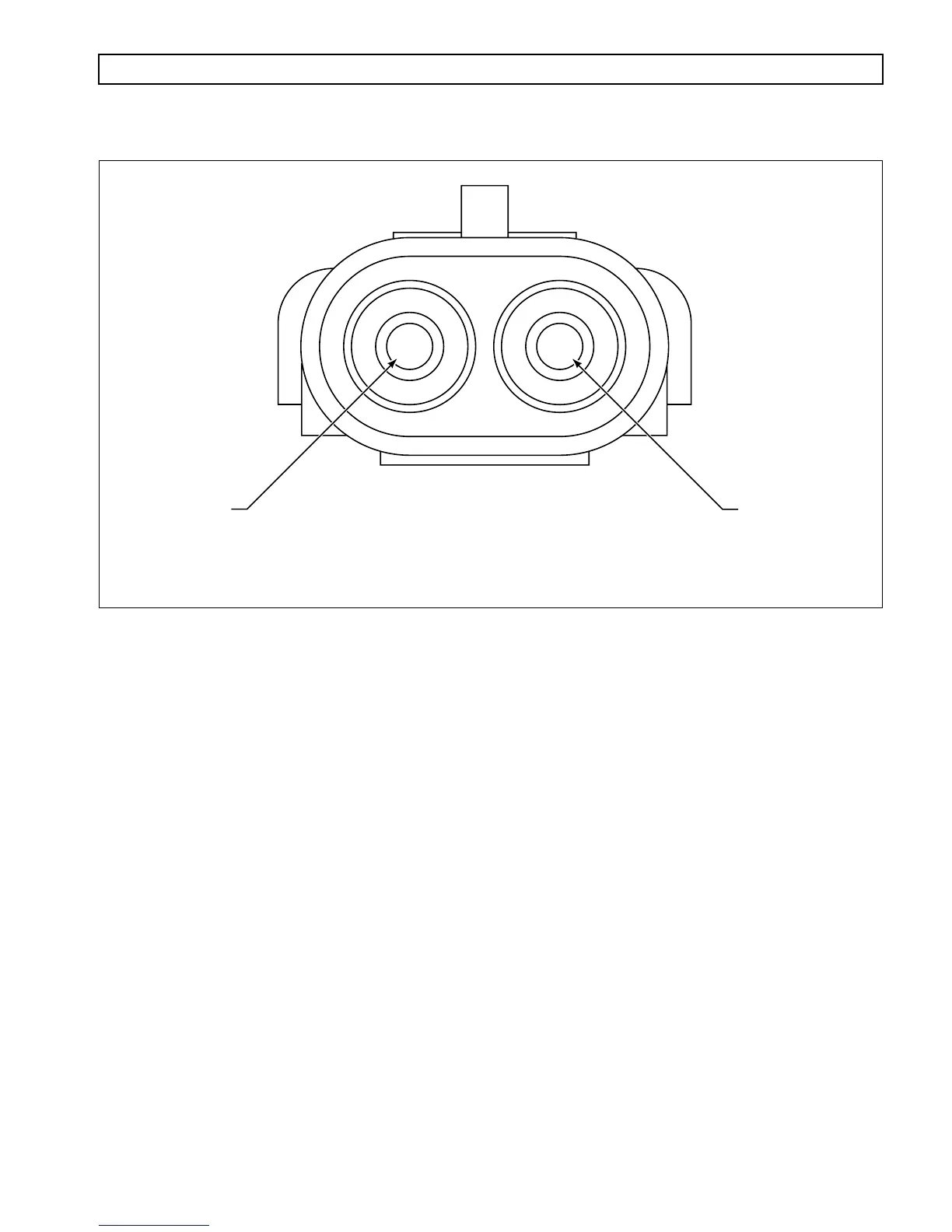

Figure D–19. Retarder Temperature Sensor Connector (HD/B 500)
RETARDER TEMPERATURE SENSOR CONNECTOR — HD/B 500
Terminal No. Color Wire No. Description Termination Point(s)
A Orange 138 Retarder Temperature ECU, B4
B Green 135 Analog Ground ECU, B1; Trans Conn, G2; TPS, A;
Rtdr Module Sens, A
A
B
V01678
