Chapter 2 Setup
2.1 Connect the Phone
To connect the phone:
1. Connect the cables to the jacks on the back of the phone.
2. Thread cables through the strain relief guide on the phone base.
Caution:
Do not connect the phone to an analog phone line. This may cause damage to the Allworx phone, which
voids the warranty.

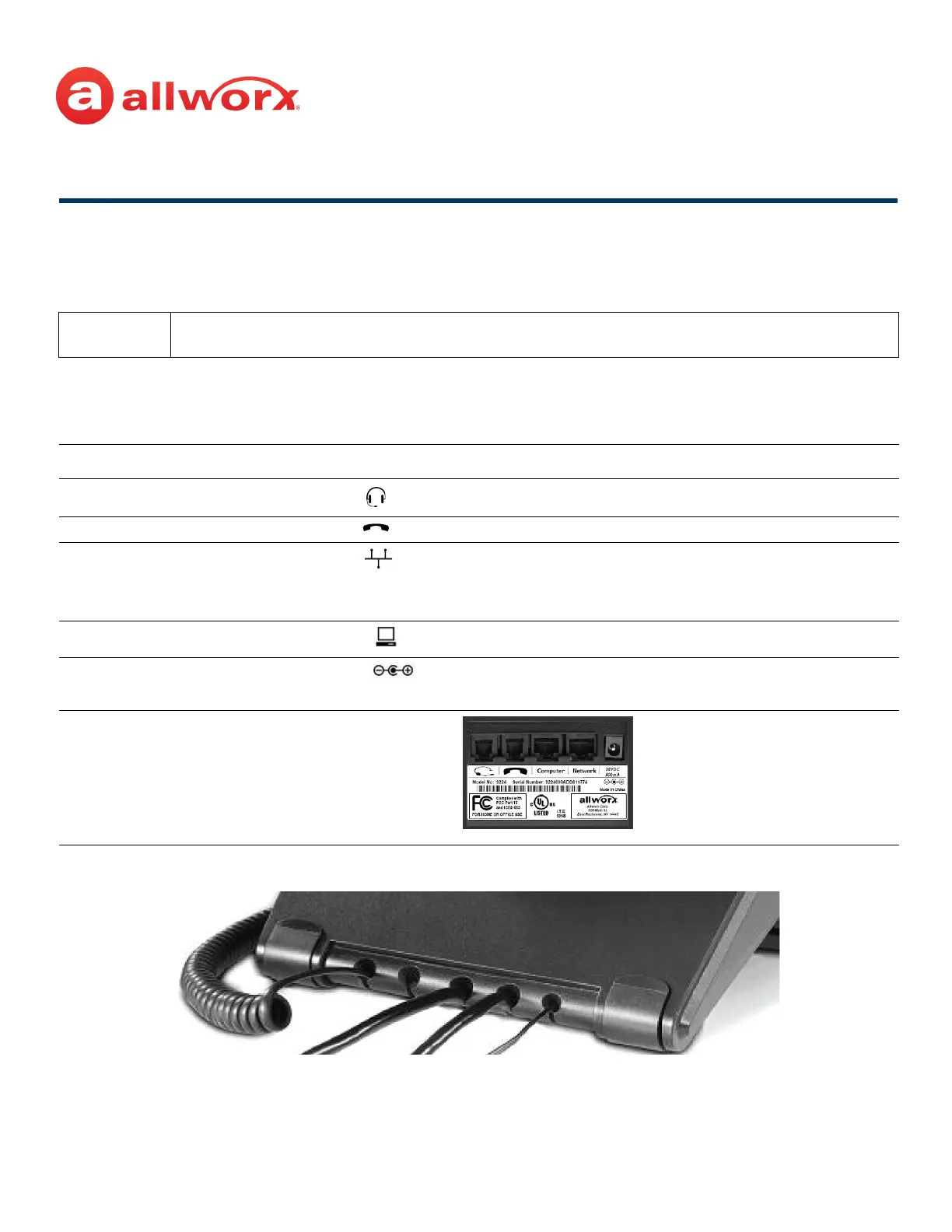

Cable Connections
Optional: Headset cord
Headset jack ( )
Handset cord
Handset jack ( )
Ethernet cable
Network jack ( ) and Wall Ethernet jack
Power over Ethernet (PoE): provides power to the phone after connecting the Ethernet
cable.
Optional: Ethernet cable
Computer jack ( ) and the computer.
Optional: Power Supply
Phone DC jack ( ). Allworx recommends using a surge protector.
Only required if the Ethernet cable does not provide PoE
Back of Phone
