Alpha FXM 1100 - Page 58

%5HY


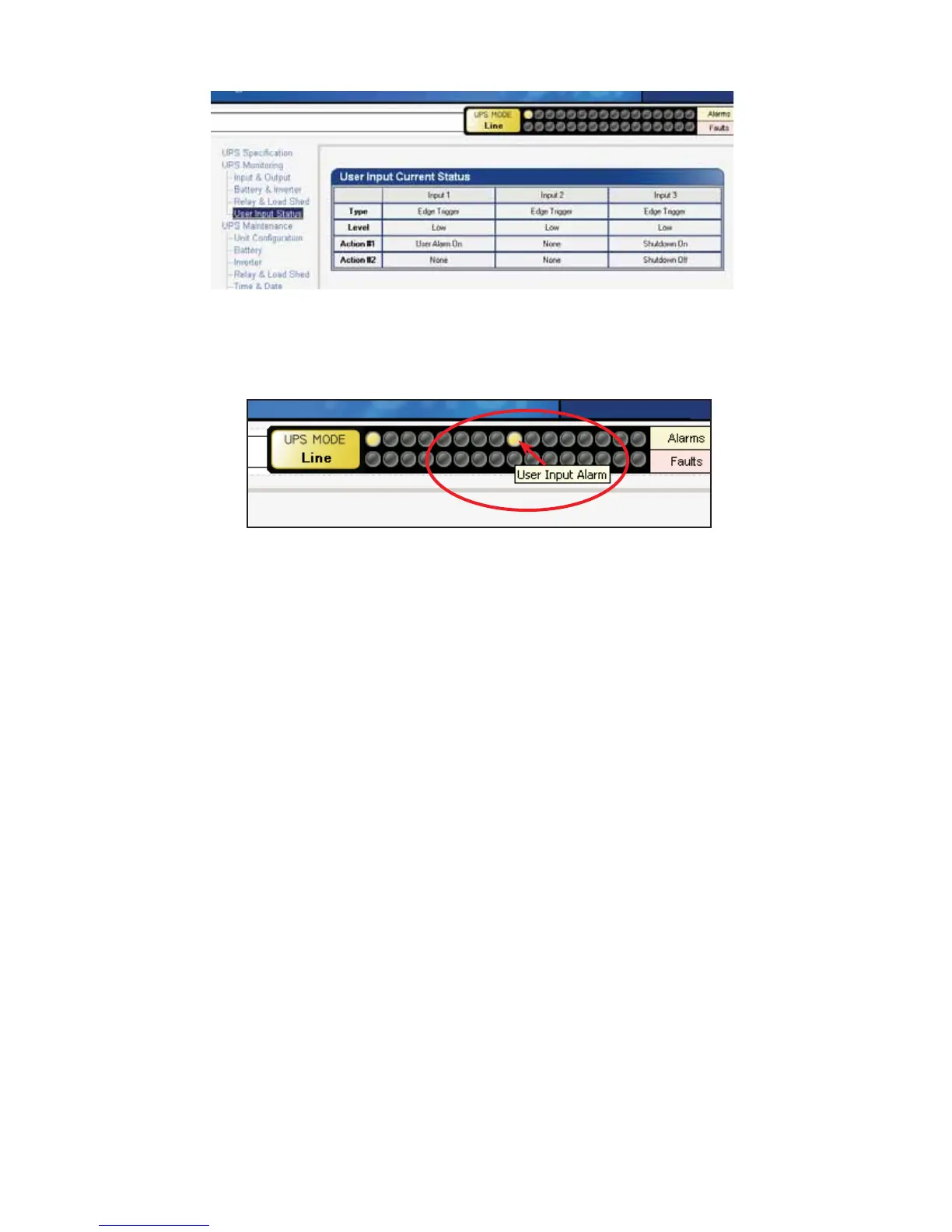

)LJXUH ² 8VHU,QSXW&XUUHQW6WDWXV
)LJXUH ² 8VHU,QSXW&XUUHQW6WDWXV
Perform a quick test by shorting the User Input 1 dry contact pin (Pin 19 of C6) to ground (Pin 22 of C6) with
a short length of PVC insulated electronic wire. This will trigger the Alpha FXM to issue a User Input Alarm as
shown below.
Hovering the cursor over the amber indicator will display the corresponding context sensitive message.
7. Check the User Input Current Status at the UPS Monitoring > User Input Status page.
