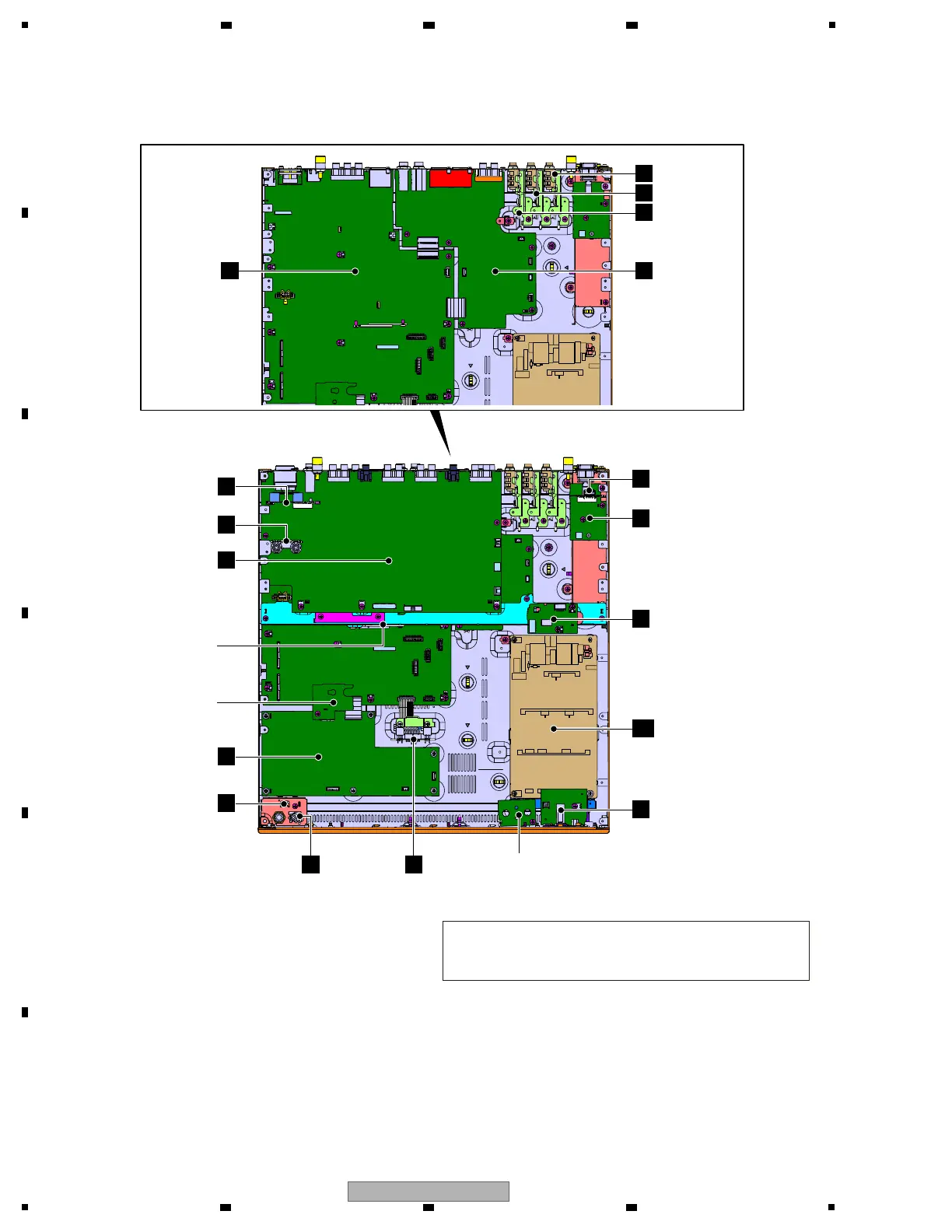

3.3 PCB LOCATIONS
Note:
The 1 to 3 Assys of SNRT Assys have the same circuitry, parts, and board shapes.
Only printed information is different, because their part numbers and wiring numbers are different.
They are handled similarly in their production management.
Therefore, either 1, 2 or 3 Assy of the respective Assys is assembled in the respective place.
"
Chassis Section
O
AOUT ASSY
PSWB ASSY
J
USBP ASSY
N
HPJC ASSY
CCB1 ASSY
B
SNRT1 ASSY
C
SNRT2 ASSY
D
SNRT3 ASSY
F
MAIN ASSY
A
AIN ASSY
K
HPPW ASSY
FGP2 ASSY
L
HPJK ASSY
H
USBB ASSY
E
MTRM ASSY
FGP1 ASSY
I
P
USBA ASSY
M
HPJM ASSY
G
REGB ASSY
SW POWER SUPPLY
AG
