AlphaTheta DJM-V10 - 4.4 DSP BLOCK DIAGRAM

16
DJM-V10
1
2 3 4
A
B
C
D
E
F
1
2 3 4

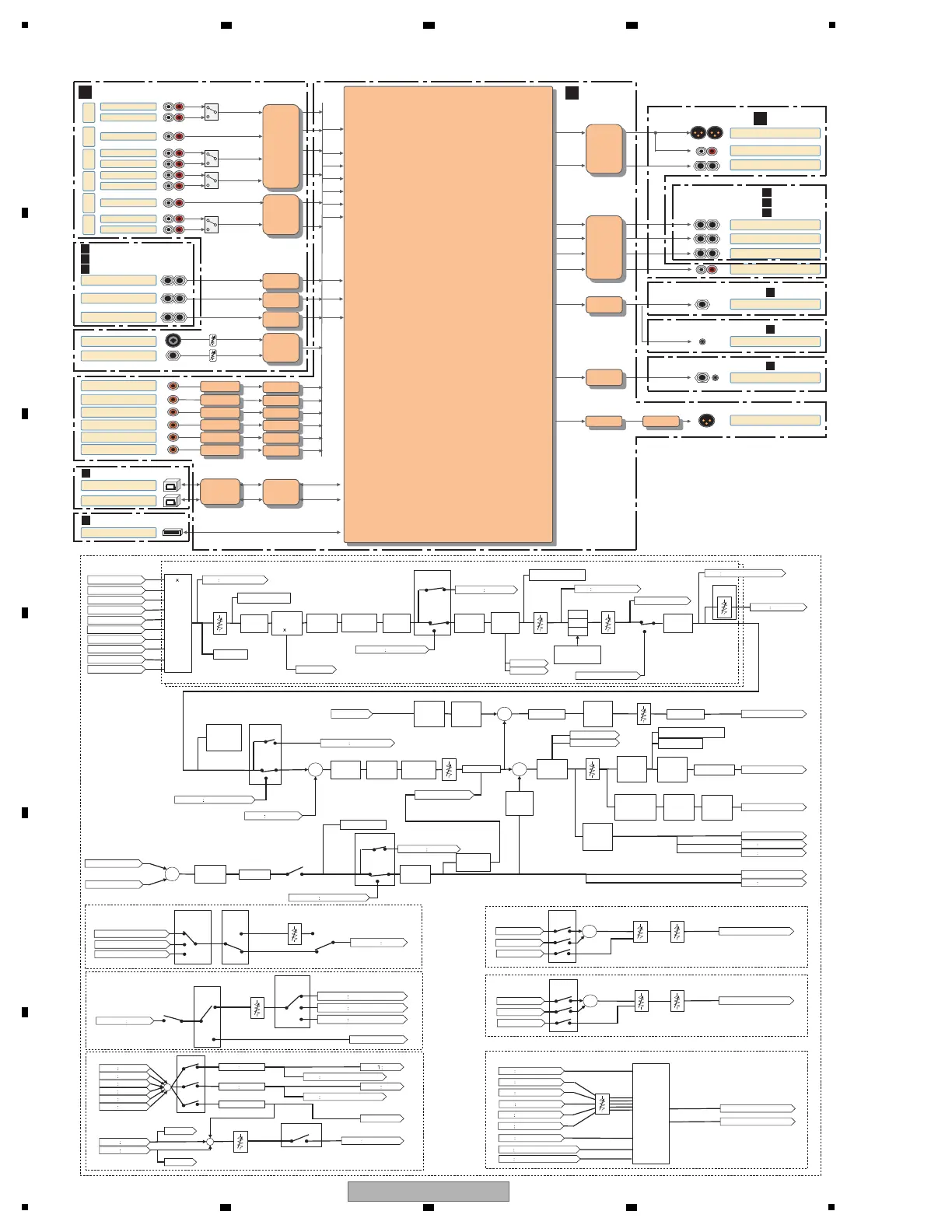

4.4 DSP BLOCK DIAGRAM
DSP
IC1101
DIR
DIR
DIR
DIR
IC2606,2607,
IC2703,2704,
IC2803,2804
IC2610,2611,
IC2705,2706
IC2805,2806
DIR
DIR
ADC
IC4701
ADC
IC4801
DAC
IC2101
ADC
SRC
SRC
SRC
SRC
ADC
SRC
SRC
ADC
ADC
IC4902
IC5002
IC5102
IC5203
LINE
CH1
PHONO
LINE
CH2
LINE
CH3
PHONO
LINE
CH4
PHONO
LINE
CH6
PHONO
LINE
CH5
EXT1 RETURN
EXT2 RETURN
MULTI I/O RETURN
MIC1
MIC2
DIGITAL CH1
DIGITAL CH2
DIGITAL CH3
DIGITAL CH4
DIGITAL CH5
DIGITAL CH6
MASTER1
MASTER2
BOOTH
EXT1 SEND
EXT2 SEND
MULTI I/O SEND
REC OUT
PHONES A
PHONES A
PHONES B
DIGITAL MASTER OUT
SRC
IC901,902
USB A
USB B
MULTI I/O ( USB )
SRC
IC2902
DIT
IC2904
DAC
DAC
DAC
USB
IC401
UCOM
MASTER
BOOTH
EXT1 : SEND
EXT2 : SEND
MULTI I/O : SEND
REC OUT
PHONES A
PHONES B
DIGITAL MASTER OUT
USB A
USB B
MULTI I/O : SEND ( USB )
MULTI I/O : RETURN ( USB )
MIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
EXT1 RETURN
EXT2 RETURN
MULTI I/O RETURN
DSP
MULTI I/O
MULTI I/O
MULTI I/O
SEND
CUE A
ON/ OFF
MULTI I/O
CH SELECT
CUE A CHx
+
+
+
COMP
CHx
PRE EQ
CUE A
CH
4BAND EQ
CHx
BEAT FX
CHx
FILTER
CHx
CH
INPUT
SELECT
TRI M
PHONO
LINE
DIGITAL
USB A
USB B
MULTI I/O
BUILT-IN
EXT 1
EXT 2
BUILT-IN/EXT1/ 2
CLIP CHx
DETECTCHx BPM
USB Control Tone CHx
CUE A CHx
BEAT FX
CHx
LEVEL METER CHx
MULTI I/O RETURN CHx
CUE A/B
CHx
CUE B CHx
CH FADER
Thr u
A
B
CROSSFADER
CROSSFADE R
ASSIGN switch
USB:FX SEND CHx
BEAT FX
CHx
USB: FX RETURN C Hx
SEND
USB POST CHx FADER
FILTER
MAS TER
DETECT
MAS TER
BPM
MULTI I/ O SEND MASTER
MULTI I/O RE TURN MA STER
BEAT FX
MAS TER
MAS TER
ISOLATOR
TALK OVER
BALANCE
MI C
MIC OUT
TO
BOOTH
LEVEL
MI C
PEAK
LIMITER
BOOT H
MONO/
STEREO
BOOTH LEVEL
BOOTH ATT.
BOOTH OUT
USB DJM-REC
CUE A MASTER
CUE B MASTER
CUE
MAS TER
Master LEVEL
MAS TER
MONO/
STEREO
DIGITAL
REF ER EN CE
LEVEL
DIGITAL
MONO/
STEREO
DIGITAL
PEAK
LIMITER
MAS TER OUT
DI GI TAL MASTE R OUT
MAS TER
PEAK
LIMITER
MASTER ATT.
LEVEL METER MASTER
CLIP MASTER
MAS TER
MONO/
STEREO
REC OUT
MIC 1
MIC 2
LOW CUT
FILTER
MIC EQ
MIC ON/OFF
MULTI I/O SEND MIC
MULTI I/O RETU RN MIC
Detect MIC BPM
MIC LEVEL
DETECT
MI C
USB MIC
MI C
PEAK
LIMITER
MULTI I/O : SEND MASTER
MULTI I/O : SEND CHx
MULTI I/O : SEND MIC
MULTI I/O
CH SELECT
MODE
SEND
LEVEL
MULTI I/O SEND
CH 2/CH 5
INSERT
MULTI I/O(SEND)
RETU R N
LEVEL
MULTI I/O RETU RN MASTER
MULTI I/O RET UR N
MULTI I/O (RETURN)
HEADPHONES A
HEADPHONES B
CUE A CHx
CUE A LINK
CUE A MASTER
+
MONO SPLIT/STEREO
MI XING
LEVEL
HEADPHONES A OUT
CUE B CHx
CUE B LINK
CUE B MASTER
CUE B
ON/ OFF
+
MI XING LEVEL
HEADPHONES B OUT
USB Output
USB Control Tone CHx
USB Post CHx Fader
USB MIX(REC OUT)
USB MIC
USB B OUT
USB A OUT
USB OUTP U T
LEVEL
MULTI I/O
ON/ OFF
SEND RE T UR N
USB CROSSFADER A/B
CH 1-6
USB CROSSFADER A
USB CROSSFADER B
USB FX SEND CHx
BEAT FX
MI C
BOOTH EQ
USB MIX(REC OUT)
SEND SEND CHx
+
USB EXT 1(SEND EXTERNAL)
USB EXT 2(SEND EXTERNAL)
TALK OVER ON/OFF
(INSERT)
(INSERT)
(INSERT)
MULTI I/O SEND CHx
MULTI I/O RETURN CHx
MULTI I/O RETU RN MIC
(INSERT)
CH 2/CH 5
INSERT
MODE
MULTI I/O
to CH INPUT
SEND
BUILT-I N FX
BUILT-IN
to CH INPUT
SEND SEND CH1
USB EXT 1(SEND EXTERNAL)
USB EXT 2(SEND EXTERNAL)
SEND SEND CH2
SEND SEND CH3
SEND SEND CH4
SEND SEND CH5
SEND SEND CH6
+
EXT SEND
EXT 2 SEND
(EXTERNAL)
SEND RE T UR N
to MASTER
MASTER MI X
EXT 1 RETU R N
EXT 2 RETU R N
(EXTERNAL)
+
SEND EXT 1
SEND EXT 2
MASTER MIX LEVEL
to MASTER
OUTPUT
SELECT
EXT 1
EXT 2
to CH INPUT
to CH INPUT
(EXTERNAL)
(EXTERNAL)
IC2401
IC2501
IC2502
AIN ASSY
A
MAIN ASSY
F
AOUT ASSY
O
USBB ASSY
H
SNRT1 ASSY
B
HPJK ASSY
L
HPJM ASSY
M
HPJC ASSY
N
SNRT2 ASSY
C
SNRT3 ASSY
D
SNRT1 ASSY
B
SNRT2 ASSY
C
SNRT3 ASSY
D
USBA ASSY
I
