AlphaTheta DJM-V10 - Page 43

43
DJM-V10
5
6 7 8
5
6 7 8
A
B
C
D
E
F

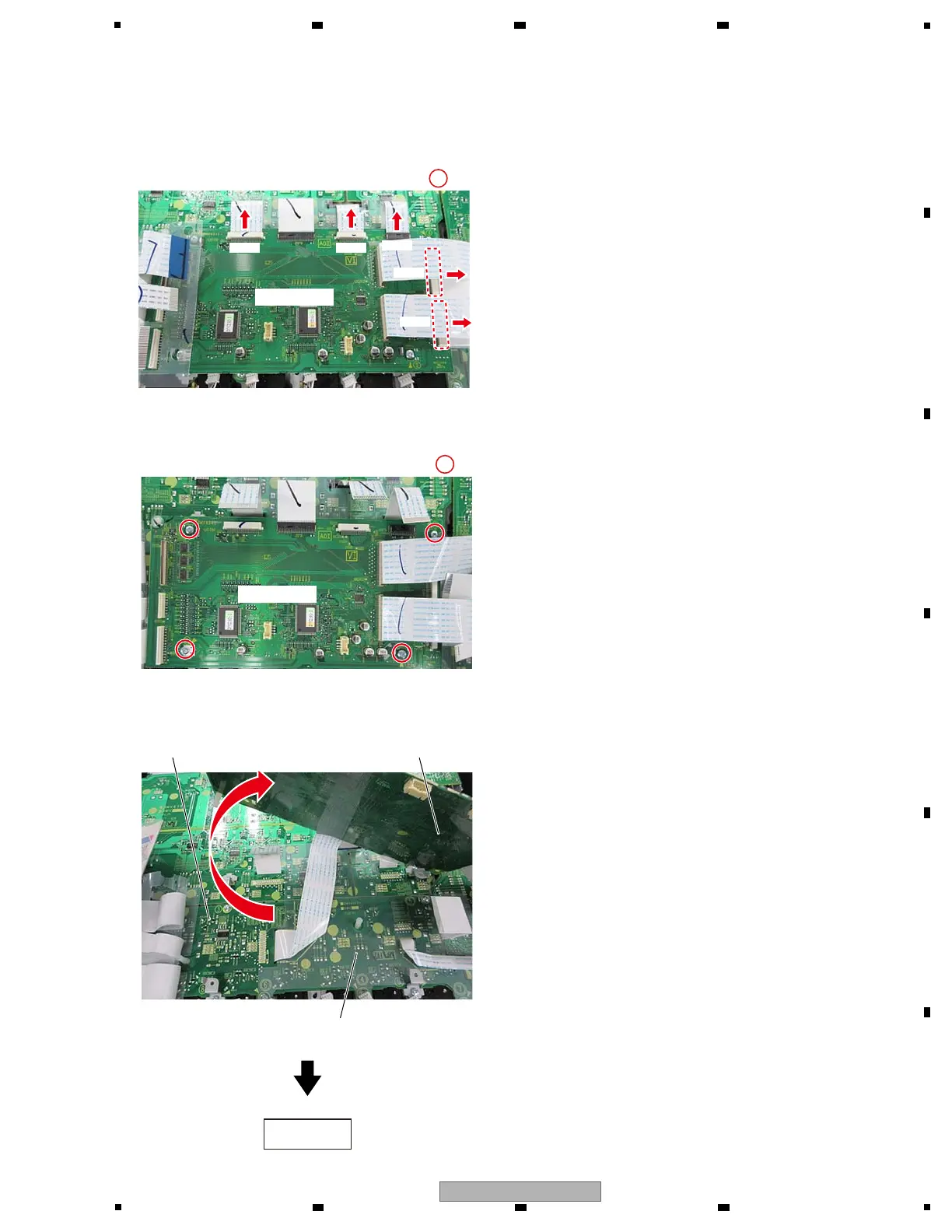

3 Lift up the UCOM Assy, and diagnose CUEVR Assy.
Remove the barrier as needed.
1 Disconnect the 3 FFCs of upper side and 2 FFCs of right
side from UCOM Assy.
(CN8410, 8412, 8414, 8419, 8420)
2 Remove the 4 screws.
(BBZ30P060FTC)
Procedure [2] Switches and Volumes diagnosis of CUEVR Assy
1
×5×5
CN8412CN8412
CN8420
CN8420
CN8410
CN8410
CN8414
CN8414
CN8419
CN8419
UCOM AssyUCOM Assy
Barrier
UCOM Assy
CUEVR Assy
2
×4×4
UCOM AssyUCOM Assy
Diagnosis
