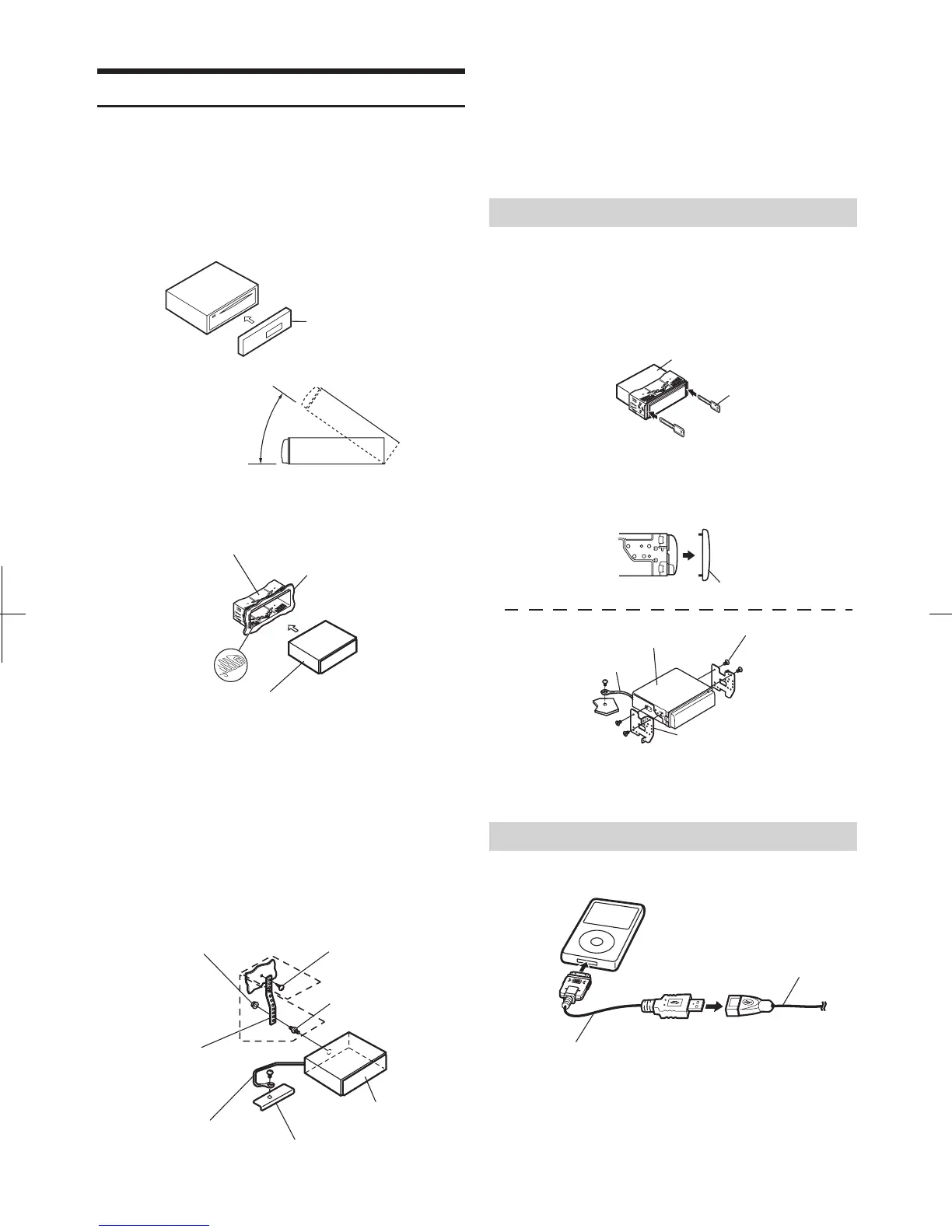

Installation
1
CAUTION
When you install this unit in your car, do not remove the
detachable front panel. If the detachable front panel is removed
during installation, you might press too hard and warp the metal
plate that holds it in place. The main unit must be mounted within
35 degrees of the horizontal plane, back to front.
*
If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
Detachable
Front Panel
Less than 35°
1
Remove the mounting sleeve from the main unit (refer to
“Removal” on page 48).
MountingSleeve(Included)
Dashboard
This unit
Pressure Plates*
2
Reinforce the head unit with the metal mounting strap
(not supplied). Secure the ground lead of the unit to a
clean metal spot using a screw (*1) already attached to the
vehicle’s chassis.
Connect each input lead coming from an amplier or equalizer
to the corresponding output lead coming from the left rear of
the CDA-137EBT. Connect all other leads of the CDA-137EBT
according to details described in the CONNECTlONS section.
*
2
*
1
Hex Nut (M5)
Screw
Bolt Stud
This unit
Chassis
Ground Lead
Metal
Mounting
Strap
Note
•
For the screw marked “*2”, use an appropriate screw for the chosen
mounting location.
3
Slide the CDA-137EBT into the dashboard until it clicks. This
ensures that the unit is properly locked and will not
accidentally come out from the dashboard.
Removal
1
2
Remove the detachable front panel.
Insert the bracket keys into the unit, along the guides on
either side. The unit can now be removed from the
mounting sleeve.
Bracket keys
(Included)
This unit
3
Pull the unit out, keeping it unlocked as you do so.
JAPANESE CAR
*
3
Front Frame
This unit
Ground Lead
Mounting Bracket
Screws (M5 × 8)
(Included)
Note
•
Secure the ground lead of the unit to a clean metal spot using a screw
(*3) already attached to the vehicle’s chassis.
iPod/iPhone Connection (sold separately)
Connect USB cable to an iPod/iPhone with Interface cable for iPod.
Interface cable for iPod (supplied)
USB cable
48
-EN
