Using the Front AUX Input Terminal
Connect a portable music player, etc. by simply connecting it to the
input on the front panel. An optional adapter cable is required (standard
RCA to 3.5ø mini-phono plug or 3.5ø to 3.5ø mini phono plug).
Press SOURCE, and select the AUXILIARY mode to
listen to the portable device.
Notes
• This function is available only when AUX SETUP is set to ON. For
details, refer to “Setting the AUX SETUP Mode” on page 19.
• Do not connect a Flash Memory Device and an AUX Input Terminal
connector at the same time.
Setting
You can customize the unit to suit your own preferences and usage.
From the SETUP menu, GENERAL Setting, DISPLAY Setting, etc., can
be modified.
1 Press and hold AUDIOSETUP for at least 2 seconds to
activate the SETUP mode.
2 Turn the Rotary encoder to select the desired item, and
then press ENTER.
BLUETOOTH
*1
 GENERAL  AUDIO
*2
 DISPLAY  iPod & USB
(e.g. Select GENERAL)
GENERAL:
CLOCK ADJ
*3
 PLAY MODE  AUX SETUP  AUX NAME
*4

AUX GAIN
*4
 POWER IC  DEMO
DISPLAY:
DIMMER  SCROLLTYPE  TEXT SCR
iPod & USB:
USB SEARCH  USB SKIP  PA NDOR A  PANDO RA VL
*5
*1 Refer to “BLUETOOTH SETUP” on page 21.
*2 Refer to “Sound Setting” on page 14.
*3 Refer to “Setting the Time” on page 10.
*4 Displayed only when AUX SETUP is set to ON.
*5 Displayed only when PANDORA is set to ON.
3 Select an Item with the Rotary encoder, and then press
ENTER.
(e.g. Select POWER IC)
4 Turn the Rotary encoder to change the setting, and then
press ENTER.
(e.g. Select POWER IC ON or POWER IC OFF.)
5 Press and hold AUDIOSETUP for at least 2 seconds to
return to normal mode.
Notes
•Press  to return to the previous mode.
• If no operation is performed for 60 seconds, the unit will return to
normal mode automatically.

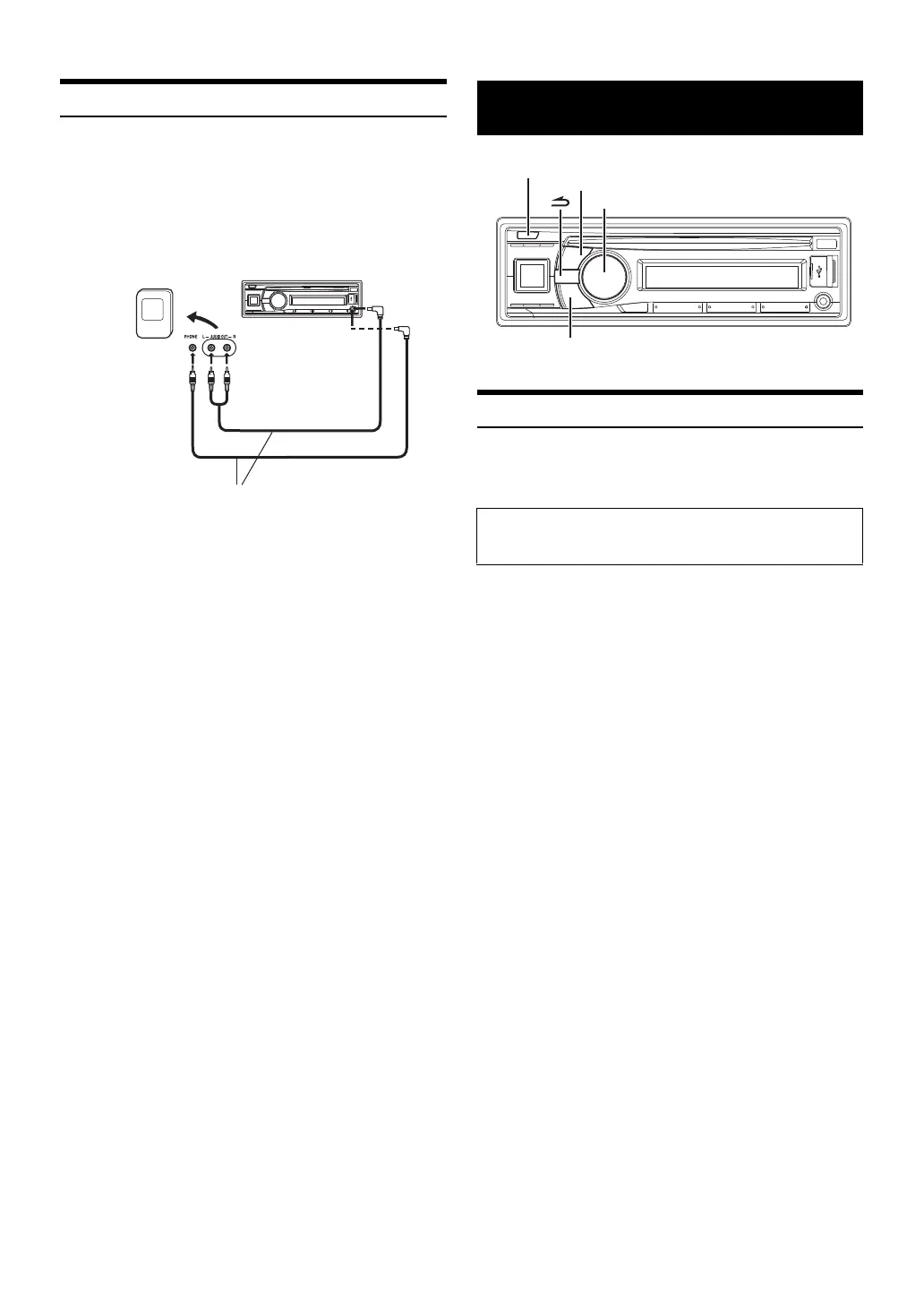

Portable player, etc.
Main unit
or
Optional adapter cable (RCA pin
plugs [red, white] 3.5ø miniplugs)
or (3.5ø miniplugs).
SETUP
Use steps 1 to 5 to select one of the SETUP modes to modify.
See the applicable section below for details about the
selected SETUP item.


AUDIO/SETUP
Rotary encoder//ENTER

Alpine CDE-136BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	DAB+, FM, LW, MW
Preset stations quantity	48
Impedance	4 Ω
Output power	200 W
RDS features	AF, PTY, RT, TA, TP
Product color	Multicolor
Volume control	Digital
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
Display digits	14 digits
Display number of lines	1 lines
Display number of colors	Monochrome
USB version	2.0
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, HSP
USB ports quantity	1
Digital audio optical out	0
Apple docking compatibility	iPad, iPod
Cables included	USB
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPhone / iPod / Nokia
Remote control type	IR
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	161 mm
Width	178 mm
Height	50 mm
Weight	1500 g
