Alpine CDE-136BT User Manual

9-EN
Accessory List
• Head Unit ..................................................................................1
• Power Cable ..............................................................................1
• Microphone ..............................................................................1
• Mounting Sleeve ......................................................................1
• Carrying Case............................................................................1
• Bracket key ...............................................................................2
• Screw (M5 × 8) ..........................................................................4
• Owner’s Manual..................................................................1 set
Turning Power On and Off
Press SOURCE to turn on the unit.
Note
• The unit can be turned on by pressing any other button except  and
e (Release).
Press and hold SOURCE for at least 2 seconds to turn
off the unit.
Note
• The first time power is turned on, the volume will start from level 12.
Source Selection
Press SOURCE to change the source.
TUNER  DISC  USB AUDIO/iPod
*1
 PANDOR A
*2
 BT AUDIO
*3
 AUXILIARY
*4
 TUNER
*1 Displayed only when the iPod/iPhone is connected.
*2 The Pandora
®
source can be displayed only when PANDORA is
set to ON. For details, refer to “Setting the Pandora
®
Source” on
page 20.
*3 Displayed only when AUDIO is set to ON, refer to “Setting the
BLUETOOTH Connection (BT IN)” on page 22.
*4 Refer to “Using the Front AUX Input Terminal” on page 18.

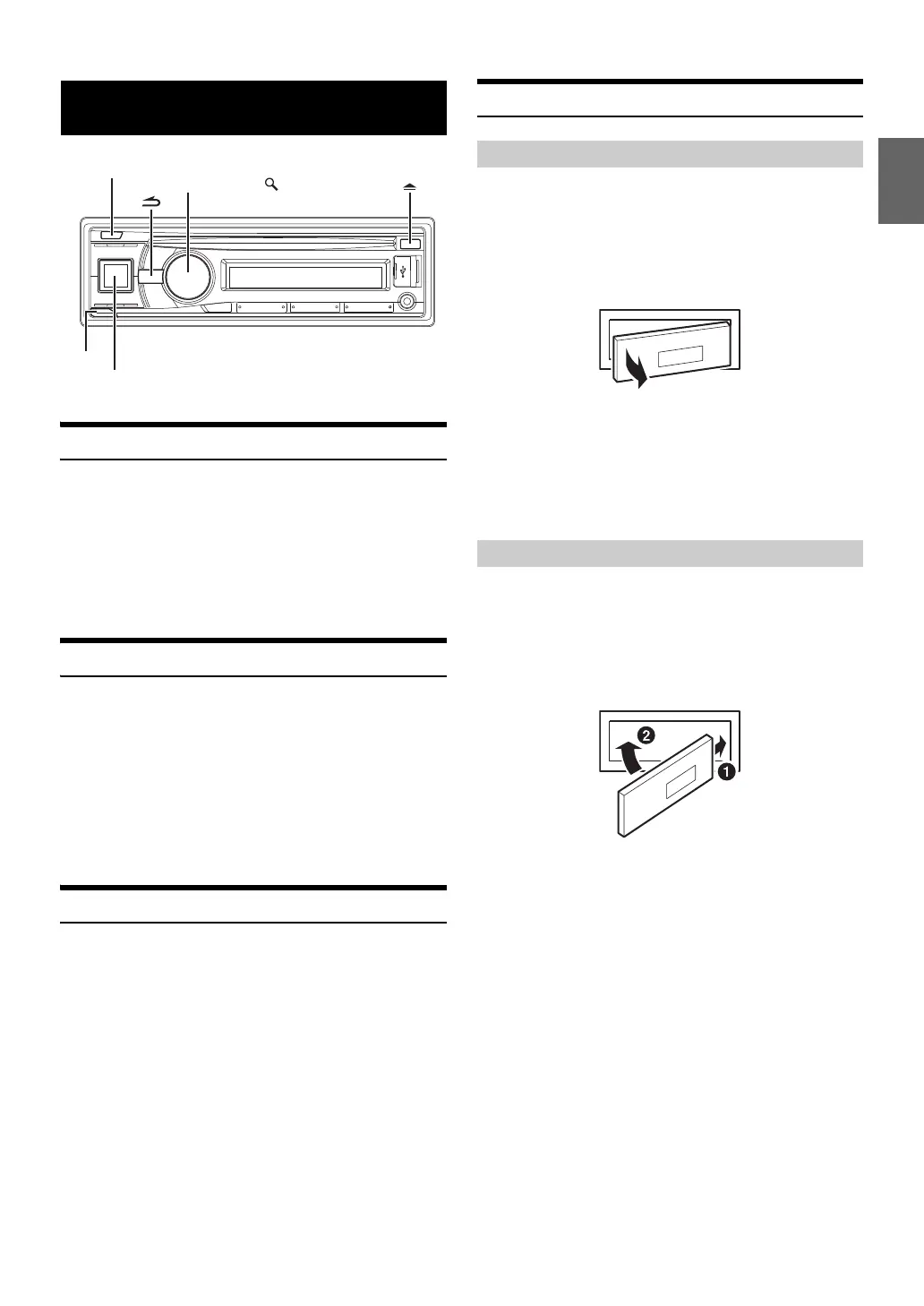

Detaching and Attaching the Front Panel
1 Turn off the unit power.
2 Press e (Release) at the lower left side until the front
panel pops out.
3 Grasp the left side of the front panel and pull it out.
Notes
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
• When detaching the front panel, do not apply excessive force as it may
result in malfunction.
1 Insert the right side of the front panel into the main unit.
Align the groove on the front panel with the projections
on the main unit.
2 Push the left side of the front panel until it locks firmly into
the main unit.
Notes
• Before attaching the front panel, make sure that there is no dirt or dust
on the connector terminals and no foreign object between the front
panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.
Getting Started
SOURCE/
e
AUDIO/SETUP
Rotary encoder/
/ENTER
Detaching
Attaching

Alpine CDE-136BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	DAB+, FM, LW, MW
Preset stations quantity	48
Impedance	4 Ω
Output power	200 W
RDS features	AF, PTY, RT, TA, TP
Product color	Multicolor
Volume control	Digital
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
Display digits	14 digits
Display number of lines	1 lines
Display number of colors	Monochrome
USB version	2.0
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, HSP
USB ports quantity	1
Digital audio optical out	0
Apple docking compatibility	iPad, iPod
Cables included	USB
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPhone / iPod / Nokia
Remote control type	IR
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	161 mm
Width	178 mm
Height	50 mm
Weight	1500 g
