Alpine CDE-136BT User Manual

40-EN
Installation
Caution
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
The main unit must be mounted within 35 degrees of the
horizontal plane, back to front.
1 Remove the mounting sleeve from the main unit (refer to
“Removal” on page 40).
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
2 Reinforce the head unit with a metal mounting strap (not
supplied). Secure the ground lead of the unit to a clean
metal spot using a screw (
*1
) already attached to the
vehicle’s chassis.
Connect each input lead coming from an amplifier or equalizer
to the corresponding output lead coming from the left rear of
the CDE-136BT. Connect all other leads of the CDE-136BT
according to details described in the CONNECTlONS section.
Note
• For the screw marked “
*2
”, use an appropriate screw for the chosen
mounting location.
3 Slide the CDE-136BT into the dashboard until it clicks. This
ensures that the unit is properly locked and will not
accidentally come out from the dashboard.
1 Remove the detachable front panel.
2 Insert the bracket keys into the unit, along the guides on
either side. The unit can now be removed from the
mounting sleeve.
3 Pull the unit out, keeping it unlocked as you do so.
JAPANESE CAR
Note
• Secure the ground lead of the unit to a clean metal spot using a screw
(
*3
) already attached to the vehicle’s chassis.

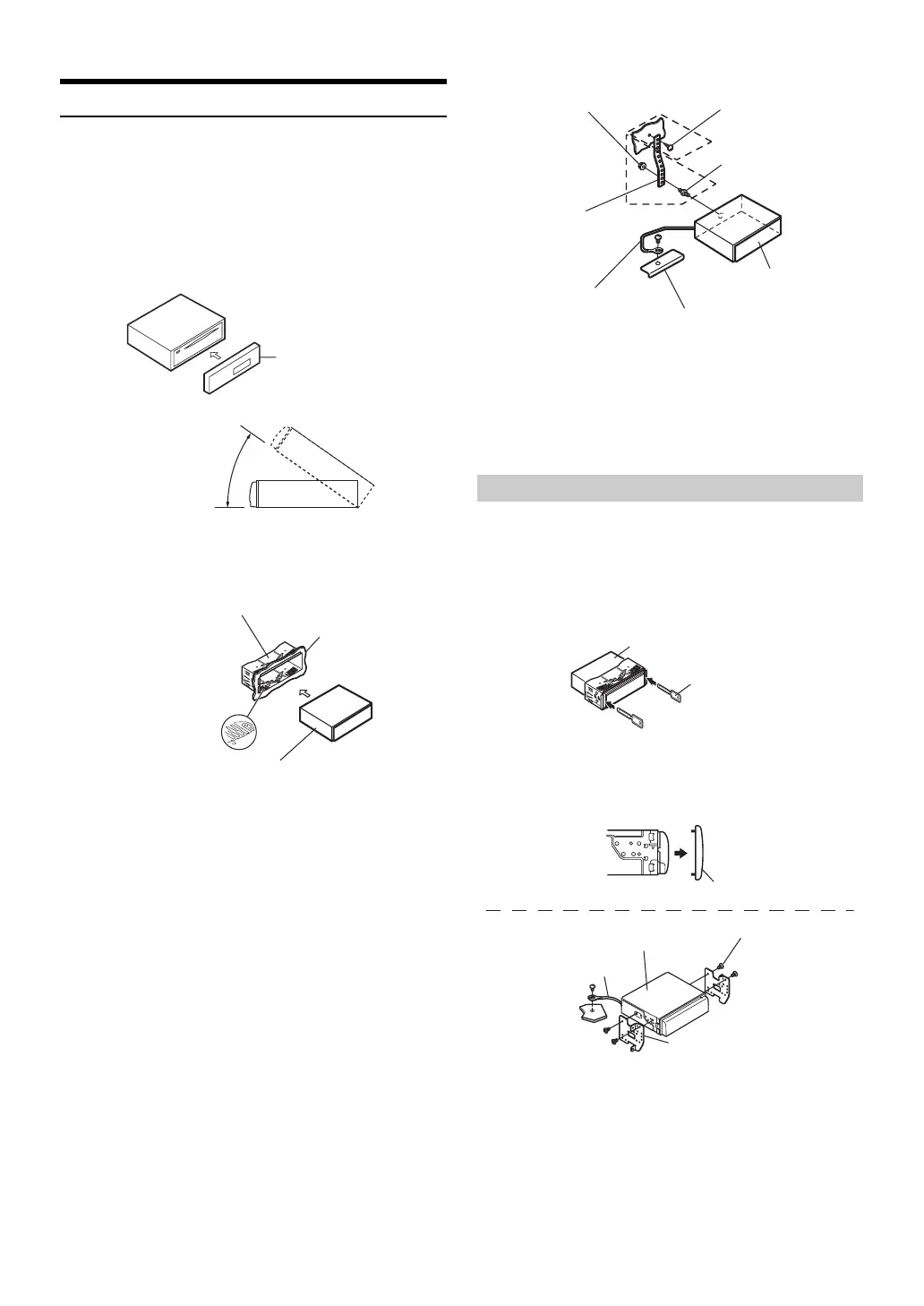

Detachable Front
Panel
Less than 35°
Dashboard
Mounting Sleeve (Included)
Pressure Plates*
This unit
Removal
*
2
*
1
Bolt Stud
Chassis
Ground Lead
Hex Nut (M5)
Metal
Mounting
Strap
Screw
This unit
Bracket keys
(Included)
This unit
*
3
Front Frame
Screws (M5 × 8)
(Included)
This unit
Ground Lead
Mounting Bracket

Alpine CDE-136BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	DAB+, FM, LW, MW
Preset stations quantity	48
Impedance	4 Ω
Output power	200 W
RDS features	AF, PTY, RT, TA, TP
Product color	Multicolor
Volume control	Digital
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
Display digits	14 digits
Display number of lines	1 lines
Display number of colors	Monochrome
USB version	2.0
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, HSP
USB ports quantity	1
Digital audio optical out	0
Apple docking compatibility	iPad, iPod
Cables included	USB
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPhone / iPod / Nokia
Remote control type	IR
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	161 mm
Width	178 mm
Height	50 mm
Weight	1500 g
