Alpine CDE-136BT User Manual

42-EN

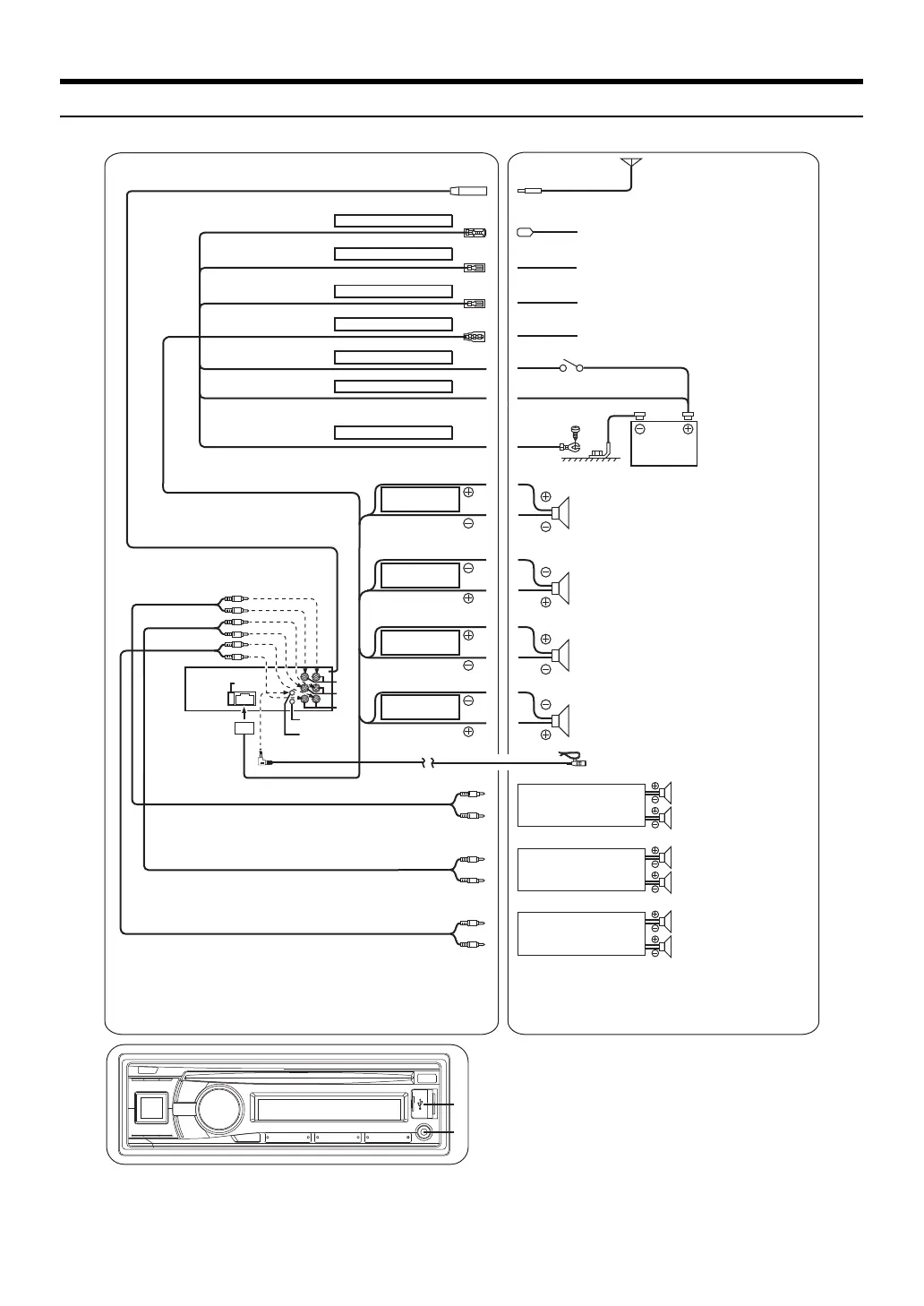

Connections





























ILLUMINATION
GND
BATTERY
REMOTE TURN-ON
AUDIO INTERRUPT IN
IGNITION
POWER ANT
Amplier
Amplier
Amplier
Antenna
(Blue)
To power antenna
(Blue/White)
To amplier
(Pink/Black)
Not used
(Orange)
To the instrument cluster illumination
lead
(Red)
Ignition Key
(Yellow)
(Black)
Battery
(Gray)
Speakers
SPEAKER
RIGHT FRONT
Front Right
(Gray/Black)
(Violet/Black)
SPEAKER
RIGHT REAR
Rear Right
(Violet)
(Green)
SPEAKER
LEFT REAR
Rear Left
(Green/Black)
(White/Black)
SPEAKER
LEFT FRONT
Front Left
Front Right
Rear Right
Rear Left
Front Left
Microphone
(White)
Subwoofers
Speakers

Alpine CDE-136BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	DAB+, FM, LW, MW
Preset stations quantity	48
Impedance	4 Ω
Output power	200 W
RDS features	AF, PTY, RT, TA, TP
Product color	Multicolor
Volume control	Digital
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
Display digits	14 digits
Display number of lines	1 lines
Display number of colors	Monochrome
USB version	2.0
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, HSP
USB ports quantity	1
Digital audio optical out	0
Apple docking compatibility	iPad, iPod
Cables included	USB
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPhone / iPod / Nokia
Remote control type	IR
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	161 mm
Width	178 mm
Height	50 mm
Weight	1500 g
