Alpine CDE-136BT User Manual

27-EN
Connecting Flash Memory (optional)
If a Flash Memory device is connected to the unit, MP3 files can be
played back.
Note
• When TAG is set in “Setting the USB Search Mode” (refer to “Setting the
USB Search Mode” on page 20), “BANKING” is displayed for several
seconds each time a Flash Memory device is connected or Ignition is
cycled.
1 Open the cover of the USB Connection Terminal.
2 Connect the Flash Memory directly to the USB Connection
Terminal, or via the USB cable.
1 Carefully, pull out the Flash Memory from the USB cable or
the USB Connection Terminal.
2 Close the cover of the USB Connection Terminal.
Notes
• Change to a source other than the Flash Memory mode, then remove
the Flash Memory. If the Flash Memory is removed in the Flash
Memory mode, data may be damaged.
• When removing Flash Memory, pull it out straight.
• If sound is not output or Flash Memory is not recognized even when
Flash Memory is connected, remove Flash Memory once, and then
reconnect.
• After removing the Flash Memory, close the cover of the USB
Connection Terminal to prevent dust or foreign objects from entering
and causing a malfunction.
Using the Flash Memory Banking Function
Note
• When a Flash Memory is connected, the following description is
available only when TAG is set in “Setting the USB Search Mode” (refer
to “Setting the USB Search Mode” on page 20).
What is a Bank?
A bank is a unit of up to 1,000 songs, which is stored in memory.
“BANKING” refers to the grouping of songs available in Flash Memory, in
banks of 1,000 songs each. However, unless the following estimates are
followed, the total number of songs stored could be less.
Playlists: 20 (32 characters; 64 bytes)
Genres: 10 (32 characters; 64 bytes)
Composers: 30 (32 characters; 64 bytes)
Artists: 30 (32 characters; 64 bytes)
Albums: 100 (32 characters; 64 bytes)
Titles: 1,000 (32 characters; 64 bytes)
Folders: 100 (32 characters; 64 bytes)
Files: 1,000 (32 characters; 64 bytes)
File Paths: 1,000 (128 characters; 256 bytes)
About Banking
While a bank is being built up, “BANKING” is displayed. Banking occurs
whenever a Flash Memory device is connected or after power to the
head unit turns on.
It can take anywhere from a few seconds to up to several minutes for
banking to complete. This depends on the number of files and folders
in Flash Memory.
Available operations while Banking
• During Banking, the information display changes so the VIEW
operation is not available.
• With a song playing, Regular fast-forwarding and next song selection is
available.
• While Banking, the song playback order may differ from the song order
in the Flash Memory device.
• Searching is not recommended during the Banking process as the
database is under construction at this time, and malfunction may result
in some cases.

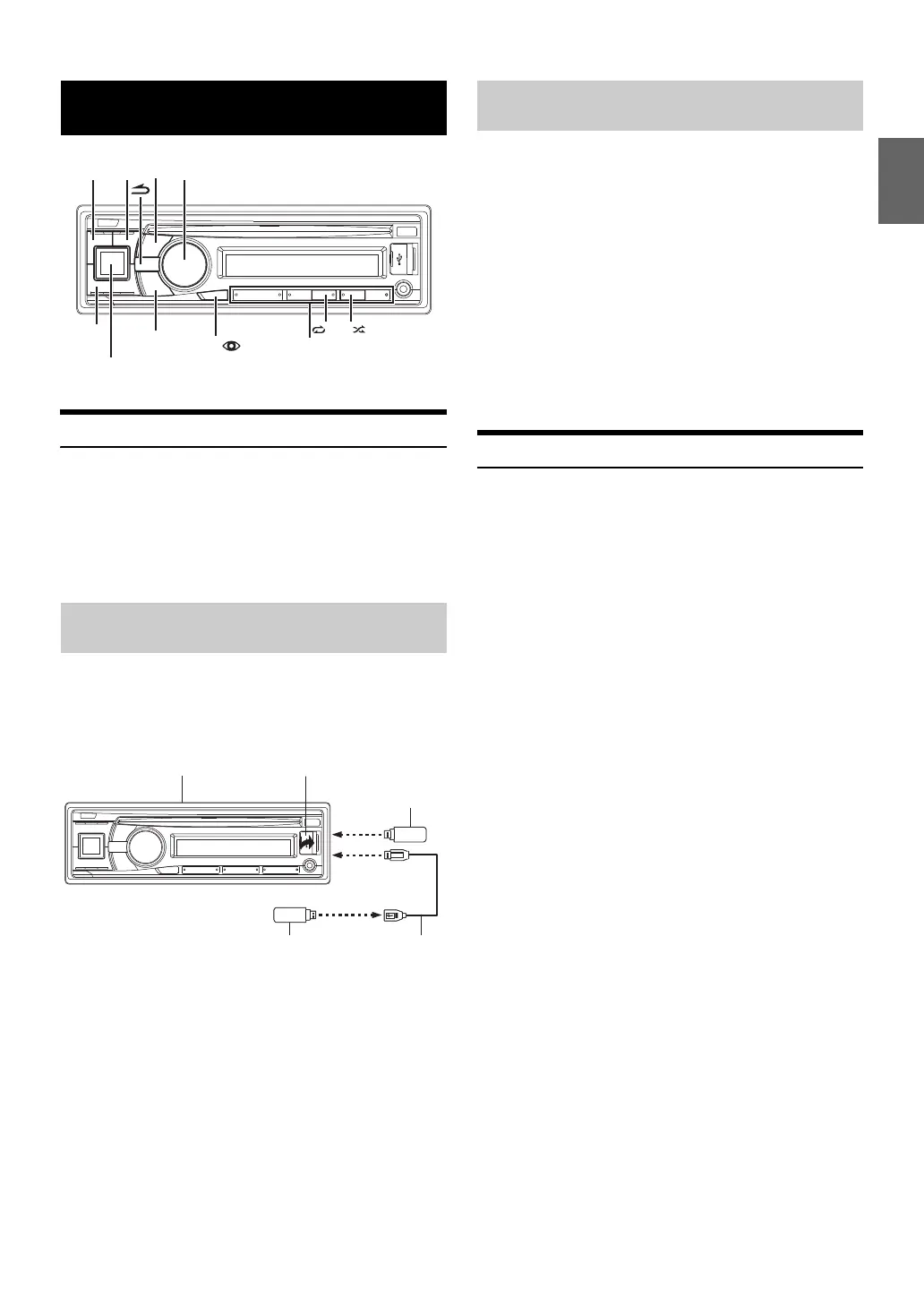

Flash Memory (optional)
How to connect Flash Memory to Front
USB Connection Terminal


SOURCE/

Rotary encoder/
/ENTER

VIEW
Preset buttons
(1 through 6)
4 5


USB Connection TerminalThis unit
Flash Memory
(sold separately)
or
Flash Memory
(sold separately)
Cable (sold
separately)
Remove Flash Memory from Front USB
Connection Terminal

Alpine CDE-136BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	DAB+, FM, LW, MW
Preset stations quantity	48
Impedance	4 Ω
Output power	200 W
RDS features	AF, PTY, RT, TA, TP
Product color	Multicolor
Volume control	Digital
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
Display digits	14 digits
Display number of lines	1 lines
Display number of colors	Monochrome
USB version	2.0
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, HSP
USB ports quantity	1
Digital audio optical out	0
Apple docking compatibility	iPad, iPod
Cables included	USB
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPhone / iPod / Nokia
Remote control type	IR
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	161 mm
Width	178 mm
Height	50 mm
Weight	1500 g
