GENERAL is selected on the setup main menu in step 2.
Playing MP3 Data (PLAY MODE)
This unit can play back CDs containing both CD and MP3 data (created
in Enhanced CD (CD Extra) format). However, in some situations,
playback of an enhanced CD may be difficult. In this case, you can
choose to play back the CD data session only. When a disc contains both
CD and MP3 data, playback starts from the CD data portion of the disc.
 Setting item: PLAY MODE
Setting contents:
CD-DA (Initial setting) / CDDA/MP3
CD-DA:
Only the CD data in Session 1 can be played back.
CDDA/MP3:
CD data, MP3 files in mixed mode, and multi-session discs can be
played back.
Note
• Perform this setting before inserting a disc. If a disc has already been
inserted, remove it first.
Setting the AUX SETUP Mode
You can input the audio of an external device, (such as a Portable audio
player) to the AUX connector of this unit.
 Setting item: AUX SETUP
Setting contents:
ON (Initial setting) / OFF
ON
*
:
Set to ON when a portable device is connected. If SOURCE is
pressed and AUX is selected, the sound of the portable device is
input to the unit.
* You can change the AUX NAME display when AUX SETUP is
set to ON. Press ENTER when AUX SETUP is set to ON,
and select AUX NAME by turning the Rotary encoder, then
press ENTER. After that, turn the Rotary encoder to
select the desired AUX NAME.
Note
• When the PORTABLE is set, PMD is displayed on the unit.
OFF:
When set to OFF, AUX source cannot be selected.
Setting the AUX Level (AUX GAIN)
After setting to ON in “Setting the AUX SETUP Mode”, this setting can
be carried out.
 Setting item: AUX GAIN
Setting contents:
LOW (Initial setting) / HIGH
LOW:
Decreases the external input audio level.
HIGH:
Increases the external input audio level.
Connecting to an External Amplifier (POWER IC)
When an external amplifier is connected, sound quality can be
improved by reducing the current draw of the built-in amplifier.
 Setting item: POWER IC
Setting contents:
ON (Initial setting) / OFF
ON:
The speakers are driven by the built-in amplifier.
OFF:
Use this mode when the line output of this unit is used to drive an
external amplifier. In this setting, the head unit’s internal amplifier
is turned OFF and cannot drive speakers.
ON:
OFF:
Note
• No sound is produced by the system when the power output is set to
OFF.
Demonstration
This unit has a demonstration feature for the display.
 Setting item: DEMO
Setting contents:
DEMO ON / DEMO OFF (Initial setting)
Note
• To quit Demo mode, set to DEMO OFF.

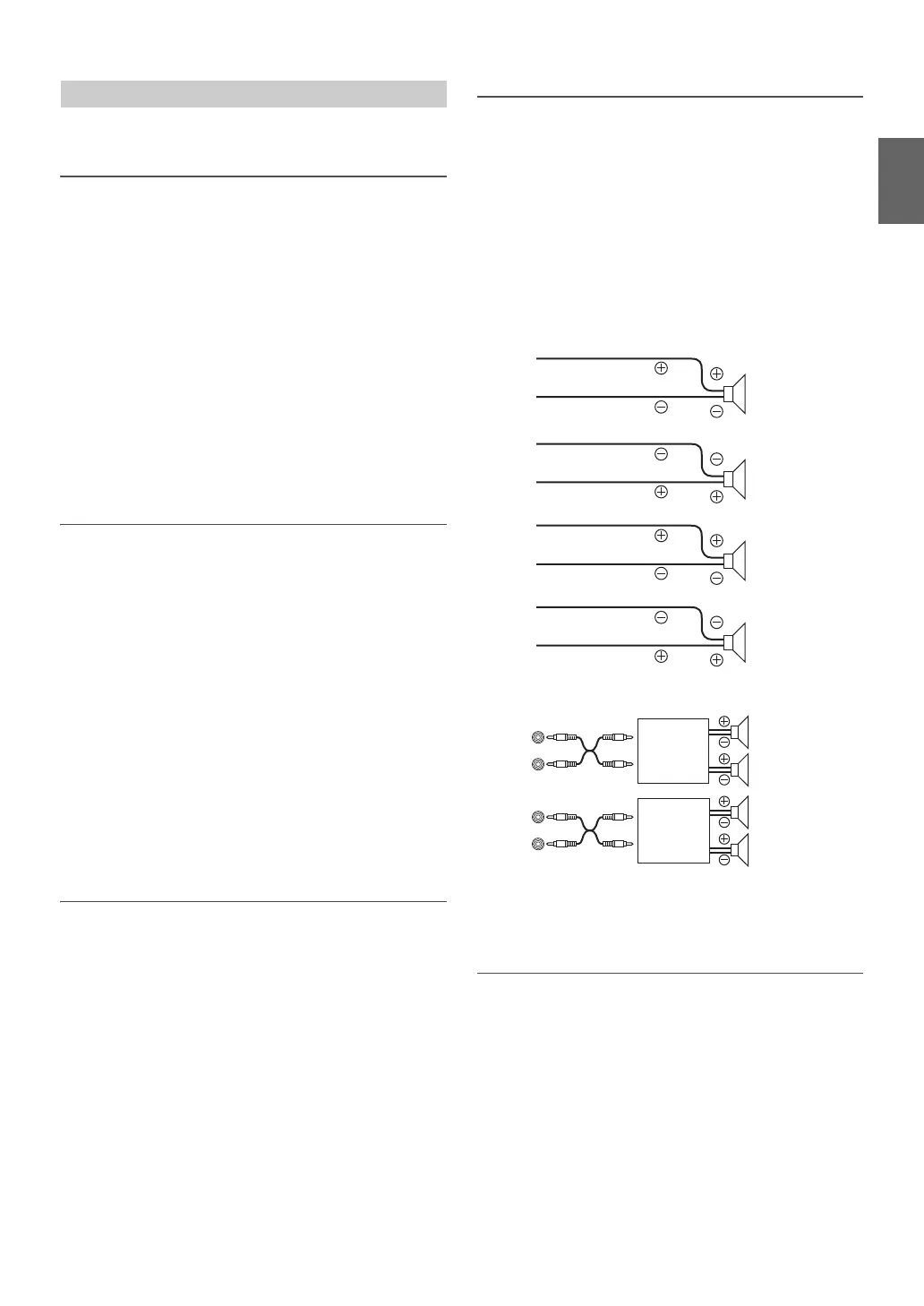

General Setting
Speakers
SPEAKER
RIGHT FRONT
Front
Right
SPEAKER
RIGHT REAR
Rear
Right
SPEAKER
LEFT REAR
Rear
Left
SPEAKER
LEFT FRONT
Front
Left
Front
Left
Amplier
Front
Right
Rear
Left
Amplier
Rear
Right

Alpine CDE-136BT Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Video formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	DAB+, FM, LW, MW
Preset stations quantity	48
Impedance	4 Ω
Output power	200 W
RDS features	AF, PTY, RT, TA, TP
Product color	Multicolor
Volume control	Digital
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
Display digits	14 digits
Display number of lines	1 lines
Display number of colors	Monochrome
USB version	2.0
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, HSP
USB ports quantity	1
Digital audio optical out	0
Apple docking compatibility	iPad, iPod
Cables included	USB
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPhone / iPod / Nokia
Remote control type	IR
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	161 mm
Width	178 mm
Height	50 mm
Weight	1500 g
