Accessory List
• ICS-X8..................................................................................1
• Power cable.........................................................................1
• Mounting sleeve ..................................................................1
• Bracket key..........................................................................2
• Flush head screw (M5x8) ....................................................6
• Screw (M5×8) ......................................................................8
• Face plate............................................................................1
• AUX/PRE OUT cable ...........................................................1
• Camera cable ......................................................................1
• USB extension cable (L type)..............................................1
• USB extension cable (I type)...............................................1
• iPod/iPhone connection cable.............................................1
• iPod VIDEO AV extension cable ..........................................1
• Microphone..........................................................................1
• Owner’s Manual .............................................................1 set

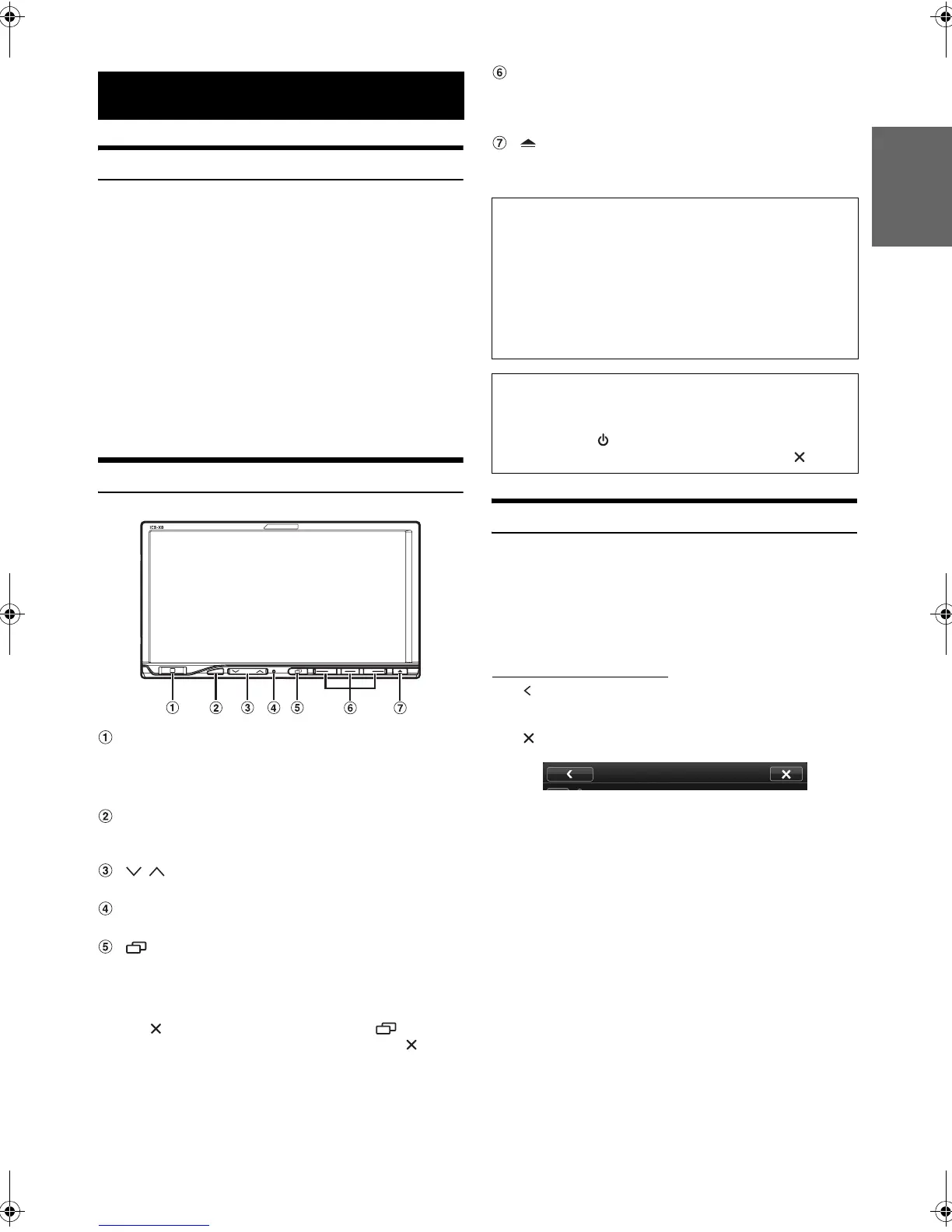

Location of Controls
Home/C button
Touch the Home button to call up Favorites.
Press the Home button to call up the Home Screen.
Press and hold for at least 5 seconds to turn the power off.
Remote Sensor
Point the remote control transmitter towards the remote
sensor within a range of 2 metres.
/ button
Press to adjust the volume.
RESET switch
The system of this unit is reset.
(Media View) button
• When using the Navigation system:
Pressing toggles between the Navigation screen and
Audio/Visual screen.
• When not using the Navigation system:
If appears on the screen, pressing the button will
close the screen in the same way as touching [].
Media Control button 1/2/3
This action varies according to the Audio/Visual application.
(Track Up/Down, PLAY/PAUSE, Fast reverse/Fast forward,
etc)
button
Recalls the Open/Tilt screen. Executes display open/close,
angle adjustment, and disc eject.
Touch operation
You can operate the system by using the touch panel on the screen.
• Be sure to touch the onscreen button lightly with the pad of your
finger to protect the display.
• If you touch a button and there is no reaction, remove your finger
from the display once, and try again.
• Onscreen buttons that cannot be operated appear dull in colour.
Common onscreen buttons
[]:Returns to the previous screen. Depending on the
function, this button may cancel the operations
performed on the screen.
[]:Closes the window.
Getting Started
Optional Remote Control Interface Box
This unit is operable using the vehicle’s secondary radio controls.
An Alpine Remote Control Interface Box (optional) is required. For
details, contact your Alpine dealer.
Controllable with Remote Control
This unit can be controlled with an optional Alpine remote control.
For details, consult your Alpine dealer. Point the optional remote
control transmitter at the remote control sensor.
About the button descriptions used in this Owner’s
Manual
The buttons found on the face of the unit are expressed in
bold (e.g. Home/ ). The buttons found on the touch-screen
display are shown in bold within brackets, [ ] (e.g. []).
