63-EN
01GB06ICS-X8.fm
ALPINE ICS-X8 68-13530Z91-A (EN)

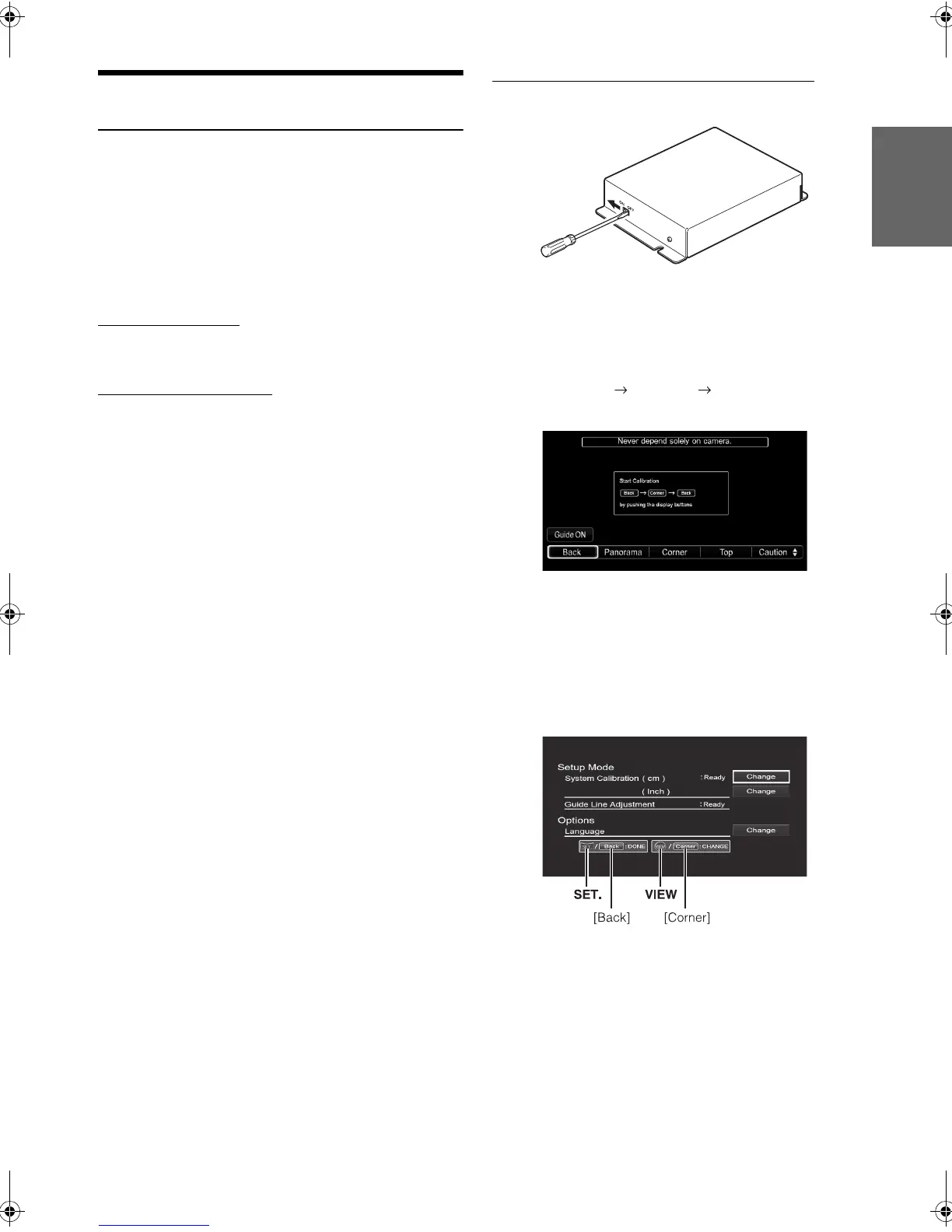

Calibration when connected to HCE-
C300R
Obstacle detection performance adjustment and guidance mark settings
of HCE-C300R (REAR VIEW CAMERA SYSTEM) require that
camera installation information be entered and calibration performed. If
camera information is not entered, accurate detection will not be
possible, so be sure to perform calibration. For details on calibration,
refer to “Calibration” in the owner’s manual of HCE-C300R. To
perform calibration with the supplied switch, refer to “Performing
Calibration” in the owner’s manual of HCE-C300R. When connected to
this unit, you can perform operations via the screen of this unit.
About the Connection
Refer to “Connection of HCE-C300R” (page 91) for details on
connecting the unit to HCE-C300R.
About the Camera Settings
Before performing calibration, set the camera. Set “Direct Camera” to
“Rear.” Refer to “Setting the Camera Input” (page 45).
To activate the Calibration Setup Mode of this unit
1
Set the SETUP switch of the control unit to “ON.
2
Set the ignition key to ACC ON.
The camera system starts in calibration mode.
3
Touch any area of the screen to display the onscreen
buttons.
4
Touch [Back] [Corner] [Back], following the
instructions on the screen.
The Setup Mode screen appears.
Continue with the following operations after performing step 4 in
“Performing Calibration” of the owner’s manual of HCE-C300R.
During these operations, touch the button on the screen to select
“CHANGE” or “DONE” to perform calibration on this unit.
Touching [Corner] and [Back] on the screen of this unit performs
the same operation as pressing the switch which is supplied by
HCE-C300R.
[Corner] =VIEW:Selects a desired item. (The selected switch is
enclosed by a yellow frame.)
[Back] = SET.: Executes the selection.
01GB00ICS-X8.book Page 63 Wednesday, November 9, 2011 7:39 PM
