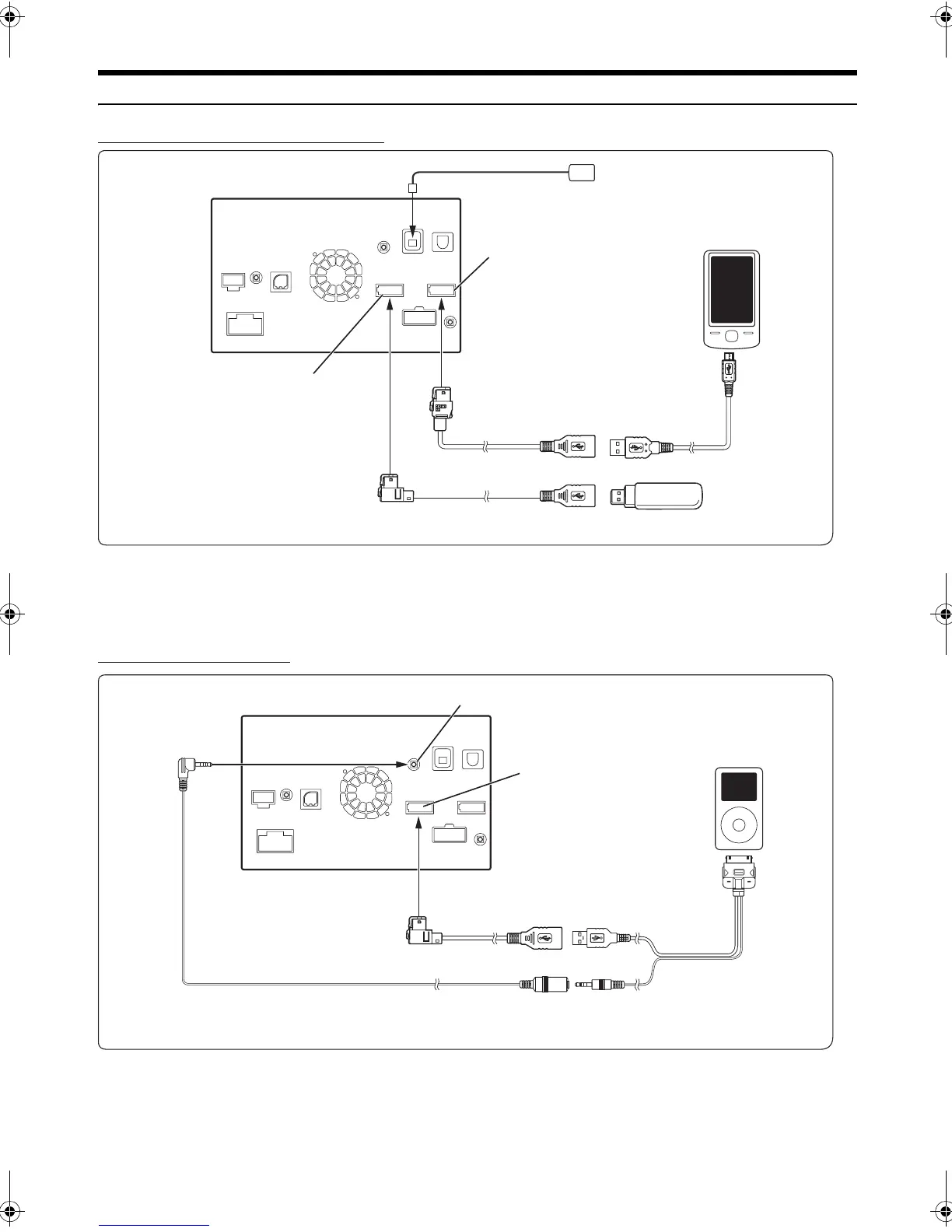

System Example
Connection of a USB Memory, NOKIA Phone
•
Attach USB extension cables (L type) to the USB1 connector of the this unit and USB extension cables (I type) to the USB2 connector of the this unit.
• Do not leave USB memory, Nokia Phone in a vehicle for a long time. Heat and humidity may damage the USB memory, Nokia Phone.
• iPods, iPhones, USB memory devices, and Nokia Phones are connectable with a USB connector. Both USB1 and USB2 can receive connections in
the same way. However, you cannot connect 2 iPod/iPhone units or 2 Nokia Phones.
• To connect an Nokia phone, an optional connection kit KCU-230NK is required.
Connection of an iPod/iPhone
*
1
If iPod VIDEO is supported, use the iPod VIDEO extension cable.
•
Attach USB extension cables (L type) to the USB1 connector of the this unit and USB extension cables (I type) to the USB2 connector of the this unit.
• Do not leave a iPod/iPhone in a vehicle for a long time. Heat and humidity may damage the iPod/iPhone and you may not be able to play it again.
• iPods, iPhones, USB memory devices, and Nokia Phones are connectable with a USB connector. Both USB1 and USB2 can receive connections in
the same way. However, you cannot connect 2 iPod/iPhone units or 2 Nokia Phones.
USB connector (USB2)
USB Memory (Sold separately)
USB extension cable (L type)
(Included)
USB connector (USB1)
USB extension cable (I type)
(Included)
Nokia Phone
connection kit
KCU-230NK
(Sold separately)
GPS Antenna (Sold separately)
Nokia Phone
(Sold separately)
KAE-100GPS
USB connector (USB1)
USB extension cable (Included)
iPod VIDEO AV extension cable*
1
(Included)
iPod/iPhone connection cable
(Included)
iPod/iPhone
(Sold separately)
iPod VIDEO input connector
