You can connect a video-capable iPod to enjoy video as well as music.
When the ICS-X8 is connected by the above cable, the controls on the
iPod are disabled.
• Internet or telephone functions, etc., of the iPhone or iPod touch are
not controllable from the unit, but these functions can be controlled
using the iPhone or iPod touch itself.
• To watch the video screen of the file in the iPod/iPhone, the parking
brake must be engaged.
• For automatic transmission vehicles, place the transmission lever in
the Park position.
About iPod/iPhone models usable with this unit
• The following devices have been tested and shown to work
with this unit. Correct function of earlier versions cannot be
guaranteed.
iPod nano 6th generation 8GB/16GB: Ver.1.1
iPod touch 4th generation 8GB/32GB/64GB: Ver.4.3.1
iPod touch 3rd generation 8GB/32GB/64GB: Ver.4.3.1
iPod nano 5th generation(video camera) 8GB/16GB: Ver.1.0.2
iPod classic(Late2009) 160GB: Ver.2.0.4
iPod touch 2nd generation 8GB/16GB/32GB/64GB: Ver.4.2.1
iPod nano 4th generation(video) 8GB/16GB: Ver.1.0.4
iPod touch 1st generation 8GB/16GB/32GB: Ver.3.1.3
iPod nano 3rd generation(video) 4GB/8GB: Ver.1.1.3
iPod classic 80GB/160GB: Ver.1.1.2
iPod classic 120GB: Ver.2.0.1
iPod nano 2nd generation(aluminum) 2GB/4GB/8GB: Ver.1.1.3
iPod 5th generation(video) 60GB/80GB: Ver.1.3
iPod 5th generation(video) 30GB: Ver.1.3
iPod nano 1st generation 1GB/2GB/4GB: Ver.1.3.1
• The following devices have been tested and shown to work
with this unit. Correct function of earlier versions cannot be
guaranteed.
iPhone 4 16GB/32GB: Ver.4.3.1
iPhone 3GS 8GB/16GB/32GB: Ver.4.3.1
iPhone 3G 8GB/16GB: Ver.4.2.1
iPhone 4GB/8GB/16GB: Ver.3.1.3
• For clarity in identifying your model of iPod, please see
Apple’s own document “Identifying iPod models” at
http://support.apple.com/kb/HT1353.

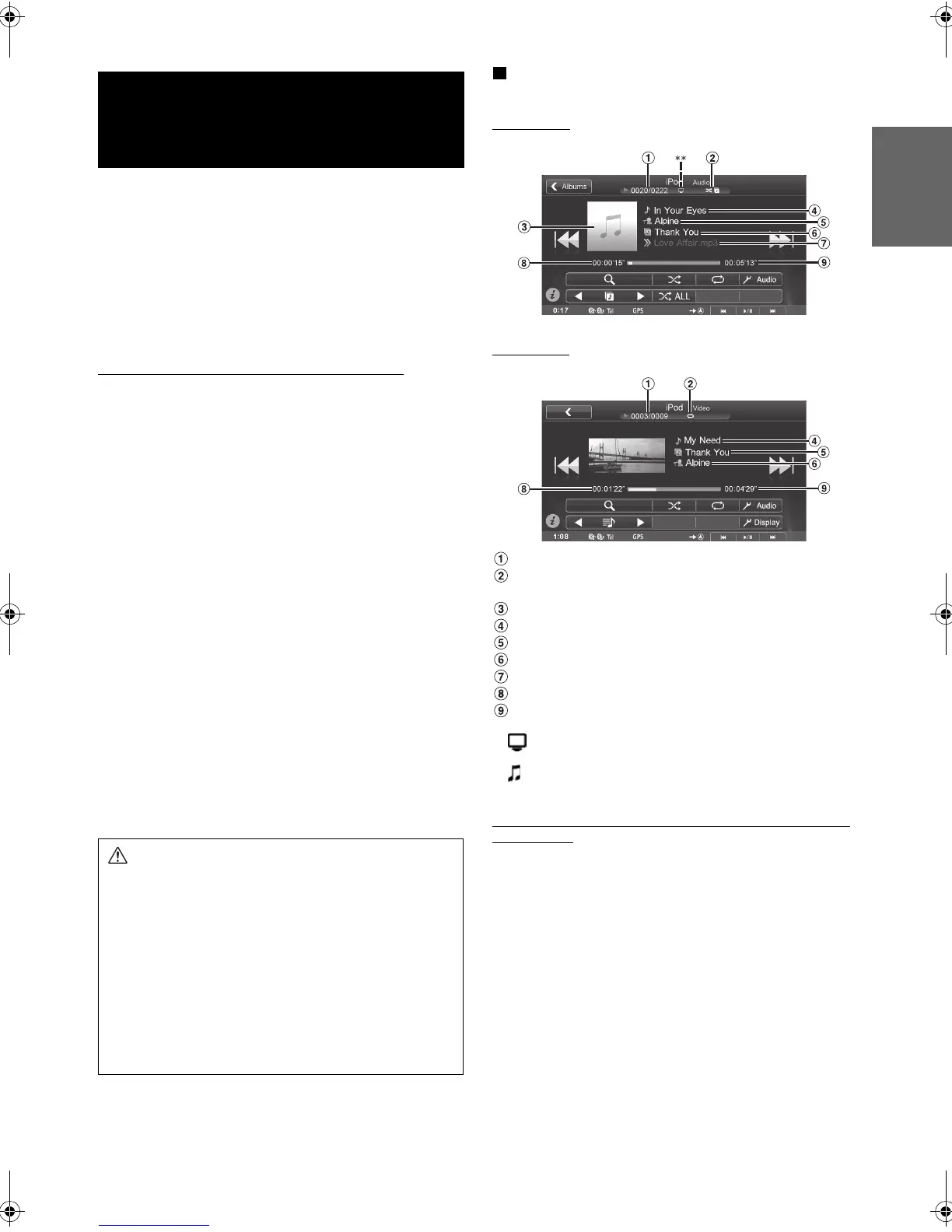

Display example for iPod/iPhone main screen (Info
mode)
Audio mode
Video mode
Current song no./Total song no.
Status Indicator
The Indicator displays during Repeat and Shuffle playback.
Artwork display
Song title/Episode title*
Artist title/Release Date*
Album title/Podcast title*
Next file (song) title
Elapsed time
Total playback time
* Podcast mode
** : During audio-only playback of a video file in a Playlist, the
Video icon is displayed.
: During audio-only playback of a music file in a video Playlist,
the Music icon is displayed.
The iPod/iPhone operation screen display during video
file playback
Touch the screen while the iPod/iPhone playback screen
is displayed.
The iPod/iPhone operation screen is displayed.
• The operation screen changes to the visual screen in the iPod mode
for 5 seconds after an operation has been performed.
iPod/iPhone
(Optional)
WARNING
It is dangerous for the driver to watch video while
driving the vehicle. The driver may be distracted from
looking ahead and an accident could occur.
Install the ICS-X8 correctly so that the driver cannot
watch Video unless the vehicle is stopped and the
emergency brake is applied.
If the ICS-X8 is not installed correctly, the driver will
be able to watch the Video while driving the vehicle
and may be distracted from looking ahead causing an
accident. The driver or other people could be severely
injured.
01GB00ICS-X8.book Page 67 Wednesday, November 9, 2011 7:39 PM
