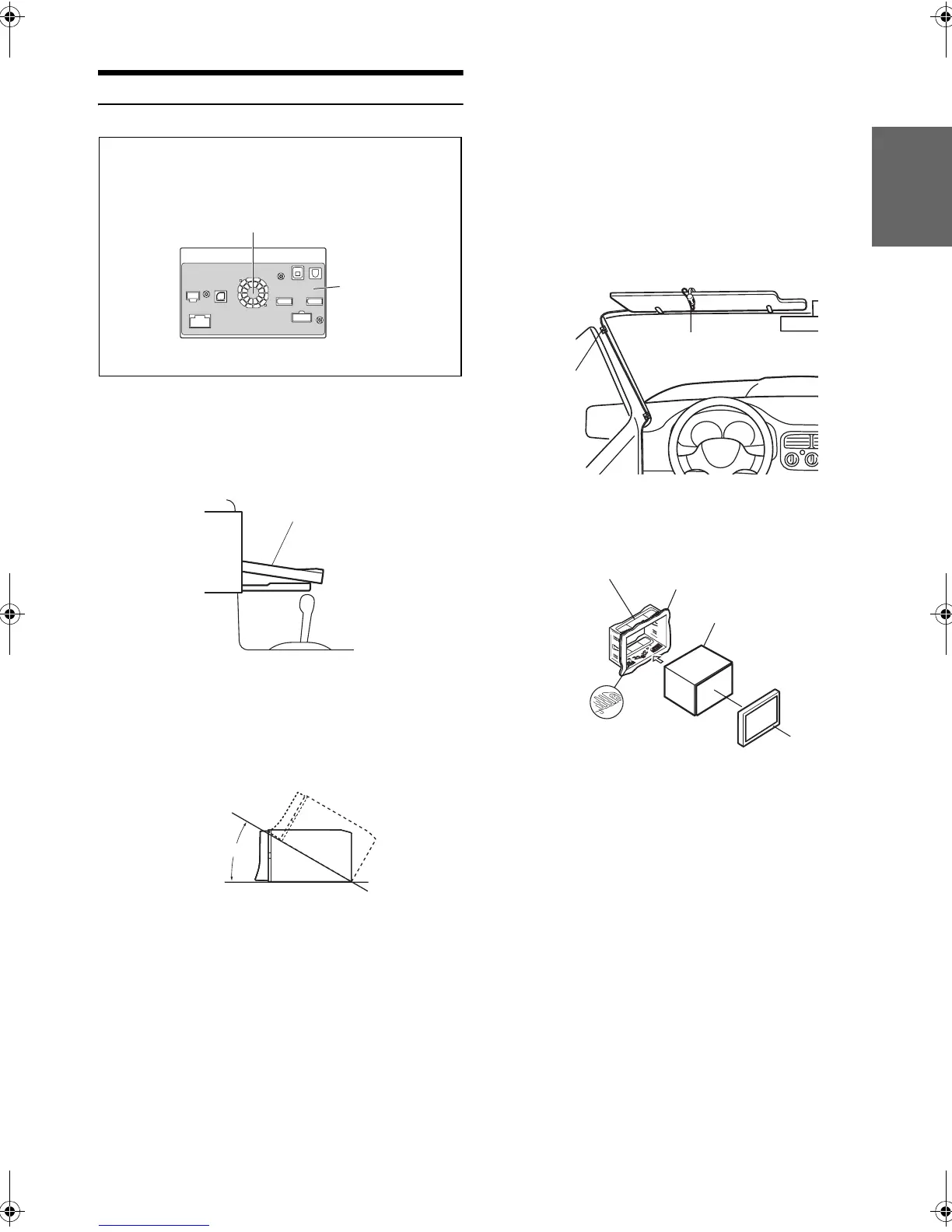

Installation
Caution concerning the installation location
1 Before installing, make sure that the opening and
closing of the display will not interfere with
operation of the gear shift.
2 Angle of installation
Install at an angle between horizontal and 30°. Note
that installing at an angle outside of this range will
result in a loss of performance and possibly
damage.
3 Mounting the Microphone.
For safe use, make sure of the following:
• location is stable and firm.
• driver’s view and operations are not obstructed.
• microphone is located where the driver’s voice can be easily
picked up (on the sun visor, etc.).
When you speak into the microphone, you should not have
to change your driving posture. This may cause a
distraction, taking your attention away from safely driving
your vehicle. Carefully consider direction and distance while
mounting the microphone. Confirm that the driver’s voice
can be easily picked up at the selected location.
4 Remove the mounting sleeve from the main unit (see
“Removal” on page 82).
Slide the unit into the mounting sleeve and secure it.
*
1
If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
*
2
The supplied face plate may be mounted.
Caution
Do not block the unit’s fan or heat sink, thus preventing
air circulation. If blocked, heat will accumulate inside
the unit and may cause a fire.
Air ventilation hole
Rear of the Unit
Heat sink
Movable Display
0 -30°
Cable clamp
(Sold separately)
Microphone
Mounting Sleeve
(Included)
Dashboard
Face Plate*
2
(Included)
This unit
Pressure
Plates
*
1
01GB00ICS-X8.book Page 81 Wednesday, November 9, 2011 7:39 PM

Alpine ICS-X8 Specifications

General

MP3 playback	Yes
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WMA
Video formats supported	AVI, DIVX
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	AM, LW, MW
Preset stations quantity	30
Output power	200 W
RDS features	AF, EON, PTY, TA, TP
Product color	Black
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	2.0 channels
Equalizer bands quantity	9
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	100 dB
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FIN, FRE, ITA, NOR, POR, RUS, SWE
USB version	2.0
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP, SPP
USB ports quantity	2
Apple docking compatibility	Not supported
Cables included	USB
File format system	FAT 16/32
Power requirements	14.4V DC
Compatible products	iPod touch 4G/3G/2G/1G\\r iPod nano 6G/5G/4G/3G/2G/1G\\r iPod classic\\r iPod video\\r iPhone 4\\r iPhone 3GS\\r iPhone 3G\\r iPhone\\r Nokia 700, 701, 603, 808\\r Nokia N9, N8, E6, E7, X7, C6-01, C7
Operating temperature (T-T)	-20 - 60 °C

Weight and Dimensions

Weight	2600 g
Dimensions (WxDxH)	178 x 159 x 100 mm
