33-EN
01GB05ICS-X8.fm
ALPINE ICS-X8 68-13530Z91-A (EN)

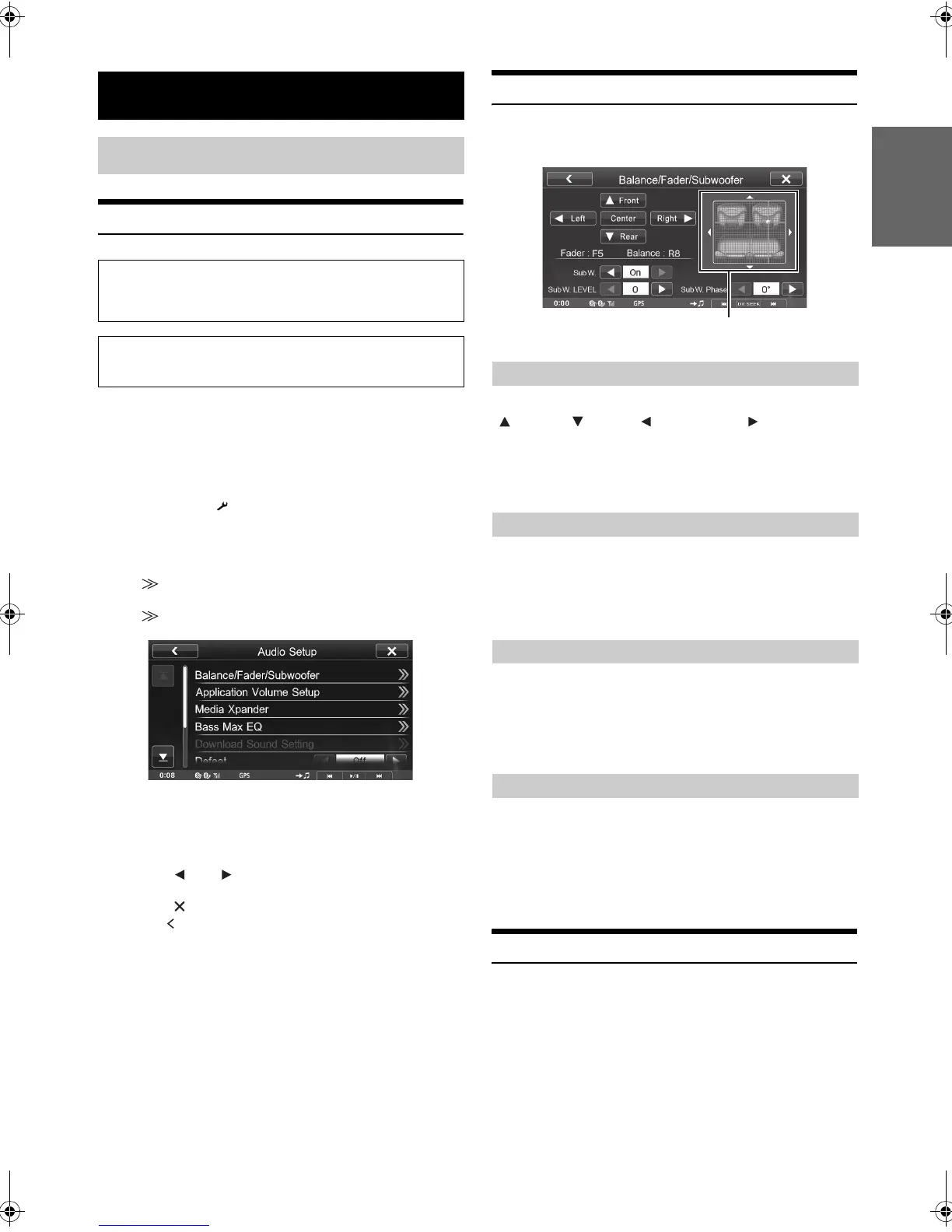

Audio Setup Operation
1
Touch [Setup] on the Home screen.
The Setup main screen is displayed.
2
Touch [Audio Setup].
The Audio Setup screen appears.
• You can display the Audio Setup screen from each application
screen. Touch [ Audio] on any application screen. Adjust the
settings for any function other than Time Correction, X-OVER,
or Parametric EQ.
3
Select the desired item.
If “ ” appears, there is next hierarchy. Touch the desired
item.
If “ ” does not appear, proceed to step 4.
Setting items: Balance/Fader/Subwoofer / Application Volume
Setup / Media Xpander / Bass Max EQ / Download
Sound Setting / Defeat / Time Correction / X-OVER
/ Parametric EQ
4
Touch [] or [] etc., to change its setting.
5
Touch [] to return to the main application screen.
Touch [] to return to the previous screen.
• Immediately after changing the Audio Setup (while the system is
writing data automatically) do not turn the ignition key to OFF.
Otherwise, the settings may not be changed.
• For details on how to scroll through the list, refer to “Selecting an
Item in a List” (page 20).
Setting the Balance/Fader/Subwoofer
[Balance/Fader/Subwoofer] is selected on the Audio setup menu in
step 3. Refer to “Audio Setup Operation” (page 33).
Touch the desired point within the image area. Or touch
[ Front] [ Rear] [ Left] [Right ].
Balance: L15 to R15
Fader: F15 to R15
• To reset to the initial setting (Balance: 0, Fader: 0), touch [Center].
If an optional subwoofer is connected to the unit, make the following
setting.
Setting item: SubW.
Setting contents: On / Off (Initial setting: Off)
You can set the Subwoofer level when a Subwoofer is connected.
Setting item: SubW. LEVEL
Setting contents: 0 to 15 (Initial setting: 0)
• If the Subwoofer setting is “Off,” the setting cannot be set.
The subwoofer output phase is toggled Subwoofer Normal (0°) or
Subwoofer Reverse (180°).
Setting item: SubW. Phase
Setting contents: 0° / 180° (Initial setting: 0°)
• If the Subwoofer setting is “Off,” the setting cannot be set.
Setting the Volume for Each Application
[Application Volume Setup] is selected on the Audio setup menu in
step 3. Refer to “Audio Setup Operation” (page 33).
The volume level for each application can be adjusted.
Setting item: Radio / DVD / CD / Compress Media / NOKIA Music
/ iPod Music / iPod Video / AUX / AUX3 /
BLUETOOTH Audio
Setting contents: -14 to +14 (Initial setting: 0)
• Settable applications differ depending on the connected device and
settings.
Setup
Audio Setup
The parking brake must be engaged to access the Setup screen.
Attempting to access this screen while driving will display the
warning- Unable to operate while driving.
The following steps 1 to 5 are common operations to each
“Setting item” of Audio Setup. Refer to each section for details.
Adjusting the Balance/Fader
Turning Subwoofer ON/OFF
Adjusting the Subwoofer Level
Setting the Subwoofer Phase
Image area
01GB00ICS-X8.book Page 33 Wednesday, November 9, 2011 7:39 PM
