Alpine ICS-X8 User Manual

45-EN
01GB05ICS-X8.fm
ALPINE ICS-X8 68-13530Z91-A (EN)

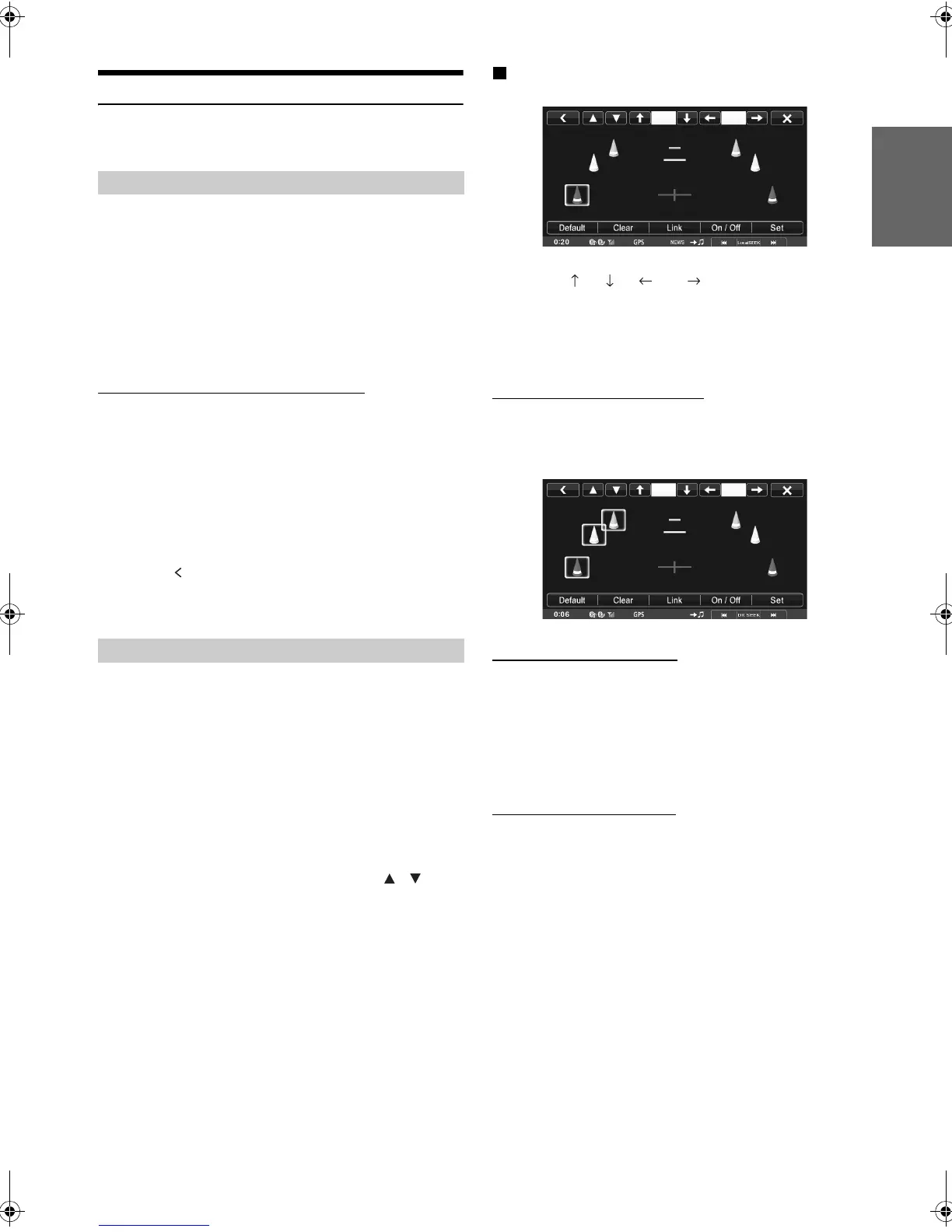

Camera Setting
Touch [Camera] on the Application setup menu in step 3. Refer to
“Application Setup Operation” (page 44).
With an optional camera connected, its video is output to the monitor.
When the camera is connected, set this item.
Setting item: Direct Camera
Setting contents: Off (Initial setting) / Rear
After selecting “Rear” in the “Direct Camera” setting,
touch of [Direct Camera], the following additional
items can be adjusted.
Switching video patterns for Rear camera
The video pattern can be changed when connected to HCE-C200R, etc.
Setting item: Guide Adjustment
1 Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
2 Touch [Back], [Panorama], [Corner], or [Top].
The view will change to the selected view.
• [Back] will not appear for the Front camera.
3 Touch [] to return to the previous screen.
• For an explanation of video patterns, see the camera Owner's
Manual.
If you select “Rear,” you can adjust the camera guide position.
Setting item: Guide Adjustment
1 Touch [Guide Adjustment].
The camera guide adjustment screen is displayed.
• If the video pattern is set to “Corner,” the camera guide will not
be displayed.
2 Touch [Adjust].
• If [Adjust] does not appear, proceed to step 3.
3 Touch the guide you intend to adjust.
Guide line can also be selected by touching [] [].
Display example for rear camera mode
4 Touch [], [], [] or [] to adjust the position
of the guide.
• Touching [Clear] clears adjustments and returns to the setting
before guide line alteration.
5 After the adjustment is completed, touch [Set].
Adjusting guides simultaneously
1 Touch [Link].
The 3 vertical guides of the currently-selected guide link
together, allowing them to be adjusted simultaneously.
Turning guide display On/Off
Turning the selected guide off.
1 Touch [On/Off].
The currently selected guide will turn off.
2 To turn the guide on, touch [On/Off] again.
• Guides that are turned off are still adjustable.
Returning guides to default.
1 Touch [Default].
A message window will appear.
2 Touch [OK].
Adjusted values will return to default settings.
Setting the Camera Input
Rear: Rear camera
Adjusting the Rear Camera Guide
01GB00ICS-X8.book Page 45 Wednesday, November 9, 2011 7:39 PM

Alpine ICS-X8 Specifications

General

MP3 playback	Yes
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WMA
Video formats supported	AVI, DIVX
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	AM, LW, MW
Preset stations quantity	30
Output power	200 W
RDS features	AF, EON, PTY, TA, TP
Product color	Black
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	2.0 channels
Equalizer bands quantity	9
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	100 dB
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FIN, FRE, ITA, NOR, POR, RUS, SWE
USB version	2.0
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP, SPP
USB ports quantity	2
Apple docking compatibility	Not supported
Cables included	USB
File format system	FAT 16/32
Power requirements	14.4V DC
Compatible products	iPod touch 4G/3G/2G/1G\\r iPod nano 6G/5G/4G/3G/2G/1G\\r iPod classic\\r iPod video\\r iPhone 4\\r iPhone 3GS\\r iPhone 3G\\r iPhone\\r Nokia 700, 701, 603, 808\\r Nokia N9, N8, E6, E7, X7, C6-01, C7
Operating temperature (T-T)	-20 - 60 °C

Weight and Dimensions

Weight	2600 g
Dimensions (WxDxH)	178 x 159 x 100 mm
