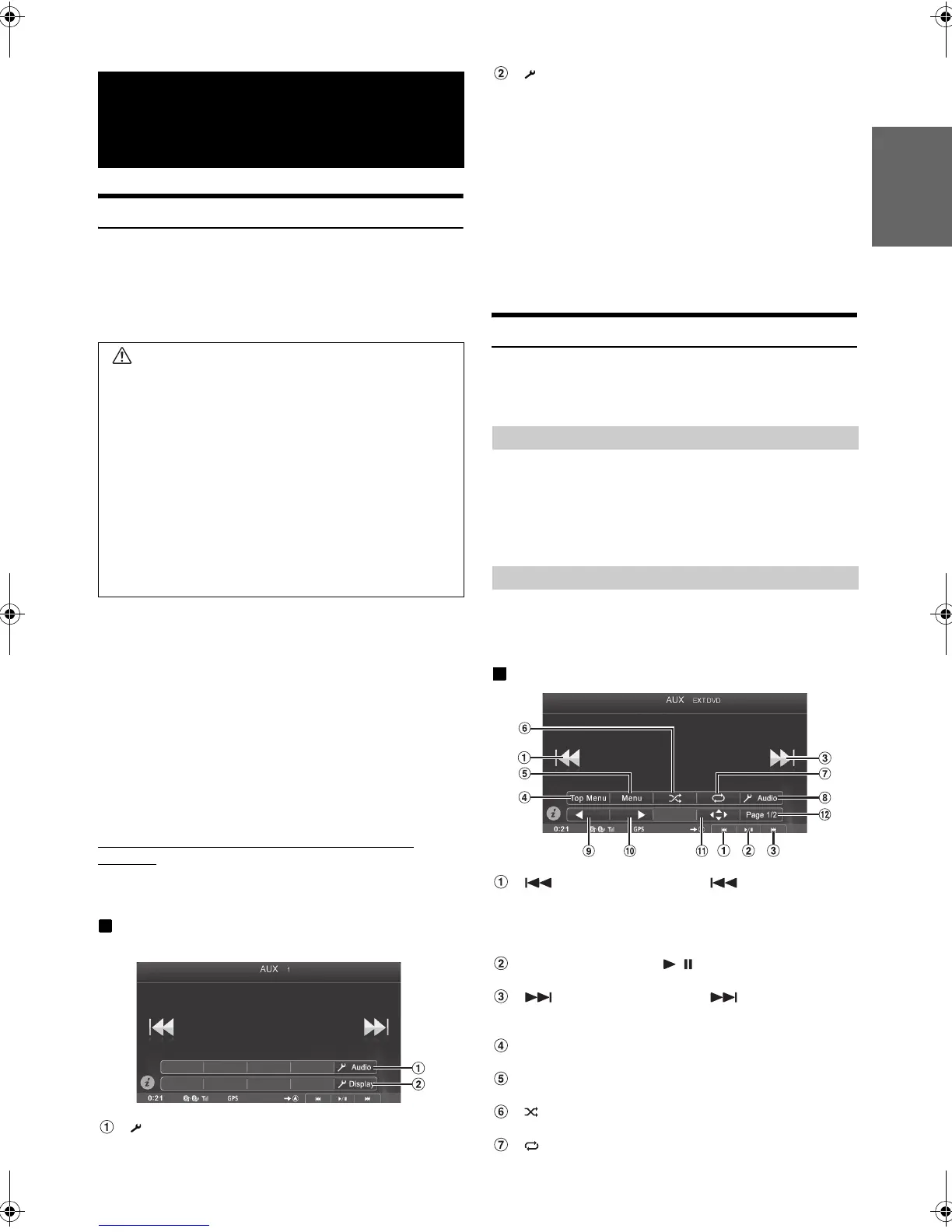

57-EN
01GB06ICS-X8.fm
ALPINE ICS-X8 68-13530Z91-A (EN)
Operating Auxiliary Devices (Optional)
To operate devices connected to the AUX terminals of ICS-X8, follow
the procedure described below.
Set AUX In to “On.” Refer to “Setting the AUX Mode” (page 46).
Depending on the connected unit, the onscreen buttons may not
work, or their operation may differ.
If you try to activate the auxiliary device while driving, the display
will show the warning-Picture off for your safety.
1
Press the Home button.
The Home screen is displayed.
2
Touch [AUX1]*
1
, [AUX2]*
1
or [AUX3]*
2
.
The AUX mode screen is displayed.
*
1
The name which is given as the mode name in “Setting the Primary
AUX Name” (page 46) and “Setting the Secondary AUX Name”
(page 46) is displayed.
*
2
When “Setting the AUX3” (page 47), AUX3 appears when setting
”AUX” only.
AUX Operation Screen Display During Video File
Playback
Touch the screen.
The AUX operation screen is displayed.
Example for AUX1, AUX2, AUX3, DVD, Game mode
display
[ Audio]
Calls up the Audio Setup screen. (See “Audio Setup
Operation” on page 33)
[ Display]
Calls up the Display Setup screen. (See “Display Setup
Operation” on page 38)
The operation screen changes to the visual screen in the
AUX mode for 5 seconds after an operation has been
performed. To hide the AUX operation screen, touch the
video display area.
Touch the display panel to display the operation screen
again.
Setting the AUX name for EXT.DVD, DVD-CHG, DVB-T, and TV
mode displays their individual operation switches and enables
operation. Refer to “Setting the Primary AUX Name” (page 46) and
“Setting the Secondary AUX Name” (page 46).
Operating an External DVD Player
To operate an External DVD player (Optional), set “Setting the Primary
AUX Name” (page 46) or “Setting the Secondary AUX Name”
(page 46) to “EXT.DVD.
1
Press the Home button.
The Home screen is displayed.
2
Touch [EXT.DVD].
The display shows the EXT. DVD mode screen.
When the external DVD player playback screen is displayed, you can
touch the screen to display the operation screen. For details on how to
operate, refer to the Owner’s Manual of the connected DVD player.
External DVD player display example 1/2 (Info mode)
[ ], Media Control button 1( )
Touch the switch to go back to the beginning of the current
chapter/track/file. Touch the switch once more to find the
beginning of the previous chapter/track/file. Touch and hold
to fast reverse.
Media Control button 2( / )
Switches between play and pause.
[ ], Media Control button 3( )
Touch the switch to advance to the beginning of the next
chapter/track/file. Touch and hold to fast forward.
[Top Menu]
Calls up the Top Menu screen.
[Menu]
Calls up the Menu screen.
[]
Starts/Stop M.I.X. play.
[]
Starts/Stop repeat play.
Auxiliary Device
(Optional)
WARNING
It is dangerous (and illegal in many states) for the
driver to watch TV/video while driving the vehicle. The
driver may be distracted from looking ahead and an
accident could occur.
Install the ICS-X8 correctly so that the driver cannot
watch TV/video unless the vehicle is stopped and the
emergency brake is applied.
If the ICS-X8 is not installed correctly, the driver will
be able to watch TV/video while driving the vehicle
and may be distracted from looking ahead and cause
an accident. The driver or other people could be
severely injured.
Change to the External DVD Mode
About the DVD Operation Screen
01GB00ICS-X8.book Page 57 Wednesday, November 9, 2011 7:39 PM
