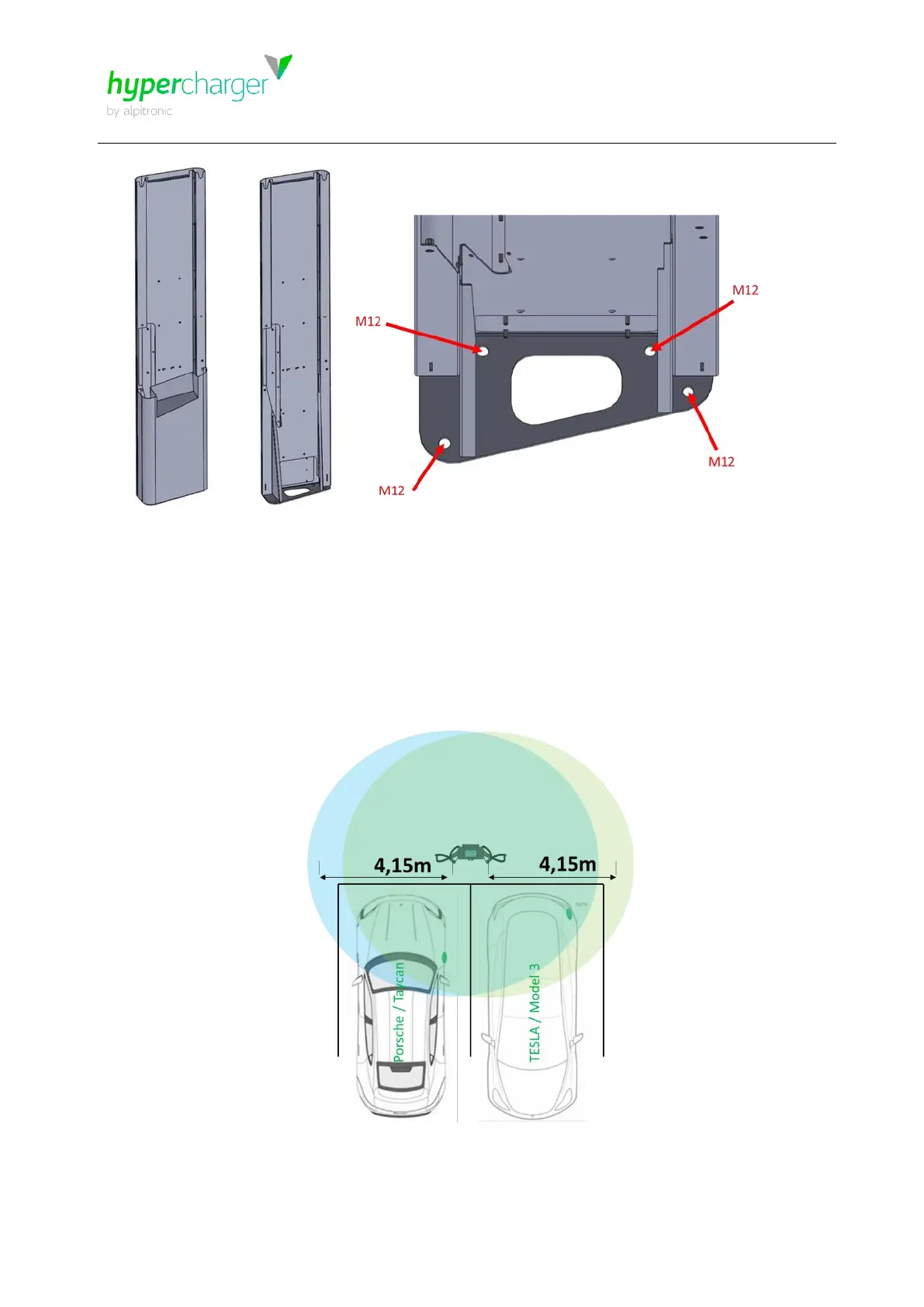

Figure 12: Mounting the Stand HYC_50
4.1.2. Charging cable lengths
In the standard configuration, the HYC_50 is equipped with a cable length of 2,7 m. If the
optionally available cable management is selected, the cable length is extended to approx.
4,45 m. Figure 13 shows the operating radius (4.15m) of the cables for the two DC outputs
of the HYC_50. Longer cable lengths can also be ordered as an option.
Figure 13: Cable length for the two DC outputs of the HYC_50 with cable management
