8 Maintenance

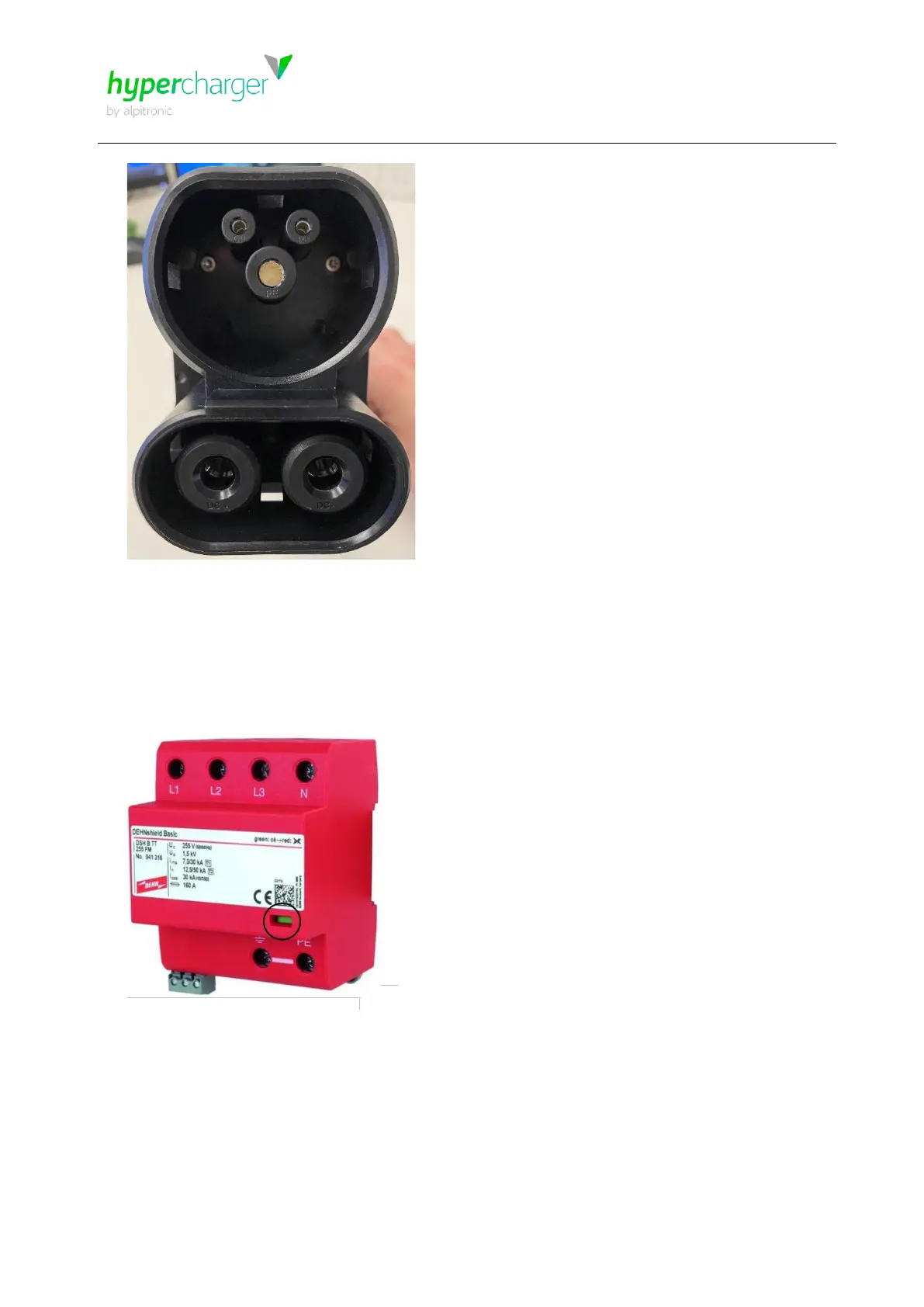

Figure 45: Charging plug contactors

8.8. Check overvoltage protection

Check the function display marked in the following figure. Green indicates proper function;

red indicates a defect.

Figure 46: Check of overvoltage protection
