Installation
Support--frame assembly
L31--113EN/01
5/6
06--2003
E ALSTOM

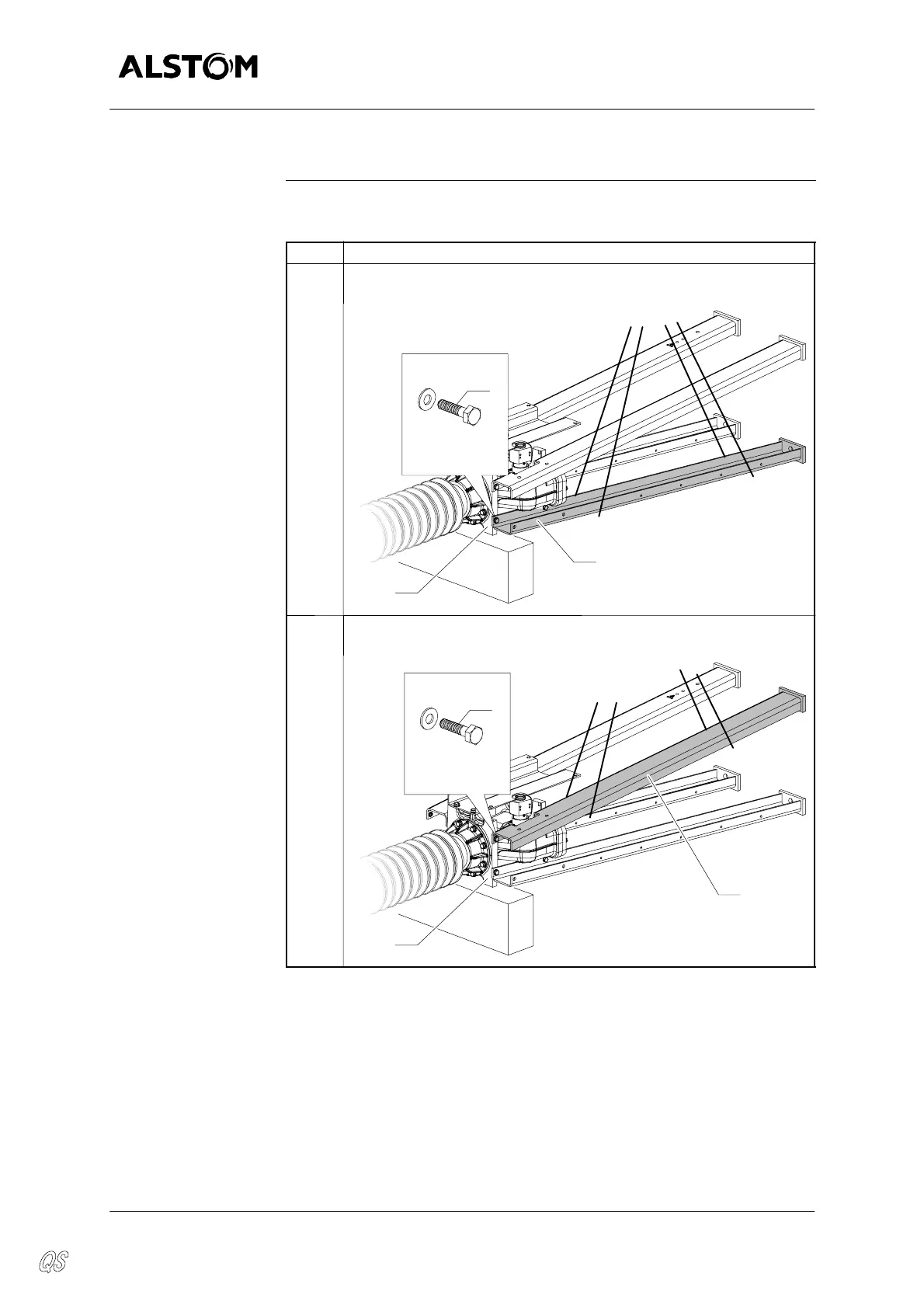

Frame--support assembly
Process
The table below gives the steps of installing the supports of the frame :
Step Action
1
With the aid of two flexible lifting straps, position the frame--support
(2) onto the housing (10) and fasten it with the use of the screws (7).
2
x2
H M16--35
18 daN.m
7
10
2
With the aid of two flexible lifting straps, position the frame--support
(3) onto the housing (10) and fasten it with the use of the screws (7).
3
10
x2
H M16--35
18 daN.m
7
Continued on next page.
To Next Page
